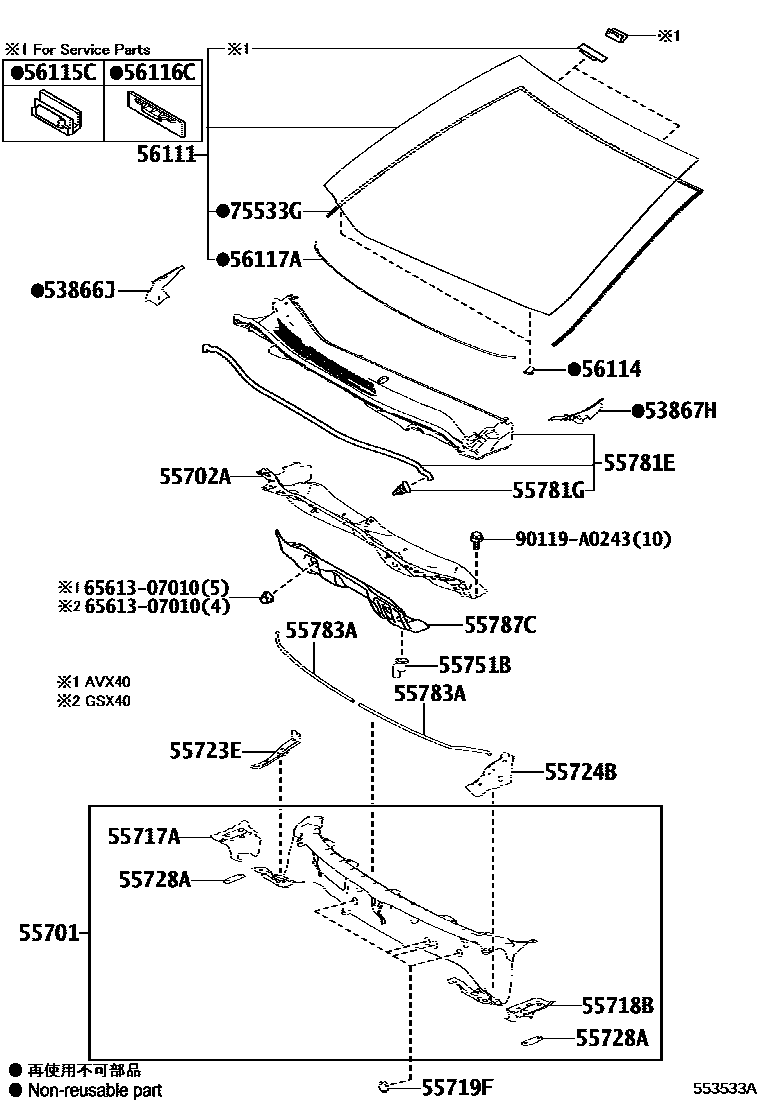

COWL PANEL & WINDSHIELD GLASS
53866JSEAL, FRONT FENDER TO COWL SIDE, RH
53867HSEAL, FRONT FENDER TO COWL SIDE, LH
55701PANEL SUB-ASSY, COWL
55702APANEL SUB-ASSY, COWL TOP, OUTER FRONT
55717APANEL, COWL TOP SIDE, INNER RH
55718BPANEL, COWL TOP SIDE, INNER LH
55719FPACKING, FRONT LOWER PANEL
55723EGUSSET, FRONT PANEL, RH
55724BGUSSET, FRONT PANEL, LH
55728AREINFORCEMENT, HOOD STOPPER
55751BHOSE, COWL WATER EXTRACT, NO.1
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55787CINSULATOR, COWL TOP PANEL, NO.1
56111GLASS, WINDSHIELD
CRUISE CONTROL-WITH(MICRO WAVE TYPE)
CRUISE CONTROL-WITH(MICRO WAVE TYPE)
CRUISE CONTROL-WITH(MICRO WAVE TYPE)
CRUISE CONTROL-WITH(MICRO WAVE TYPE)
56114RETAINER, WINDSHIELD GLASS
56115CSTOPPER, WINDSHIELD GLASS
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=1347
*D,L=1347,CRUISE CONTROL-WITH(MICRO WAVE TYPE)
75533GMOULDING, WINDSHIELD, OUTSIDE
6561307010STRIP, SIDE GATE HINGE, INSIDE
main65613-07010
90119A0243
main90119-A0243
23 parts on this diagram · 1 diagram in section
