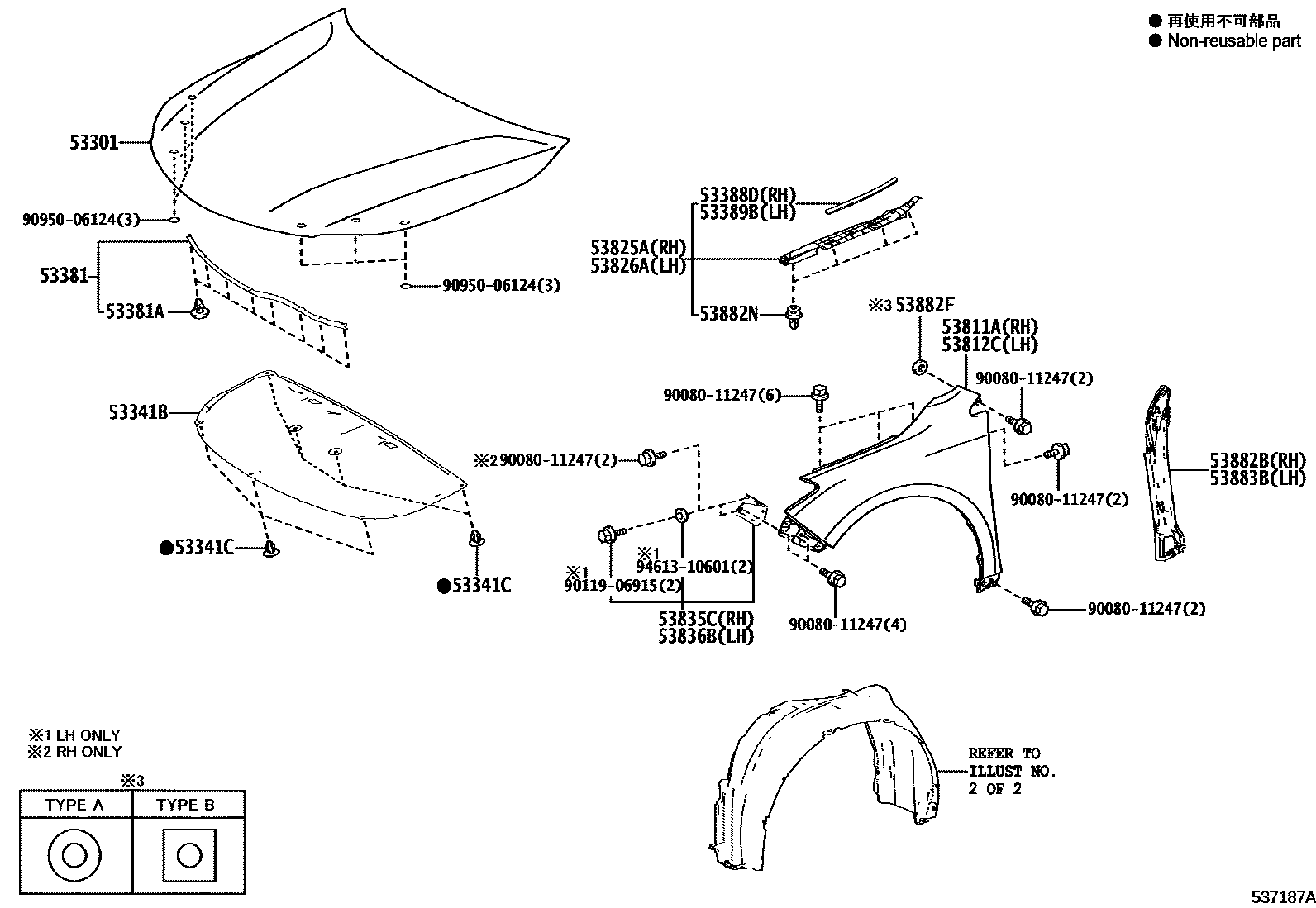

HOOD & FRONT FENDER
53341CCLIP(FOR HOOD INSULATOR)
53381SEAL, HOOD TO RADIATOR SUPPORT
53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)
53388DSEAL, HOOD TO FRONT FENDER, RH
53389BSEAL, HOOD TO FRONT FENDER, LH
53811APANEL, FRONT FENDER, RH
53812CPANEL, FRONT FENDER, LH
53825APROTECTOR, FRONT FENDER, UPPER RH
53826APROTECTOR, FRONT FENDER, UPPER LH
53835CBRACKET, FRONT SIDE PANEL, RH
53836BBRACKET, FRONT SIDE PANEL, LH
53882BSEAL, FRONT FENDER, RH
53882FSEAL, FRONT FENDER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
53882NCLIP(FOR FRONT FENDER SEAL)
53883BSEAL, FRONT FENDER, LH
9008011247
main90080-11247
9011906915
main90119-06915
9095006124
main90950-06124
9461310601
main94613-10601
21 parts on this diagram · 4 diagrams in section
