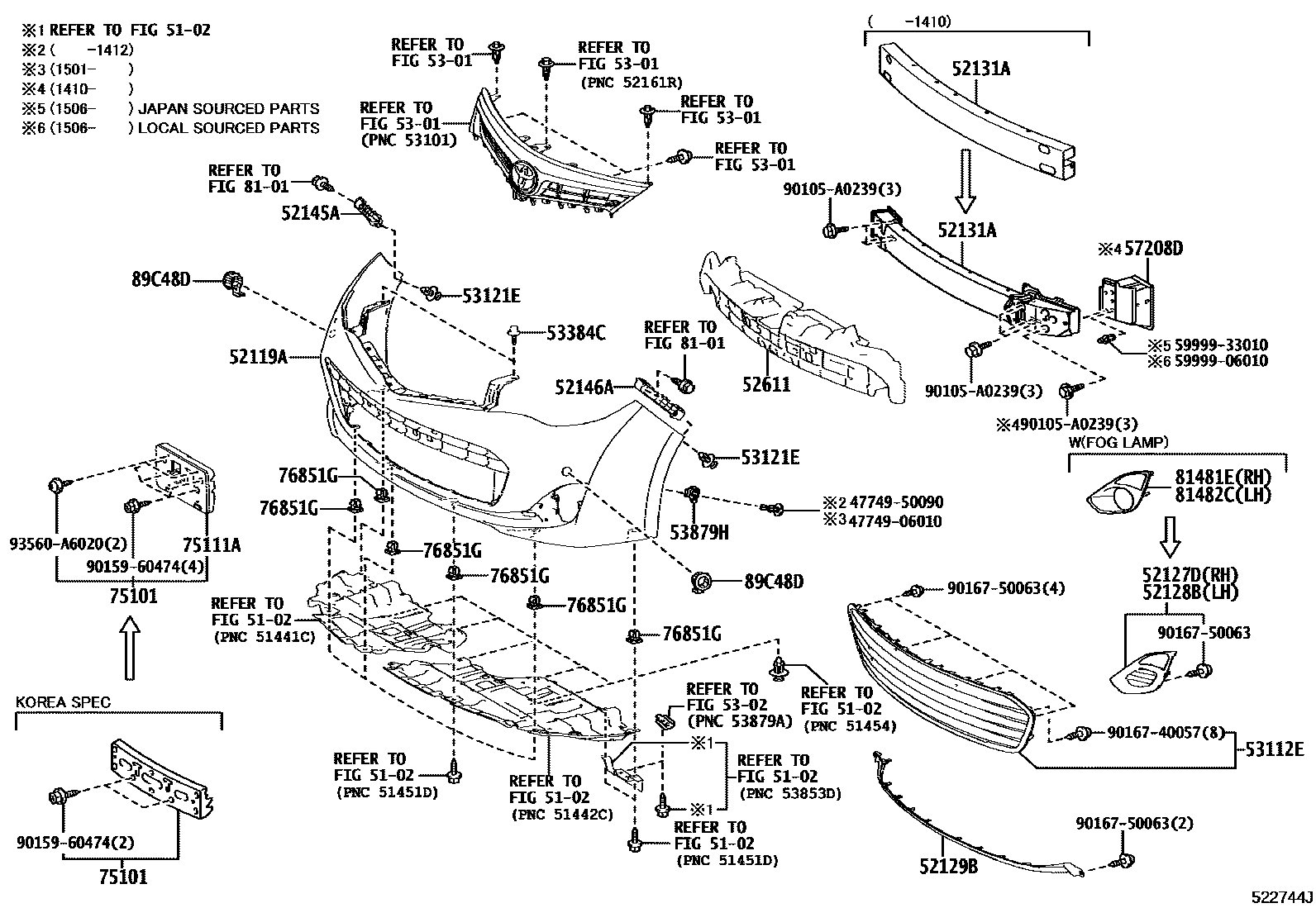

FRONT BUMPER & BUMPER STAY

0001 1 0002 1

5102

52119ACOVER, FRONT BUMPER

main52119-07910iAVX40,GSX40201210-201510

PAINT REQ.

main52119-07914iAVX40,GSX40201510

PAINT REQ.

52127DCOVER, FRONT BUMPER HOLE, RH

main52030-07050iAVX40,GSX40..XLE,XLEPR201210-201510

52128BCOVER, FRONT BUMPER HOLE, LH

main52040-07030iAVX40,GSX40..XLE,XLEPR201210-201510

52129BCOVER, FRONT BUMPER, LOWER

main52129-07010iAVX40,GSX40201210-201510

52131AREINFORCEMENT, FRONT BUMPER

main52021-07010iAVX40,GSX40201210-201410

main52021-07020iAVX40,GSX40201410-201509

sub52021-07021

main52021-07050iAVX40,GSX40201510-201804

52145ASTAY, FRONT BUMPER, NO.2 RH

main52145-07030iAVX40,GSX40201210-201510

52146ASTAY, FRONT BUMPER, NO.2 LH

main52146-07030iAVX40,GSX40201210-201510

52611ABSORBER, FRONT BUMPER ENERGY

main52611-07040iAVX40,GSX40201210-201410

main52611-07060iAVX40,GSX40201410-201510

main52611-07070iAVX40,GSX40201510

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53102-07011iAVX40,GSX40201210-201510

PLATED

main53102-07040iAVX40,GSX40..LIMD,XLE,XLEPR201510

PLATED

main53102-07060iGSX40..XLETO201510

PLATED

53121ECLIP(FOR FRONT BUMPER), NO.1

main90467-05090-B1iAVX40,GSX40201210-201510

DK.GRAY

sub90467-05090

53384CCUSHION, HOOD, CENTER

main53384-75010iAVX40,GSX40201210-201510

53879HRETAINER, FRONT FENDER LINER

main53879-06100iAVX40,GSX40201501-201510

main53879-30040iAVX40,GSX40201210-201412

57208DSPACER SUB-ASSY, FRONT BUMPER SUPPORT, NO.2

main57208-06020iAVX40,GSX40201510

75101BRACKET SUB-ASSY, FRONT LICENSE PLATE

main75101-07030

main75101-07050

main75101-07060

main75101-07080

75111ABRACKET, FRONT LICENSE PLATE

76851GGROMMET, SCREW, NO.1

main90189-06193iAVX40,GSX40201210-201705

main90189-06237iAVX40,GSX40201705-201804

8101

81481ECOVER, FOG LAMP, RH

main52127-07060iAVX40,GSX40..LIMD,XLETO201210-201510

81482CCOVER, FOG LAMP, LH

main52128-07040iAVX40,GSX40..LIMD,XLETO201210-201510

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

4774906010CLIP, PIN HOLD

main47749-06010

4774950090CLIP, PIN HOLD

main47749-50090

5999906010CLAMP(FOR FLOOR MAT)

main59999-06010

5999933010CLAMP(FOR FLOOR MAT)

main59999-33010

90105A0239

main90105-A0239

9015960474

main90159-60474

9016740057

main90167-40057

9016750063

main90167-50063

93560A6020

main93560-A6020

32 parts on this diagram · 2 diagrams in section
