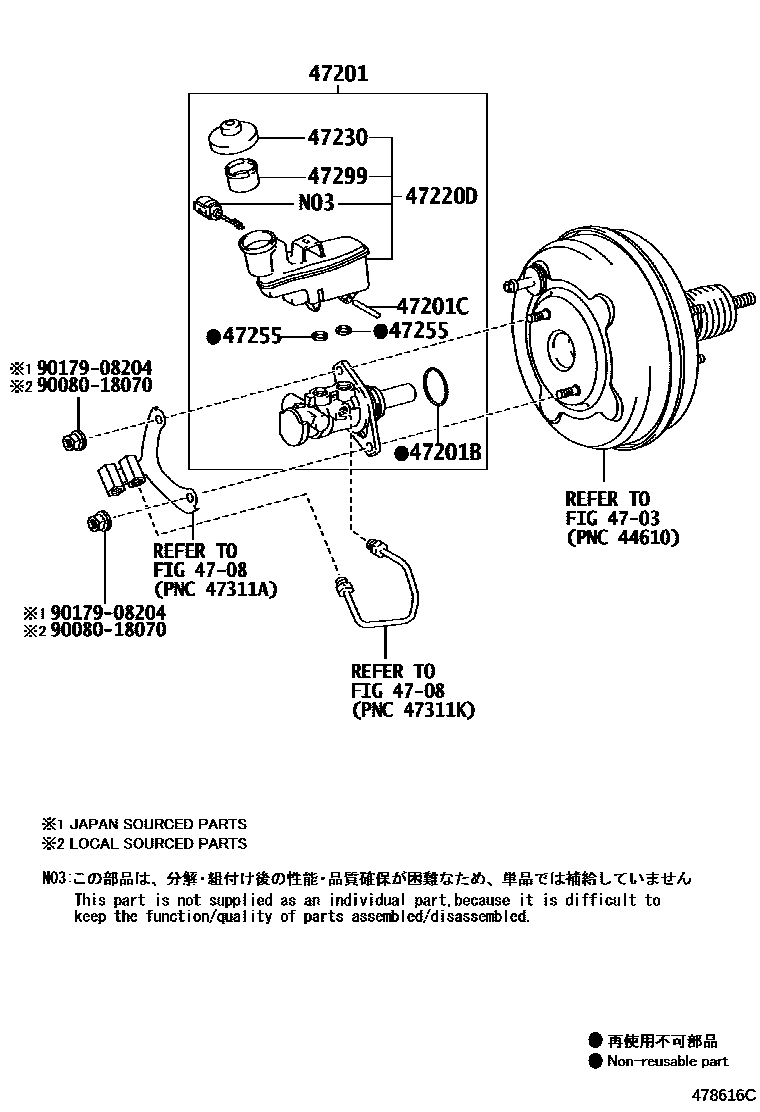

BRAKE MASTER CYLINDER

0001 1 0002 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-06443iGSX40201210-201510

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGSX40201210-201510

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGSX40201210-201510

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-06180iGSX40201210-201510

main47220-33120iAVX40201211-201510

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-01030iGSX40201210-201412

sub47230-01031

main47230-01031iGSX40201412-201510

main47230-20140iAVX40201211-201510

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSX40201210-201510

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-06180iGSX40201412-201510

main47299-25010iGSX40201210-201412

9008018070

main90080-18070

9017908204

main90179-08204

11 parts on this diagram · 2 diagrams in section
