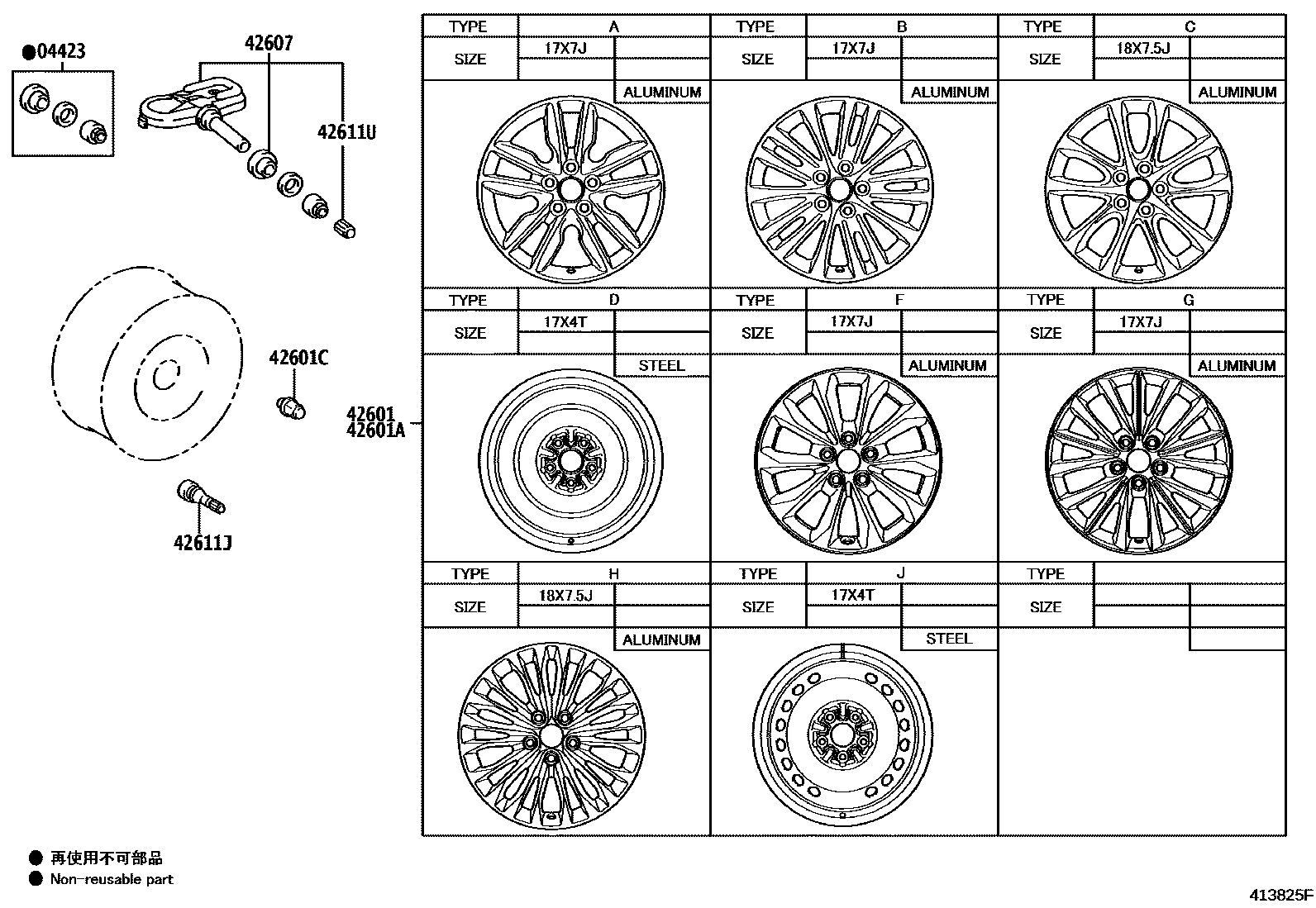

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X7J, #,TIRE & DISC WHEEL-215/55R17 ALL SEASON TIRE ALUMINUM,TYPE A:REFER ILLUST.
17X7J, #,TYPE A:REFER ILLUST.
17X7J, #,TYPE B:REFER ILLUST.
18X7.5J, #,TYPE C:REFER ILLUST.
18X7.5J,TYPE C:REFER ILLUST.
17X7J, #,TYPE F:REFER ILLUST.
18X7.5J,TYPE H:REFER ILLUST.
17X7J, #,TIRE & DISC WHEEL-P215/55R17 7J ALL SEASON TIRE,TYPE G:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
18X7.5J, #,TYPE H:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X4T,TYPE D:REFER ILLUST.
17X4T,TYPE J:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
sub90942-A1009
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
KOREA SPEC
42611JVALVE (FOR TUBELESS TIRE SPARE)
42611UCAP, TIRE VALVE
7 parts on this diagram · 2 diagrams in section
