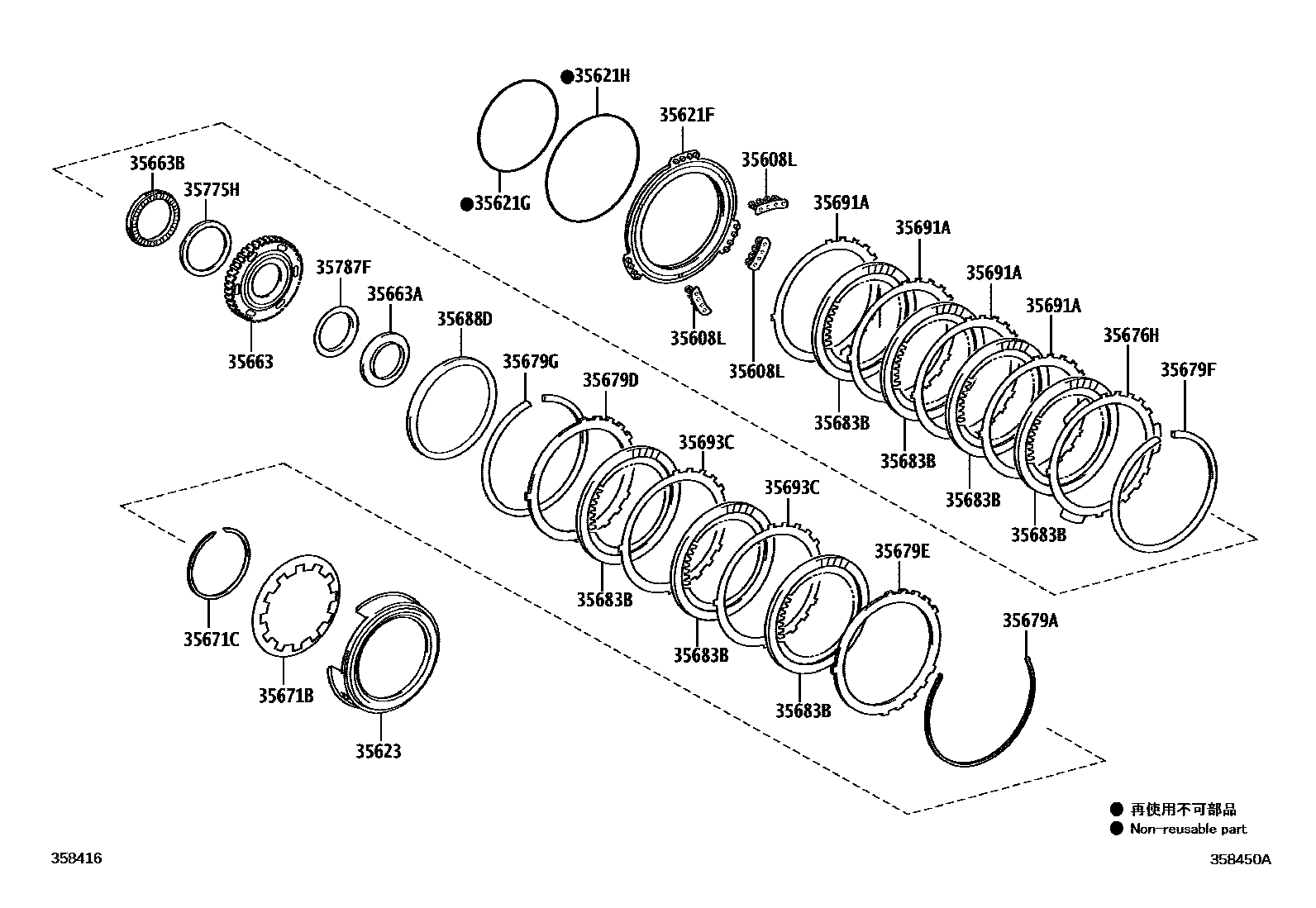

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)
35608LSPRING SUB-ASSY, 2ND BRAKE PISTON RETURN
*325
*324
35621FPISTON, BRAKE, NO.1
*325
*324
35621GRING, O (FOR BRAKE PISTON INNER)
*324
*325
35621HRING, O (FOR BRAKE PISTON OUTER)
*325
*324
35623PISTON, BRAKE, NO.3
*325
*325,(J),*324
*324
35663HUB, BRAKE NO.3
35663ABEARING, THRUST NEEDLE ROLLER, NO.1
*324
*324
*325
35663BBEARING, THRUST NEEDLE ROLLER, NO.2
*324
*324
*325
*325
35671BSPRING, BRAKE PISTON RETURN
*325
*324
35671CRING, SNAP (FOR BRAKE PISTON RETURN SPRING)
*324
*325
35676HFLANGE, BRAKE, NO.1
T=3.0,MARK 30,*325
T=3.1,MARK 31,*325
T=3.2,MARK 32,*325
T=3.3,MARK 33,*325
T=3.4,MARK 34,*325
T=3.5,MARK 35,*325
T=3.0,MARK 30,*324
T=3.1,MARK 31,*324
T=3.2,MARK 32,*324
T=3.3,MARK 33,*324
T=3.4,MARK 34,*324
T=3.5,MARK 35,*324
T=3.6,MARK 36,*324
35679ARING, HOLE SNAP(FOR BRAKE FLANGE)
*324
*325
35679EFRANGE, BRAKE, NO.3
T=3.8,MARK 38,*325
T=3.9,MARK 39,*325
T=4.0,MARK 40,*325
T=4.1,MARK 41,*325
T=4.2,MARK 42,*325
T=4.3,MARK 43,*325
T=3.8,MARK 38,*324
T=3.9,MARK 39,*324
T=4.0,MARK 40,*324
T=4.1,MARK 41,*324
T=4.2,MARK 42,*324
T=4.3,MARK 43,*324
T=4.4,MARK 44,*324
T=4.5,MARK 45,*324
T=3.7,MARK 37,*324
35679FRING, SNAP(FOR BRAKE FLANGE)
35679GRING, SNAP (FOR RAKE FLANGE NO.3)
35683BDISC, BRAKE, NO.3
*325
*325
*324
35688DSTOPPER, BRAKE SNAP RING
*324
*325
35691APLATE, BRAKE, NO.1
*325
*324
35693CPLATE, BRAKE, NO.3
*325
*324
35775HRACE, THRUST BEARING, NO.5
*325
*324
*324
35787FRACE, THRUST BEARING, NO.2
*325
*325
*324
*324
*324
22 parts on this diagram · 1 diagram in section
