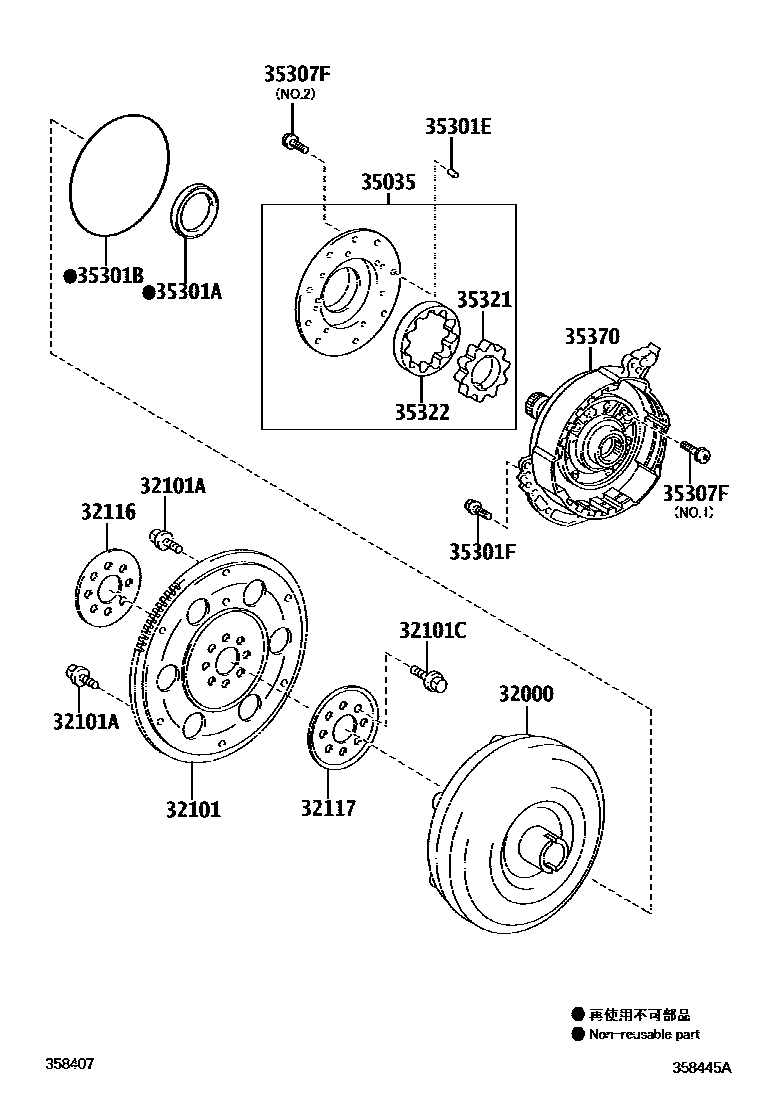

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)
32000CONVERTER ASSY, TORQUE
32101GEAR SUB-ASSY, DRIVE PLATE & RING
(L)
(J)
32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
*9-1.25PX12.4-7.3,BLACK
*9-1.25PX12.4-8.4,SILVER WHITE
32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)
*10-1.25PX18-13
32116SPACER, DRIVE PLATE, FRONT
32117SPACER, DRIVE PLATE, REAR
35035BODY SUB-ASSY, FR OIL PUMP & GEAR
*325,(L)
*324
*325,(J)
35301ASEAL, OIL (FOR FRONT OIL PUMP)
*325,(J)
*324
*325,(L)
35301BRING, O (FOR FRONT OIL PUMP BODY)
*325
*324
35301EPIN, STRAIGHT (FOR FRONT OIL PUMP)
*324
*325,(J)
*325,(L)
35301FBOLT (FOR FRONT OIL PUMP SETTING)
*8-1.25PX35-22,*325
*8-1.25PX35-22,*324
35307FBOLT (FOR STATOR SHAFT)
*324,NO.1
*325,NO.1,(J)
*324,NO.2
*325,NO.2,(J)
*325,NO.2,(L)
*325,NO.1,(L)
35321GEAR, FRONT OIL PUMP DRIVE
T=11.567,MARK 1,*325,(L)
T=11.567,MARK 2,*325,(L)
T=11.567,MARK 3,*325,(L)
T=11.567,MARK 4,*325,(L)
T=11.567,MARK 5,*325,(L)
T=11.567,MARK 1,*325,(J)
T=11.567,MARK 1,*324
T=11.567,MARK 2,*325,(J)
T=11.567,MARK 2,*324
T=11.567,MARK 3,*325,(J)
T=11.567,MARK 3,*324
T=11.567,MARK 4,*324
T=11.567,MARK 4,*325,(J)
T=11.567,MARK 5,*325,(J)
T=11.567,MARK 5,*324
35322GEAR, FRONT OIL PUMP DRIVEN
T=11.567,MARK 1,*325,(L)
T=11.567,MARK 2,*325,(L)
T=11.567,MARK 3,*325,(L)
T=11.567,MARK 4,*325,(L)
T=11.567,MARK 5,*325,(L)
T=11.567,MARK 1,*324
T=11.567,MARK 1,*325,(J)
T=11.567,MARK 2,*324
T=11.567,MARK 2,*325,(J)
T=11.567,MARK 3,*324
T=11.567,MARK 3,*325,(J)
T=11.567,MARK 4,*325,(J)
T=11.567,MARK 4,*324
T=11.567,MARK 5,*324
T=11.567,MARK 5,*325,(J)
35370SHAFT ASSY, STATOR
*325,(L)
*324
*325,(J)
15 parts on this diagram · 1 diagram in section
