CRANKSHAFT & PISTON

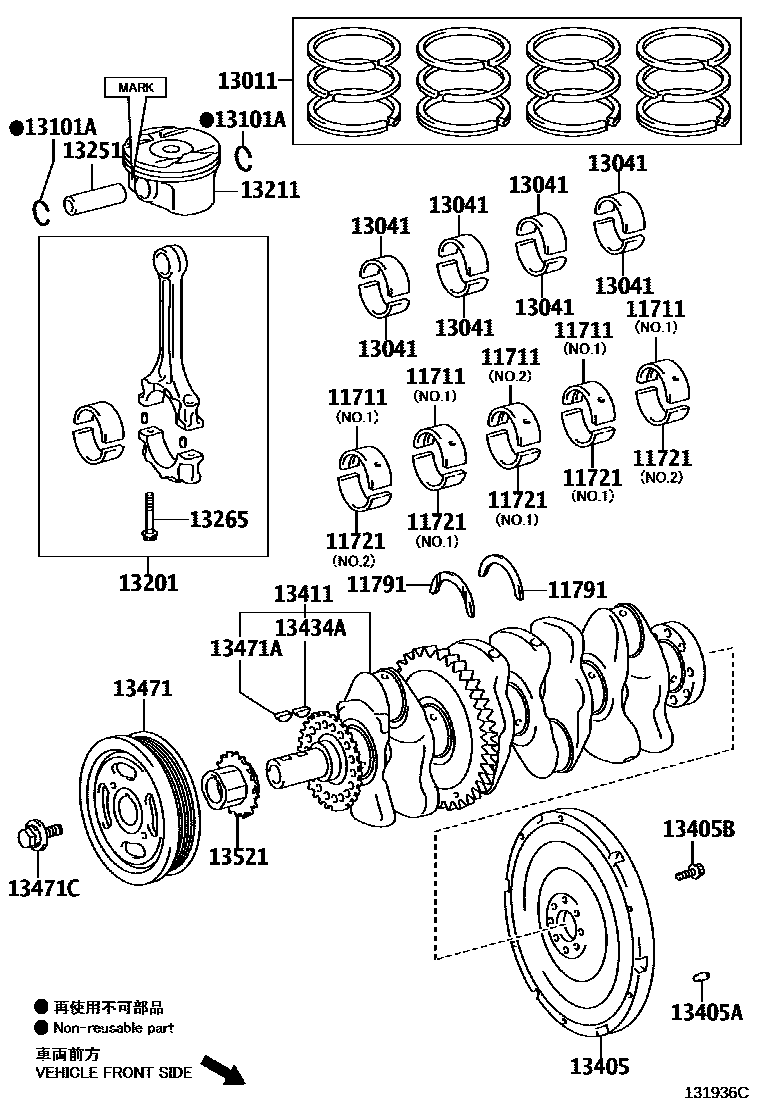

Parts diagram
11711BEARING, CRANKSHAFT
main11071-0P051-01i201210-201503
MARK1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-02i201210-201503
MARK2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-03i201210-201503
MARK3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-04i201210-201503
MARK4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P051-05i201210-201503
MARK5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-01i201503-201510
MARK 1,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-02i201503-201510
MARK 2,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-03i201503-201510
MARK 3,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-04i201503-201510
MARK 4,NO.2,(L):REFER R/M
sub11071-0P060
main11071-0P060-05i201503-201510
MARK 5,NO.2,(L):REFER R/M
sub11071-0P060
main11071-31031-01i201210-201502
MARK1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-02i201210-201502
MARK2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-03i201210-201502
MARK3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-04i201210-201502
MARK4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31031-05i201210-201502
MARK5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-01i201503-201510
MARK 1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-02i201503-201510
MARK 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-03i201503-201510
MARK 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-04i201503-201510
MARK 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-05i201503-201510
MARK 5,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-A1i201510
MARK UPPER 1 LOWER 1,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-B2i201510
MARK UPPER 2 LOWER 2,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-C3i201510
MARK UPPER 3 LOWER 3,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-D4i201510
MARK UPPER 4 LOWER 4,NO.2,(J):REFER R/M
sub11071-31060
main11071-31060-E5i201510
MARK UPPER 5 LOWER 5,NO.2,(J):REFER R/M
sub11071-31060
main11701-0P051-01i201210-201503
MARK1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-02i201210-201503
MARK2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-03i201210-201503
MARK3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-04i201210-201503
MARK4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P051-05i201210-201503
MARK5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-01i201503-201510
MARK 1,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-02i201503-201510
MARK 2,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-03i201503-201510
MARK 3,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-04i201503-201510
MARK 4,NO.1,(L):REFER R/M
sub11701-0P060
main11701-0P060-05i201503-201510
MARK 5,NO.1,(L):REFER R/M
sub11701-0P060
main11701-31090-01i201210-201502
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-02i201210-201502
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-03i201210-201502
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-04i201210-201502
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31090-05i201210-201502
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-01i201503-201510
MARK 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-02i201503-201510
MARK 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-03i201503-201510
MARK 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-04i201503-201510
MARK 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-05i201503-201510
MARK 5,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-A1i201510
MARK UPPER 1 LOWER 1,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-B2i201510
MARK UPPER 2 LOWER 2,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-C3i201510
MARK UPPER 3 LOWER 3,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-D4i201510
MARK UPPER 4 LOWER 4,NO.1,(J):REFER R/M
sub11701-31100
main11701-31100-E5i201510
MARK UPPER 5 LOWER 5,NO.1,(J):REFER R/M
sub11701-31100
main11711-0V030-01i201310-201510
MARK 1,(L),*288,NO.1,*RRM
main11711-0V030-02i201310-201510
MARK 2,(L),*288,NO.1,*RRM
main11711-0V030-03i201310-201510
MARK 3,(L),*288,NO.1,*RRM
main11711-0V030-04i201310-201510
MARK 4,(L),*288,NO.1,*RRM
main11711-36040-01i201310-201510
MARK 1,*288,NO.2,REFER R/M
main11711-36040-01i201211-201510
MARK 1,*107,NO.2,REFER R/M
main11711-36040-01i201510
MARK 1,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11711-36040-02i201310-201510
MARK 2,*288,NO.2,REFER R/M
main11711-36040-02i201211-201510
MARK 2,*107,NO.2,REFER R/M
main11711-36040-02i201510
MARK 2,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11711-36040-03i201510
MARK 3,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11711-36040-03i201211-201510
MARK 3,*107,NO.2,REFER R/M
main11711-36040-03i201310-201510
MARK 3,*288,NO.2,REFER R/M
main11711-36040-04i201211-201510
MARK 4,*107,NO.2,REFER R/M
main11711-36040-04i201310-201510
MARK 4,*288,NO.2,REFER R/M
main11711-36040-04i201510
MARK 4,*288,NO.2,REFER R/M,*107,NO.2,REFER R/M
main11711-36050-01i201510
MARK 1,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
main11711-36050-01i201310-201510
MARK 1,(J),*288,NO.1,*RRM
main11711-36050-01i201211-201510
MARK 1,*107,NO.1,REFER R/M
main11711-36050-02i201310-201510
MARK 2,(J),*288,NO.1,*RRM
main11711-36050-02i201211-201510
MARK 2,*107,NO.1,REFER R/M
main11711-36050-02i201510
MARK 2,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
main11711-36050-03i201310-201510
MARK 3,(J),*288,NO.1,*RRM
main11711-36050-03i201510
MARK 3,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
main11711-36050-03i201211-201510
MARK 3,*107,NO.1,REFER R/M
main11711-36050-04i201211-201510
MARK 4,*107,NO.1,REFER R/M
main11711-36050-04i201310-201510
MARK 4,(J),*288,NO.1,*RRM
main11711-36050-04i201510
MARK 4,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
main11721-0V030-01i201310-201510
MARK 1,(L),*288,NO.1,*RRM
main11721-0V030-02i201310-201510
MARK 2,(L),*288,NO.1,*RRM
main11721-0V030-03i201310-201510
MARK 3,(L),*288,NO.1,*RRM
main11721-0V030-04i201310-201510
MARK 4,(L),*288,NO.1,*RRM
main11721-36040-01i201510
MARK 1,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11721-36040-01i201211-201510
MARK 1,*107,NO.2,REFER R/M
main11721-36040-01i201310-201510
MARK 1,*288,NO.2,REFER R/M
main11721-36040-02i201310-201510
MARK 2,*288,NO.2,REFER R/M
main11721-36040-02i201510
MARK 2,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11721-36040-02i201211-201510
MARK 2,*107,NO.2,REFER R/M
main11721-36040-03i201510
MARK 3,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11721-36040-03i201310-201510
MARK 3,*288,NO.2,REFER R/M
main11721-36040-03i201211-201510
MARK 3,*107,NO.2,REFER R/M
main11721-36040-04i201211-201510
MARK 4,*107,NO.2,REFER R/M
main11721-36040-04i201310-201510
MARK 4,*288,NO.2,REFER R/M
main11721-36040-04i201510
MARK 4,*107,NO.2,REFER R/M,*288,NO.2,REFER R/M
main11721-36050-01i201510
MARK 1,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
main11721-36050-01i201211-201510
MARK 1,*107,NO.1,REFER R/M
main11721-36050-01i201310-201510
MARK 1,(J),*288,NO.1,*RRM
main11721-36050-02i201211-201510
MARK 2,*107,NO.1,REFER R/M
main11721-36050-02i201310-201510
MARK 2,(J),*288,NO.1,*RRM
main11721-36050-02i201510
MARK 2,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
main11721-36050-03i201211-201510
MARK 3,*107,NO.1,REFER R/M
main11721-36050-03i201310-201510
MARK 3,(J),*288,NO.1,*RRM
main11721-36050-03i201510
MARK 3,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
main11721-36050-04i201211-201510
MARK 4,*107,NO.1,REFER R/M
main11721-36050-04i201310-201510
MARK 4,(J),*288,NO.1,*RRM
main11721-36050-04i201510
MARK 4,(J),*288,NO.1,*RRM,*107,NO.1,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
main11791-0V010i201310-201510
STD,*288
main11791-36010i201211-201408
STD,*107
main11791-36020i201408-201510
STD,*107
13011RING SET, PISTON
main13011-0P040i201210-201507
STD
main13011-0P060i201507-201510
STD
main13011-36030i201211-201212
STD,*107
sub13011-36070
main13011-36070i201212-201401
STD,*107
sub13011-36071
main13011-36070i201310-201402
STD,*288
sub13011-36071
main13011-36071i201402-201407
STD,*107
main13011-36071i201403-201603
STD,*288
main13011-36120i201407-201510
STD,*107
sub13011-36170
main13011-36120i201603
STD,*288
sub13011-36170
13041BEARING, CONNECTING ROD
main13041-0P081-01i201510-201605
MARK1,REFER R/M
sub13041-0P090
main13041-0P081-01i201210-201510
MARK1,(L):REFER R/M
sub13041-0P090
main13041-0P081-02i201210-201510
MARK2,(L):REFER R/M
sub13041-0P090
main13041-0P081-02i201510-201605
MARK2,REFER R/M
sub13041-0P090
main13041-0P081-03i201210-201510
MARK3,(L):REFER R/M
sub13041-0P090
main13041-0P081-03i201510-201605
MARK3,REFER R/M
sub13041-0P090
main13041-0P081-04i201210-201510
MARK4,(L):REFER R/M
sub13041-0P090
main13041-0P081-04i201510-201605
MARK4,REFER R/M
sub13041-0P090
main13041-0P090-01i201606
MARK 1,(L):REFER R/M
main13041-0P090-02i201606
MARK 2,(L):REFER R/M
main13041-0P090-03i201606
MARK 3,(L):REFER R/M
main13041-0P090-04i201606
MARK 4,(L):REFER R/M
main13041-31100-01i201606
MARK 1,(J):REFER R/M
main13041-31100-02i201606
MARK 2,(J):REFER R/M
main13041-31100-03i201606
MARK 3,(J):REFER R/M
main13041-31100-04i201606
MARK 4,(J):REFER R/M
main13281-0V010-01i201310-201604
MARK 1,*288:REFER R/M
sub13281-0V011
main13281-0V010-02i201310-201604
MARK 2,*288:REFER R/M
sub13281-0V011
main13281-0V010-03i201310-201604
MARK 3,*288:REFER R/M
sub13281-0V011
main13281-0V011-01i201605
MARK 1,*288:REFER R/M
main13281-0V011-02i201605
MARK 2,*288:REFER R/M
main13281-0V011-03i201605
MARK 3,*288:REFER R/M
main13281-36020-01i201211-201312
MARK 1,*107:REFER R/M
sub13281-36021
main13281-36020-02i201211-201312
MARK 2,*107:REFER R/M
sub13281-36021
main13281-36020-03i201211-201312
MARK 3,*107:REFER R/M
sub13281-36021
main13281-36021-01i201401-201510
MARK 1,*107:REFER R/M
main13281-36021-02i201401-201510
MARK 2,*107:REFER R/M
main13281-36021-03i201401-201510
MARK 3,*107:REFER R/M
13101PISTON SUB-ASSY, W/PIN
main13101-0P053i201210-201510
STD
sub13101-31092
13101ARING, HOLE SNAP(FOR PISTON PIN)
main90520-22025i201310-201510
*288
main90520-22025i201211-201510
*107
main90520-22025i201510
*107,*288
main90520-A0004i201210-201510
13201ROD SUB-ASSY, CONNECTING
main13201-09830i201210-201606
(L)
sub13201-09831
main13201-09831i201606
(L)
sub13201-39137
main13201-39135-A0i201210-201605
MARK A,(J),REFER R/M
sub13201-39135
sub13201-39137
main13201-39135-B0i201210-201605
MARK B,(J),REFER R/M
sub13201-39135
sub13201-39137
main13201-39135-C0i201210-201605
MARK C,(J),REFER R/M
sub13201-39135
sub13201-39137
main13201-39137-A0i201606
MARK A,(J),REFER R/M
main13201-39137-B0i201606
MARK B,(J),REFER R/M
main13201-39137-C0i201606
MARK C,(J),REFER R/M
main13201-39225-A0i201310-201401
MARK A,*288:REFER R/M
sub13201-39226
main13201-39225-A0i201211-201401
MARK A,*107:REFER R/M
sub13201-39226
main13201-39225-B0i201211-201401
MARK B,*107:REFER R/M
sub13201-39226
main13201-39225-B0i201310-201401
MARK B,*288:REFER R/M
sub13201-39226
main13201-39225-C0i201211-201401
MARK C,*107:REFER R/M
sub13201-39226
main13201-39225-C0i201310-201401
MARK C,*288:REFER R/M
sub13201-39226
main13201-39226-A0i201401-201510
MARK A,*288:REFER R/M,*107:REFER R/M
main13201-39226-A0i201510
MARK A,*288:REFER R/M,*107,REFER R/M
main13201-39226-B0i201510
MARK B,*288:REFER R/M,*107,REFER R/M
main13201-39226-B0i201401-201510
MARK B,*288:REFER R/M,*107:REFER R/M
main13201-39226-C0i201510
MARK C,*288:REFER R/M,*107,REFER R/M
main13201-39226-C0i201401-201510
MARK C,*288:REFER R/M,*107:REFER R/M
13211PISTON
main13211-36060-A0i201310-201602
MARK A,*288:REFER R/M
main13211-36060-A0i201211-201407
MARK A,*107,MARK 36060,*RRM
main13211-36060-B0i201310-201602
MARK B,*288:REFER R/M
main13211-36060-B0i201211-201407
MARK B,*107,MARK 36060,*RRM
main13211-36060-C0i201310-201602
MARK C,*288:REFER R/M
main13211-36060-C0i201211-201407
MARK C,*107,MARK 36060,*RRM
main13211-36100-A0i201603
MARK A,*288:REFER R/M
main13211-36100-A0i201510
MARK A,*107:REFER R/M
main13211-36100-A0i201407-201510
MARK A,*107,MARK 36100,*RRM
main13211-36100-B0i201603
MARK B,*288:REFER R/M
main13211-36100-B0i201407-201510
MARK B,*107,MARK 36100,*RRM
main13211-36100-B0i201510
MARK B,*107:REFER R/M
main13211-36100-C0i201407-201510
MARK C,*107,MARK 36100,*RRM
main13211-36100-C0i201510
MARK C,*107:REFER R/M
main13211-36100-C0i201603
MARK C,*288:REFER R/M
13251PIN, PISTON
main13251-28020-A0i201211-201510
MARK A,*107:REFER R/M
main13251-28020-A0i201510
MARK A,*288:REFER R/M,*107:REFER R/M
main13251-28020-A0i201310-201510
MARK A,*288:REFER R/M
main13251-28020-B0i201510
MARK B,*288:REFER R/M,*107:REFER R/M
main13251-28020-B0i201211-201510
MARK B,*107:REFER R/M
main13251-28020-B0i201310-201510
MARK B,*288:REFER R/M
main13251-28020-C0i201310-201510
MARK C,*288:REFER R/M
main13251-28020-C0i201510
MARK C,*288:REFER R/M,*107:REFER R/M
main13251-28020-C0i201211-201510
MARK C,*107:REFER R/M
13265BOLT, CONNECTING ROD
main13265-28010i201210-201510
sub13265-28020
main13265-31020i201211-201510
*107
main13265-31020i201310-201510
*288
main13265-31020i201510
*107,*288
13405FLYWHEEL SUB-ASSY
main13451-36040i201510
*107,*288
main13451-36040i201211-201510
*107
main13451-36040i201310-201510
*288
13405APIN, STRAIGHT(FOR FLYWHEEL)
main90250-08120i201211-201510
L=18,OD=8,*107
main90250-08120i201310-201510
L=18,OD=8,*288
main90250-08120i201510
L=18,OD=8,*107,*288
13405BBOLT, FLYWHEEL SETTING
main90105-12384i201211-201510
*107
main90105-12384i201310-201510
*288
main90105-12384i201510
*107,*288
13411CRANKSHAFT
main13401-0P030i201210-201507
(L)
sub13401-0P031
main13401-0P031i201507-201510
(L)
main13401-31040i201210-201409
(J)
sub13401-31041
main13401-31041i201410-201510
(J)
sub13401-31021
main13401-36011i201211-201510
*107
main13401-36011i201310-201510
*288
main13401-36011i201510
*107,*288
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
main95161-30516i201211-201510
*107
main95161-30516i201310-201510
*288
main95161-30516i201510
*107,*288
13471PULLEY, CRANKSHAFT
main13470-0V020i201310-201510
(L),*288
main13470-31030i201210-201510
main13470-36010i201211-201510
*107
main13470-36010i201310-201510
(J),*288
main13470-36010i201510
*107,(J),*288
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
main95161-30516i201211-201510
*107
main95161-30516i201310-201510
*288
main95161-30516i201510
*107,*288
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
main90119-16004i201210-201412
main90119-16020i201510
*107,(J),*288
main90119-16020i201310-201506
*288
main90119-16020i201211-201510
*107
main90119-16020i201501-201510
main90119-16020i201506-201510
(J),*288
main90119-A0265i201506-201510
(L),*288
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
main13521-0P011i201210-201510
main13521-0V010i201310-201510
*288
main13521-36010i201211-201510
*107

20 parts on this diagram · 2 diagrams in section

CRANKSHAFT & PISTON — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
