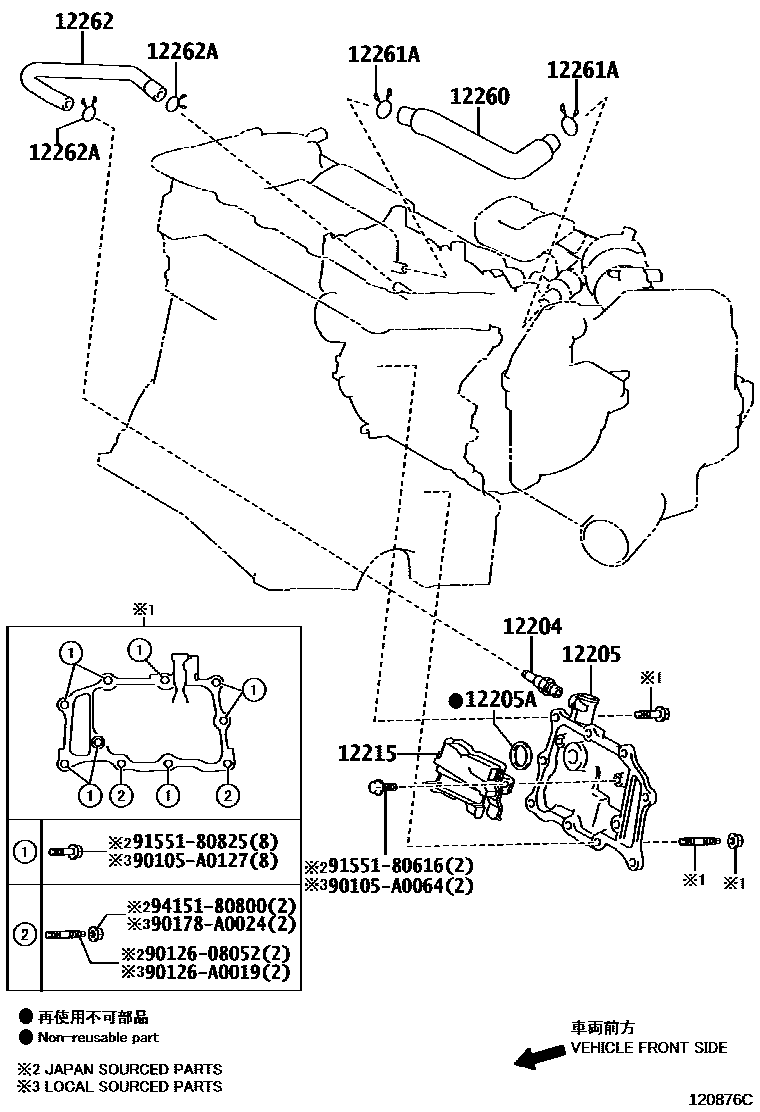

VENTILATION HOSE

0001 1 0002 1

12204VALVE SUB-ASSY, VENTILATION

main12204-31120i2GRFE..GSX40201210-201510

main12204-36020i2ARFXE..AVX40201310-201510

*288

main12204-36020i2ARFXE..AVX40201510

*107,*288

main12204-36020i2ARFXE..AVX40201211-201510

*107

12205CASE SUB-ASSY, VENTILATION

main12205-0V010i2ARFXE..AVX40201310-201510

*288

main12205-36010i2ARFXE..AVX40201211-201510

*107

12205ARING, O(FOR VENTILATION CASE)

main12273-36010i2ARFXE..AVX40201310-201510

*288

main12273-36010i2ARFXE..AVX40201510

*107,*288

main12273-36010i2ARFXE..AVX40201211-201510

*107

12215SEPARATOR, CASE

main12215-0V010i2ARFXE..AVX40201310-201510

*288

main12215-36010i2ARFXE..AVX40201211-201510

*107

12260HOSE ASSY, VENTILATION

main12260-0V050i2ARFXE..AVX40201211-201510

12261HOSE, VENTILATION

main12261-0P080i2GRFE..GSX40201210-201510

12261ACLIP OR CLAMP(FOR VENTILATION HOSE)

main90467-14017i2GRFE..GSX40201210-201510

main90467-21004i2ARFXE..AVX40201211-201510

12262HOSE, VENTILATION, NO.2

main12262-31100i2GRFE..GSX40201210-201510

main12262-36030i2ARFXE..AVX40201211-201309

*107

sub12262-36080

main12262-36080i2ARFXE..AVX40201309-201510

*107

main12262-36080i2ARFXE..AVX40201310-201510

*288

main12262-36080i2ARFXE..AVX40201510

*107,*288

12262ACLIP(FOR VENTILATION HOSE NO.2)

main90467-16035i2ARFXE..AVX40201211-201510

*107

main90467-16035i2ARFXE..AVX40201310-201510

*288

main90467-16035i2ARFXE..AVX40201510

*107,*288

main90467-21004i2GRFE..GSX40201210-201510

90105A0064

main90105-A0064

90105A0127

main90105-A0127

9012608052

main90126-08052

90126A0019

main90126-A0019

90178A0024

main90178-A0024

9155180616

main91551-80616

9155180825

main91551-80825

9415180800

main94151-80800

17 parts on this diagram · 2 diagrams in section
