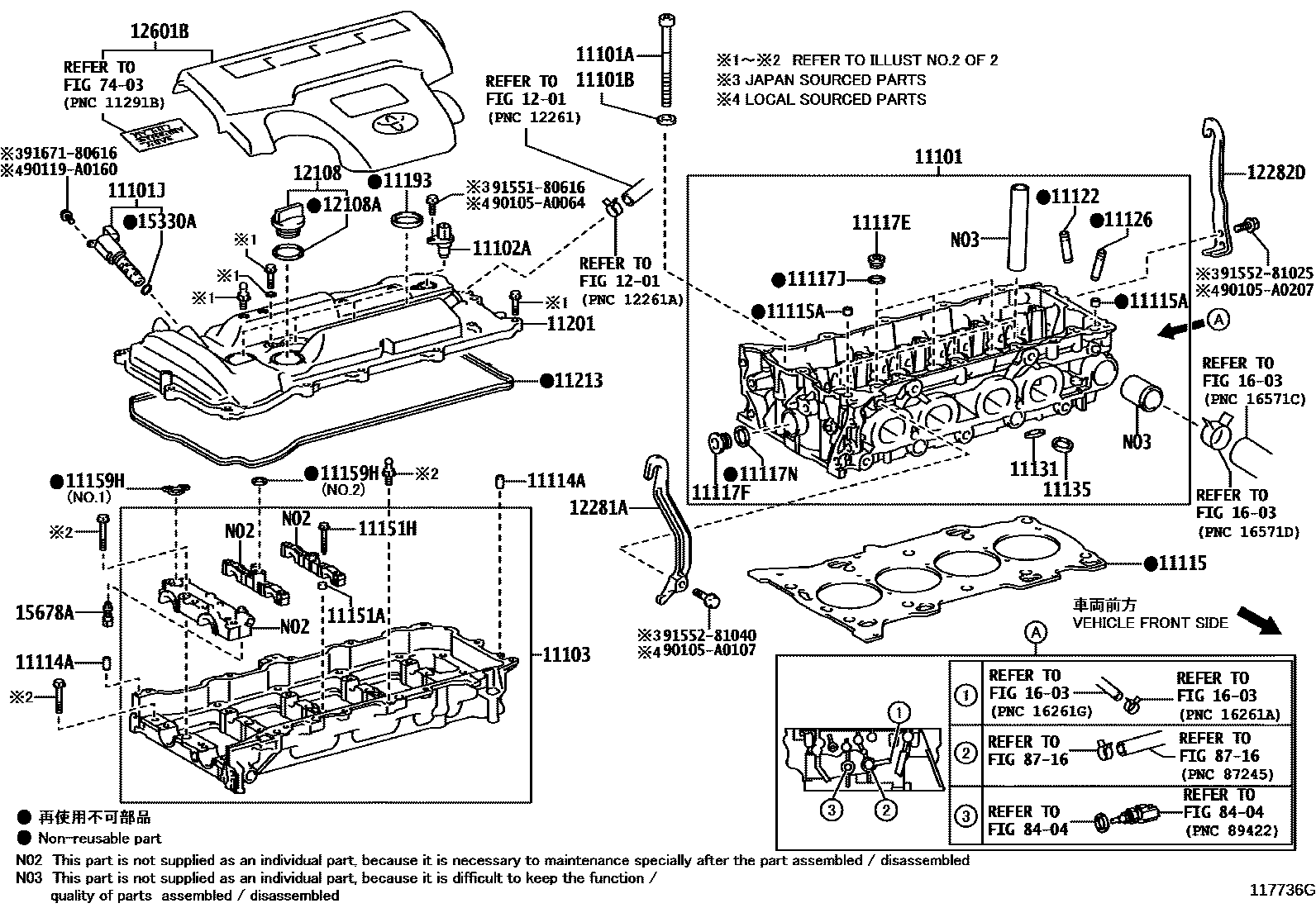

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
(J)
*252
*402
*288
*107
*107,*288
11101ABOLT(FOR CYLINDER HEAD SET)
*107
(J)
*288
(L)
11101BWASHER, PLATE(FOR CYLINDER HEAD SET)
*107,*288
(J)
*107
*288
(L)
11101JVALVE ASSY, CAMSHAFT TIMING OIL CONTROL
*288
*107
11102HEAD, CYLINDER, LH
*252
(J)
*402
11102ASENSOR, CAMSHAFT POSITION
*107
*288
*107,*288
11103HOUSING SUB-ASSY, CAMSHAFT
*107
*288
*107,*288
11114APIN, STRAIGHT
L=14,OD=6,*107
L=14,OD=6,*288
L=14,OD=6,*107,*288
11115GASKET, CYLINDER HEAD
*107,*288
11115APIN, RING
*107,*288
*107
*288
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
*107,*288
*107
*288
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
*288
*107
*107,*288
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
*107,*288
*107
*288
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
*107,*288
*107
*288
11122BUSH, INTAKE VALVE GUIDE
STD
O/S 0.05,*107,*288
O/S 0.05
O/S 0.05,*107
O/S 0.05,*288
11126BUSH, EXHAUST VALVE GUIDE
11131SEAT, INTAKE VALVE
STD,(L)
STD,*288
STD,*107
STD,*107,*288
O/S 0.03,(L)
O/S 0.03,*107
O/S 0.03,*288
O/S 0.03,*107,*288
11135SEAT, EXHAUST VALVE
STD,(L)
STD,(J)
STD,*107
STD,*288
STD,*107,*288
O/S 0.03,(L)
O/S 0.03,(J)
O/S 0.03,*107
O/S 0.03,*107,*288
O/S 0.03,*288
11151APIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
L=12.5,OD=8,*107
L=12.5,OD=8,*288
L=12.5,OD=8,*107,*288
11151HBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING)
*288
*107
*107,*288
11159HGASKET, CAMSHAFT BEARING CAP OIL HOLE
*288,NO.1:REF.ILLUST
*107,NO.1:REF.ILLUST
*107,NO.2:REF.ILLUST
*288,NO.2:REF.ILLUST
11193GASKET, SPARK PLUG TUBE
*288
*107
(J)
11201COVER SUB-ASSY, CYLINDER HEAD
(J)
*107
*107,*288
*288
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
*107
*288
*107,*288
1201
12108AGASKET(FOR OIL FILLER CAP)
*107
12281AHANGER, ENGINE, NO.1
*107,*288
*107
*288
12282DHANGER, ENGINE, NO.2
*288
*107
*107,*288
12601BCOVER SUB-ASSY, ENGINE, NO.1
(L)
(J)
15330ARING, O(FOR CAM TIMING OIL CONTROL VALVE)
*107
15678AFILTER, OIL CONTROL VALVE
(L),*288
(J),*288
*107
*107,(J),*288
1603
7403
8404
8716
90105A0064
main90105-A0064
90105A0107
main90105-A0107
90105A0207
main90105-A0207
90119A0160
main90119-A0160
9155180616
9155281025
9155281040
9167180616
44 parts on this diagram · 4 diagrams in section
