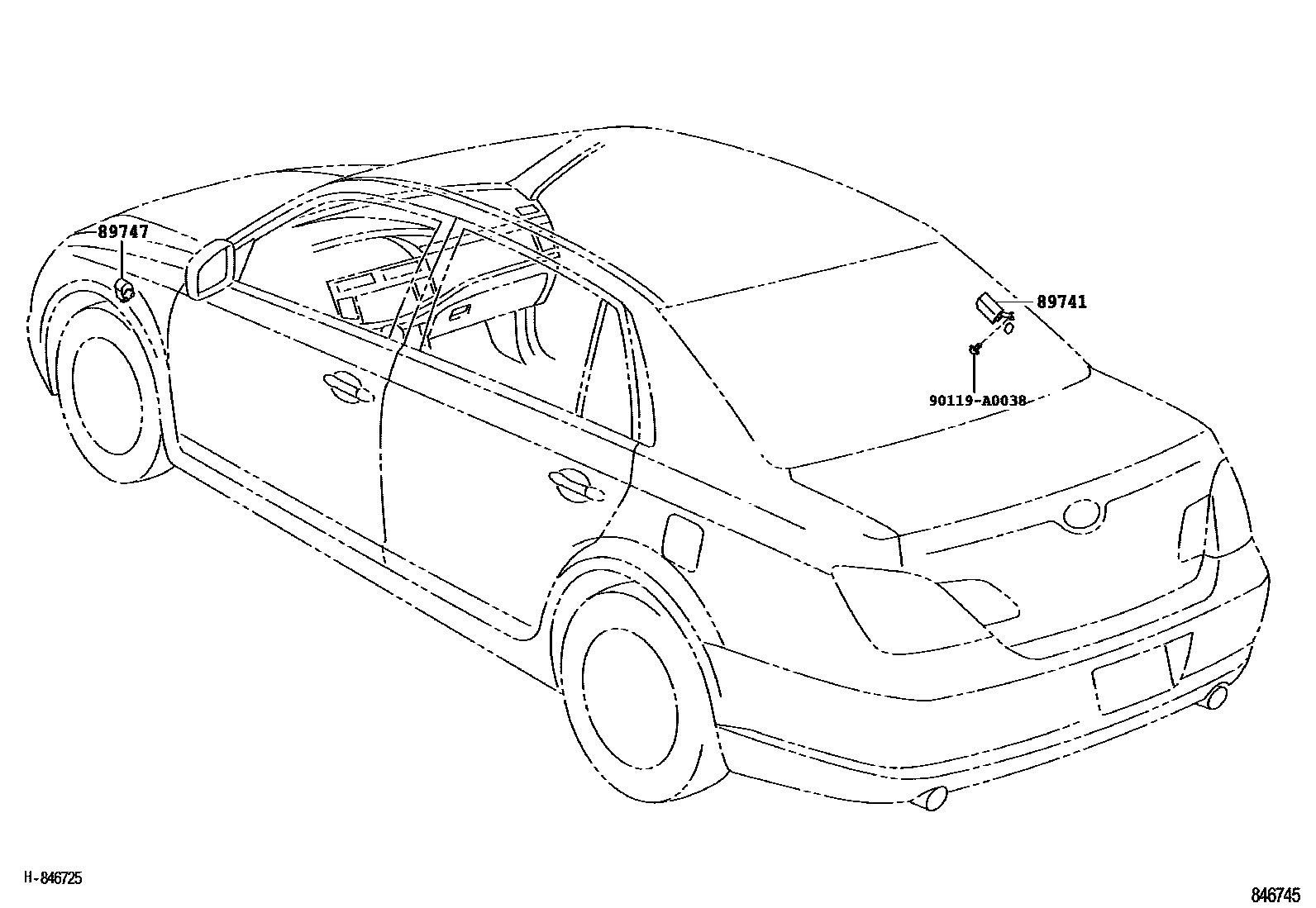

WIRELESS DOOR LOCK

0001 1W/O(SMART ENTRY) 0002 1W(SMART ENTRY) 0003 1W(SMART ENTRY)

89741RECEIVER, DOOR CONTROL

main89740-06030iGSX30..LIMD200601-200605

main89740-07010iGSX30..LIMD200501-200512

sub89740-06030

main89740-07070iGSX30..LIMD200605-201003

main89741-07060iGSX30..XLS200707-201003

main89741-AC070iGSX30..XL,XLS200501-200707

89747BUZZER, WIRELESS DOOR LOCK

main89747-AC010iGSX30200501-201003

90119A0038

main90119-A0038

3 parts on this diagram · 3 diagrams in section
