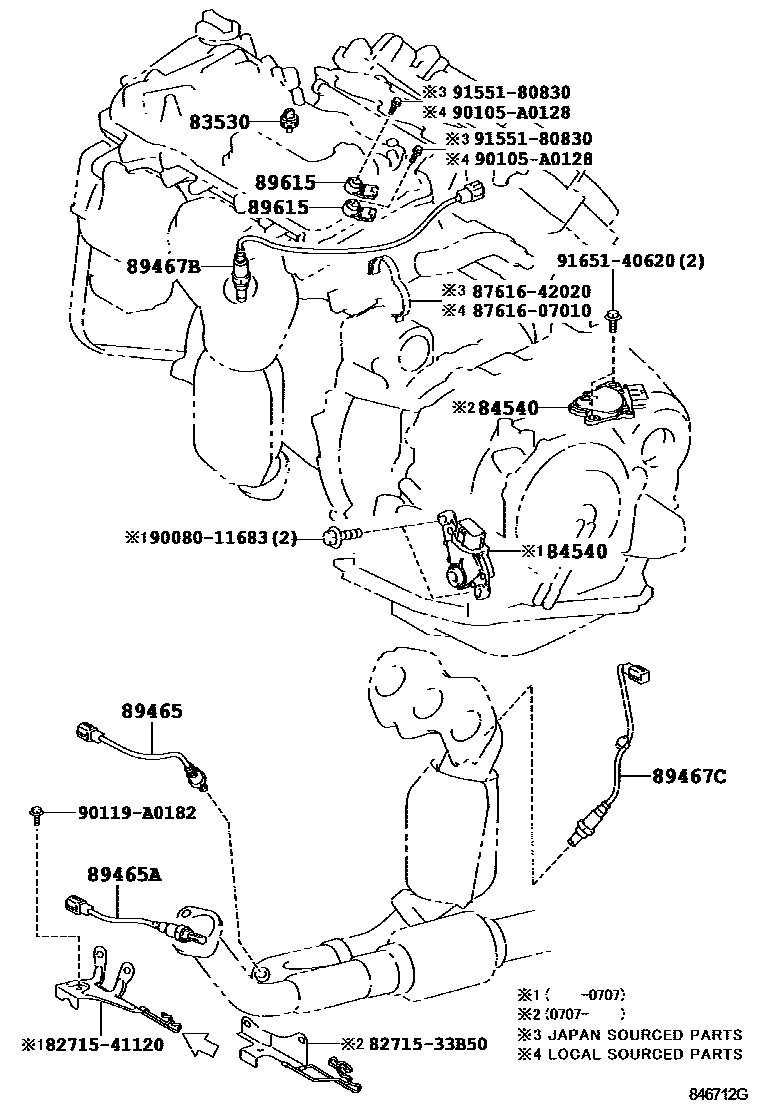

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1IGNITION & COMBINATION SW 0007 1SEAT 0008 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-0E010iGSX30200908-201003

(L)

main83530-28020iGSX30200707-201003

(J),DENSO

main83530-28020iGSX30200501-200707

DENSO

main83530-60020iGSX30200501-201003

YAZAKI

main83530-AA011iGSX30200601-200908

FASCO

sub83530-0E010

84540SWITCH ASSY, NEUTRAL START

main84540-07010iGSX30201003-201210

(L)

main84540-07010iGSX30200707-201003

main84540-0E010iGSX30200501-200707

main84540-33010iGSX30201003-201210

(J)

89465SENSOR, OXYGEN

main89465-07050iGSX30200501-200508

main89465-07080iGSX30..XL200508-201003

89465ASENSOR, OXYGEN NO.2

main89465-06250iGSX30..XL200707-201003

main89465-07060iGSX30200501-200508

main89465-07070iGSX30200508-200707

89467BSENSOR, AIR FUEL RATIO

main89467-06130iGSX30201111

main89467-07010iGSX30200501-200707

main89467-07030iGSX30200707-201111

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-06140iGSX30201111

main89467-07020iGSX30200501-200707

main89467-07040iGSX30..5FC200707-201111

89615SENSOR, KNOCK CONTROL

main89615-06010iGSX30..LIMD,XLS200510-201003

MARK 89615-06010

main89615-20090iGSX30200510-201003

MARK 89615-20090

main89615-20090iGSX30200501-200510

8271533B50BRACKET,WIRING HARNESS CLAMP

main82715-33B50

8271541120BRACKET,WIRING HARNESS CLAMP

main82715-41120

8761607010CLAMP, COOLING UNIT CASE

main87616-07010

8761642020CLAMP, COOLING UNIT CASE

main87616-42020

9008011683

main90080-11683

90105A0128

main90105-A0128

90119A0182

main90119-A0182

9155180830

main91551-80830

9165140620

main91651-40620

16 parts on this diagram · 8 diagrams in section
