METER

0001 1COMBINATION METER 0002 1ACCESSORY METER 0003 1

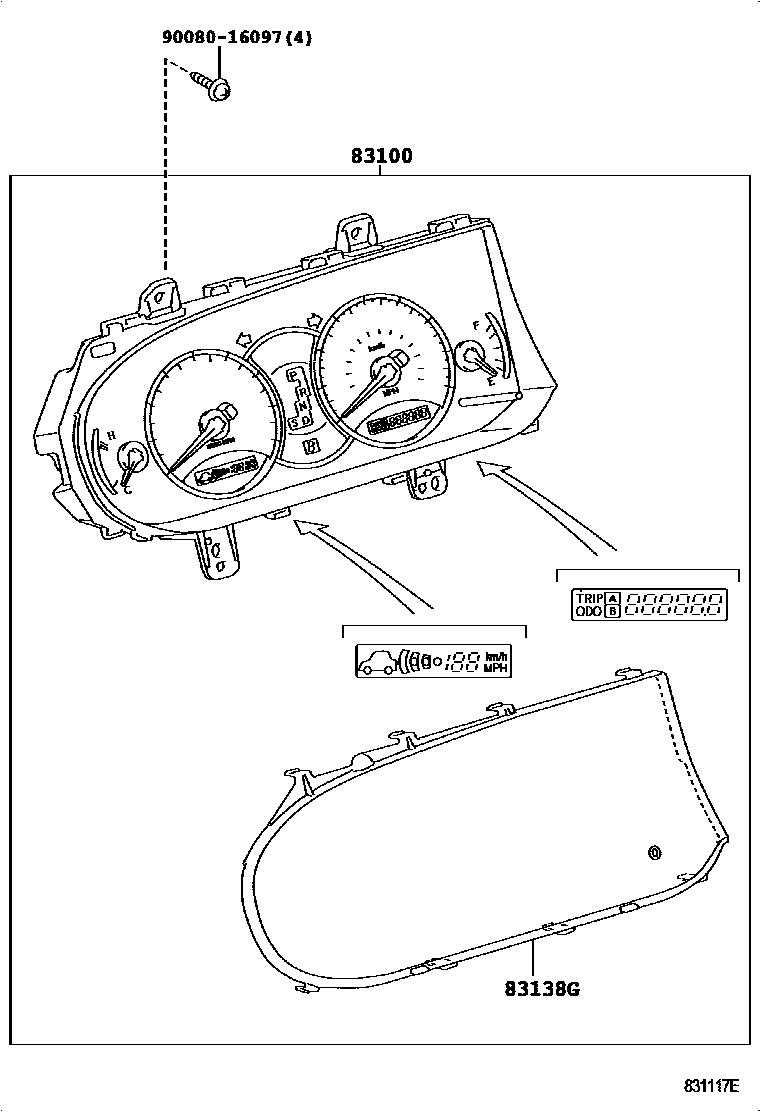

83100METER ASSY, COMBINATION

main83800-07210iGSX30..XL200501-200507

sub83800-07211

main83800-07211iGSX30..XL200508-200606

main83800-07260iGSX30..LIMD200501-200606

main83800-07300iGSX30..XLS200501-200606

main83800-07310iGSX30..XL200607-200707

main83800-07320iGSX30..LIMD200607-200707

main83800-07340iGSX30..XLS200607-200707

main83800-07370iGSX30..LIMD200707-201003

main83800-07380iGSX30..XLS200707-200808

main83800-07390iGSX30..XLS200808-201003

main83800-07420iGSX30..XL200707-201003

main83800-07460iGSX30201003-201012

main83800-07461iGSX30201012

83138GGLASS, COMBINATION METER

main83852-07210iGSX30..XLS200501-200707

CANADA SPEC

main83852-07210iGSX30..XLS200501-200707

CANADA SPEC&VSC-WITH(W/TRACTION CONTROL)

main83852-07210iGSX30..XLS200501-200707

VSC-WITH(W/TRACTION CONTROL)

main83852-07210iGSX30..XLS200501-200707

CANADA SPEC&SPORTS PACKAGE

main83852-07210iGSX30..LIMD,XLS200707-201003

main83852-07460iGSX30201003

9008016097

main90080-16097

3 parts on this diagram · 3 diagrams in section
