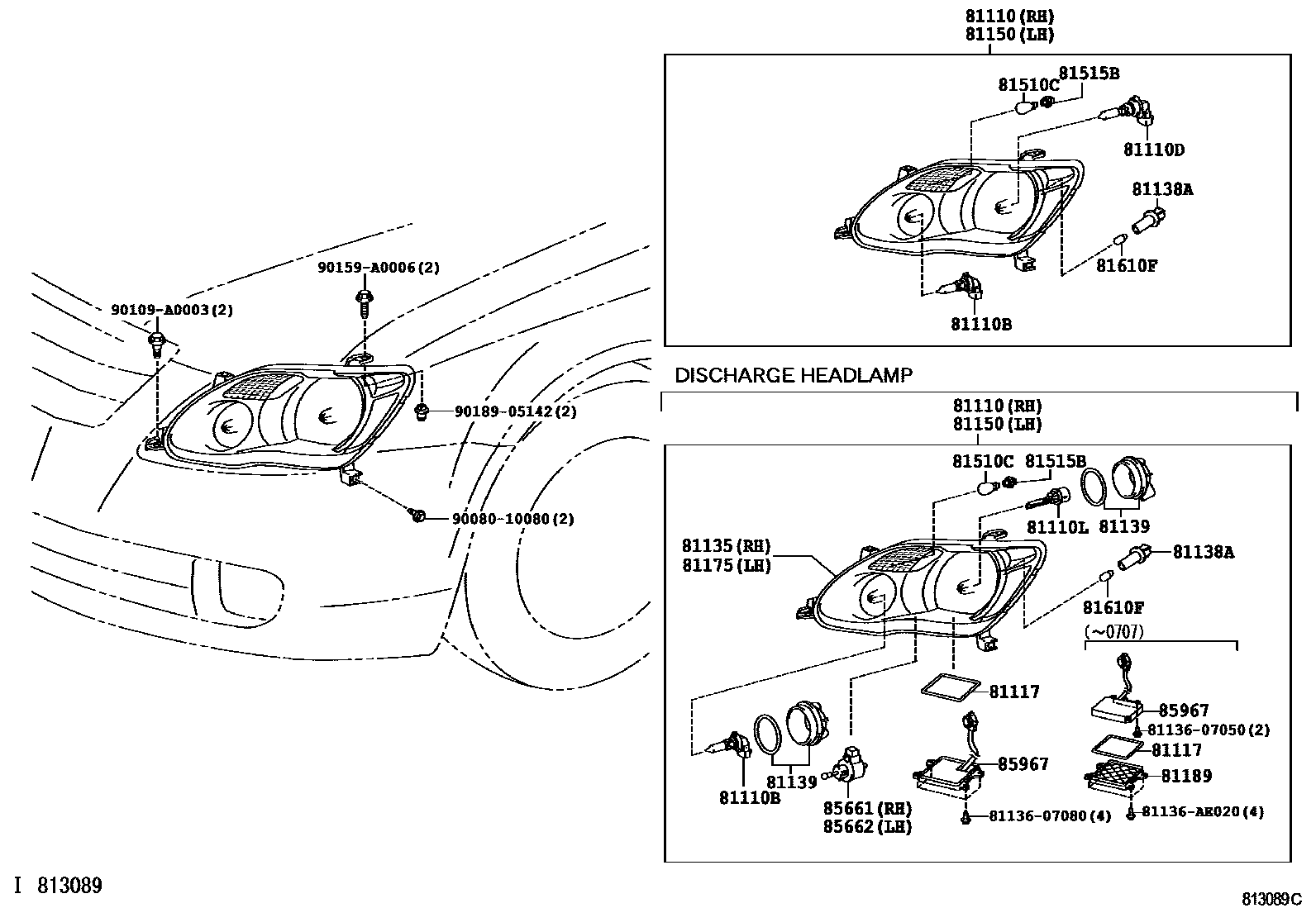

HEADLAMP
81110BBULB(FOR HEADLAMP, NO.1)
12V65W(SAE),60W(ECE)
12V 65W,HALOGEN
81110DBULB(FOR HEADLAMP, NO.2)
12V 51W,HALOGEN
12V 55W
81110LBULB, DISCHARGE HEADLAMP
85V 35W
85V 35W,SPORTS PACKAGE
45V 35W
45V 35W
81117PACKING, HEADLAMP HOUSING
SPORTS PACKAGE
SPORTS PACKAGE
81135UNIT ASSY, HEADLAMP, RH
SPORTS PACKAGE
81138ASOCKET & WIRE, HEADLAMP
81139COVER, HEADLAMP SOCKET
SPORTS PACKAGE
81175UNIT ASSY, HEADLAMP, LH
SPORTS PACKAGE
81189COVER, HEADLAMP
SPORTS PACKAGE
81510CBULB (FOR FRONT TURN SIGNAL LAMP)
12V 28/8W
12V 28/8W
81515BSOCKET, FRONT TURN SIGNAL LAMP
81610FBULB(FOR CLEARANCE LAMP)
12V 5W
85661MOTOR, HEADLAMP LEVELING, RH
SPORTS PACKAGE
85662MOTOR, HEADLAMP LEVELING, LH
SPORTS PACKAGE
85967COMPUTER, LIGHT CONTROL
SPORTS PACKAGE
8113607050PROTECTOR, HEADLAMP, NO.1 RH
main81136-07050
8113607080PROTECTOR, HEADLAMP, NO.1 RH
main81136-07080
81136AE020PROTECTOR, HEADLAMP, NO.1 RH
main81136-AE020
9008010080
main90080-10080
90109A0003
main90109-A0003
90159A0006
main90159-A0006
9018905142
main90189-05142
24 parts on this diagram · 3 diagrams in section
