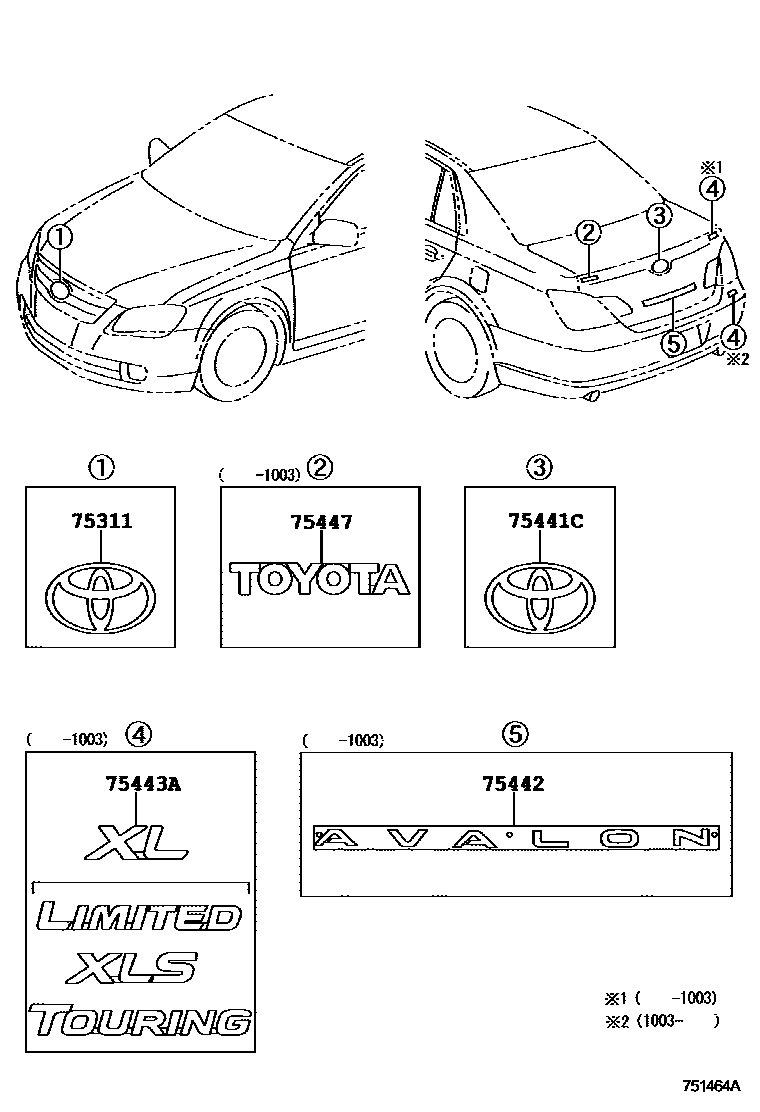

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75311-07020iGSX30200707-201003

main75311-AC020iGSX30200501-200707

main90975-02100iGSX30201003-201210

75441CPLATE, BACK DOOR NAME

main75441-AC020iGSX30200501-201003

main90975-02069iGSX30201003

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-AC040iGSX30..XL200501-201003

AVALON

75443APLATE, LUGGAGE COMPARTMENT DOOR, NO.3

main75443-AC090iGSX30..XL200501-200707

XL

main75443-AC100iGSX30..XLS200501-201003

XLS

main75443-AC110iGSX30..LIMD200501-201003

LIMITED

75447PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.7

main75447-AC030iGSX30200501-201003

5 parts on this diagram · 1 diagram in section
