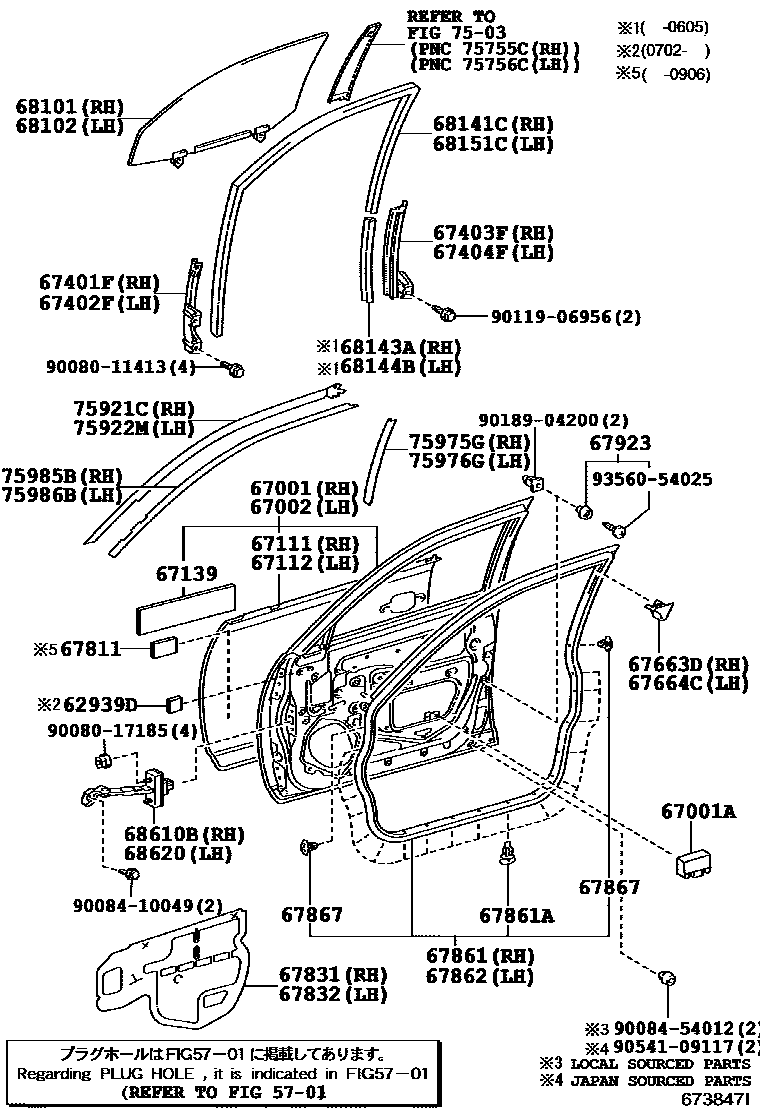

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM

5701

62939DSILENCER, QUARTER VENT

main62939-07010×2iGSX30200702-200703

main67481-07010×2iGSX30..LIMD,XLS200707-201003

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-AC060iGSX30200501-200707

main67001-AC061iGSX30..XL200910

67001ACUSHION, FRONT DOOR PANEL

main67887-AC020×2iGSX30200501-200707

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-AC050iGSX30200501-200707

main67002-AC051iGSX30201003-201210

67111PANEL, FRONT DOOR, OUTER RH

main67111-AC020iGSX30200501-200707

67112PANEL, FRONT DOOR, OUTER LH

main67112-AC020iGSX30200501-200707

67139LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67813-44010×2iGSX30200501-200707

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-AC030iGSX30200501-200707

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-AC030iGSX30200501-200707

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-AC030iGSX30200501-200605

main67403-AC031iGSX30..XL200707

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-AC030iGSX30200501-200605

main67404-AC031iGSX30200605-200707

67663DGARNISH, DOOR FRAME, RH

main67675-AC010iGSX30..XL200707

67664CGARNISH, DOOR FRAME, LH

main67676-AC010iGSX30200501-200707

67811PAD, FRONT DOOR SILENCER

main67811-AA040×2iGSX30200501-200707

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-07040iGSX30..XL200805

main67831-07050iGSX30201003

main67831-AC020iGSX30200501-200707

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-07020iGSX30..XL200805

main67832-07030iGSX30201003

main67832-AC020iGSX30200707-200805

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-AC030iGSX30..LIMD,XLS200707-201003

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67867-12150×34iGSX30200501-200707

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-AC030iGSX30200501-200707

67867CLIP, DOOR WEATHERSTRIP

main90467-04034×4iGSX30200501-200707

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iGSX30200501-200707

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-AC060iGSX30200501-200707

*HSEA,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-AC060iGSX30200501-200707

*HSEA,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-AC030iGSX30200501-200605

main68141-AC031iGSX30..LIMD,XLS200707-201003

68143ARUN, FRONT DOOR GLASS, NO.2

main68143-AC020iGSX30200501-200605

68144BRUN, FRONT DOOR GLASS SIDE, LH

main68144-AC020iGSX30200501-200605

68151CRUN, FRONT DOOR GLASS, LH

main68151-AC030iGSX30200501-200605

main68151-AC031iGSX30200605-200707

68610BCHECK ASSY, FRONT DOOR, RH

main68610-AC020iGSX30200501-200702

main68610-AC021iGSX30200703-200707

68620CHECK ASSY, FRONT DOOR, LH

main68620-AC020iGSX30200501-200702

main68620-AC021iGSX30200703-200707

7503

75921CTAPE, BLACK OUT, NO.1 RH

main75921-AC010iGSX30200501-200707

75922MTAPE, BLACK OUT, NO.1 LH

main75922-AC010iGSX30200501-200707

75975GSTRIPE, FRONT DOOR, NO.2 RH

main75975-AC010iGSX30200501-200707

75976GSTRIPE, FRONT DOOR, NO.2 LH

main75976-AC010iGSX30200501-200707

75985BSTRIPE, FRONT DOOR, NO.3 RH

main75985-AC010iGSX30200501-200707

75986BSTRIPE, FRONT DOOR, NO.3 LH

main75986-AC010iGSX30200501-200707

9008011413

main90080-11413

9008017185

main90080-17185

9008410049

main90084-10049

9008454012

main90084-54012

9011906956

main90119-06956

9018904200

main90189-04200

9054109117

main90541-09117

9356054025

main93560-54025

45 parts on this diagram · 2 diagrams in section
