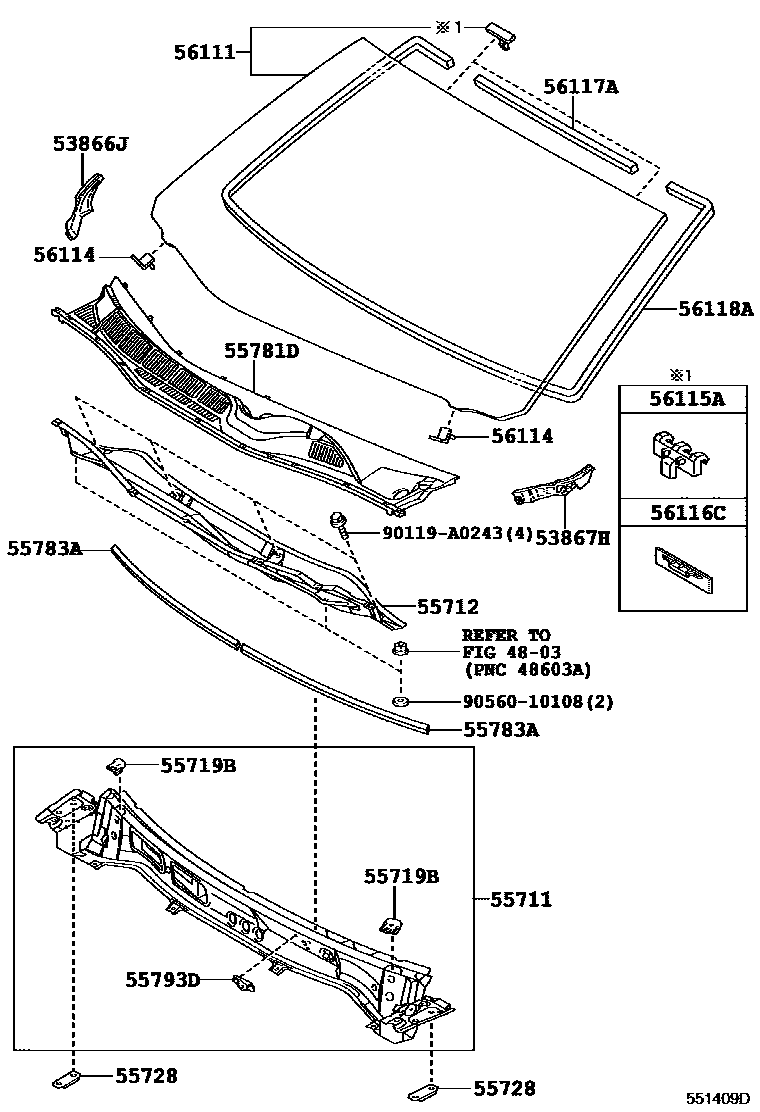

COWL PANEL & WINDSHIELD GLASS

4803

53866JSEAL, FRONT FENDER TO COWL SIDE, RH

main53866-AC020iGSX30200501-201003

53867HSEAL, FRONT FENDER TO COWL SIDE, LH

main53867-AC030iGSX30200501-201003

55711PANEL, COWL TOP, OUTER

main55701-AC010iGSX30200501-201210

55712PANEL, COWL TOP OUTSIDE, FRONT

main55704-AC010iGSX30200501-201003

55719BBRACKET, COWL TOP OUTER PANEL, NO.2

main55719-AC010iGSX30200501-201003

55728REINFORCEMENT, HOOD STOPPER, RH

main55728-06010iGSX30200501-201003

55781DLOUVER, COWL TOP VENTILATOR, RH

main55708-AC010iGSX30200501-201003

55783APAD, COWL TOP SILENCER

main55783-AC010iGSX30200501-201003

55793DBRACKET, WEATHERSTRIP WIPER PIVOT GUIDE, NO.1

main55793-AC010iGSX30200501-201003

56111GLASS, WINDSHIELD

main56101-07020iGSX30..LIMD201003

*LAM,T=4.7,GREEN

main56101-AC160iGSX30..XL200501-200707

*LAM,T=4.7,GREEN

main56101-AC170iGSX30..XLS200501-201003

*LAM,T=4.7,GREEN

main56101-AC180iGSX30..LIMD200501-201003

*LAM,T=4.7,GREEN

56114RETAINER, WINDSHIELD GLASS

main56114-22050iGSX30200501-200605

main56114-33050iGSX30..XL200606-201003

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-22010iGSX30200501-201003

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iGSX30200501-201003

56117ADAM, WINDOW GLASS ADHESIVE

main90998-91004iGSX30..XL200501-201003

*D,L=3594

main90998-91004iGSX30200501-201003

*D,L=3594,INTERMITTENT WIPER-RAIN SENSE TMR WASH LNKD

main90998-91004iGSX30..XL200707

*D,L=3594,OUTSIDE REAR VIEW MIRROR-HEATER + *57&EMV & NAVIGATION SYSTEM-WITH

56118ADAM, WINDOW GLASS ADHESIVE, NO.2

main90998-91003iGSX30200501-201003

*D,L=683

main90998-91003iGSX30200501-201003

*D,L=683,INTERMITTENT WIPER-RAIN SENSE TMR WASH LNKD

main90998-91003iGSX30..XL200707

*D,L=683,OUTSIDE REAR VIEW MIRROR-HEATER + *57&EMV & NAVIGATION SYSTEM-WITH

90119A0243

main90119-A0243

9056010108

main90560-10108

18 parts on this diagram · 1 diagram in section
