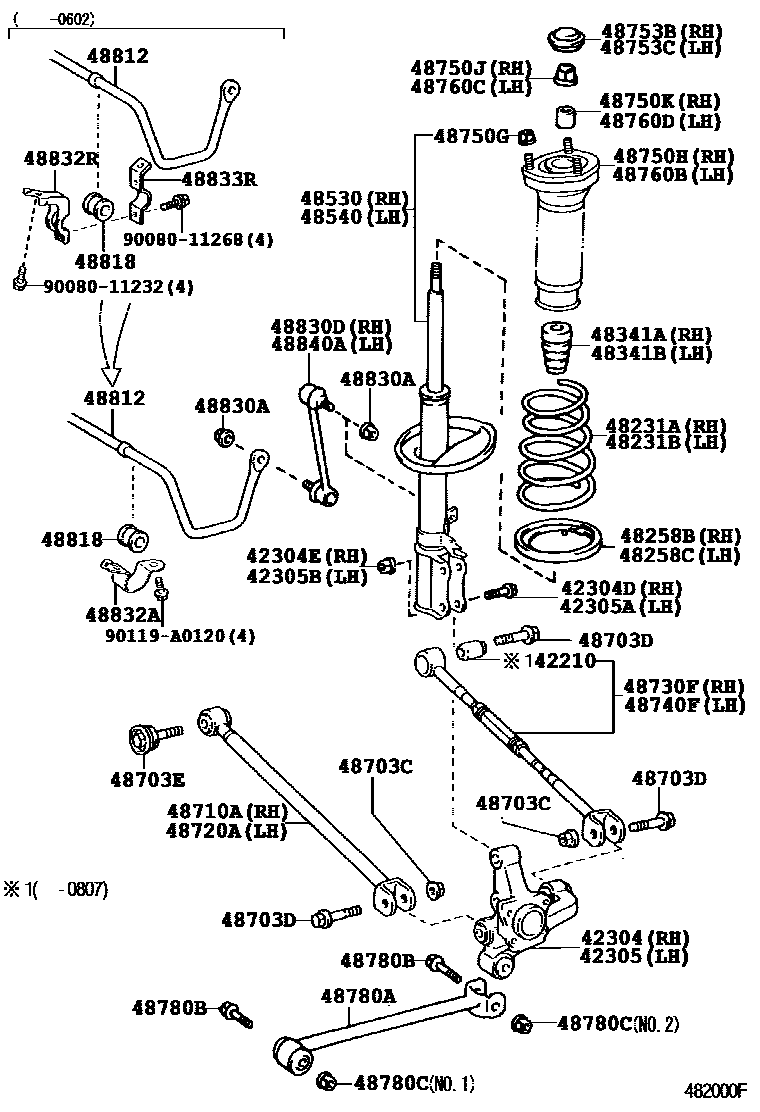

REAR SPRING & SHOCK ABSORBER
42210BUSH ASSY, LOWER BALL
42304CARRIER SUB-ASSY, REAR AXLE, RH
(L)
(J)
42304DBOLT (FOR REAR AXLE CARRIER RH)
(L)
(J)
42304ENUT (FOR REAR AXLE CARRIER RH)
(J)
(L)
42305CARRIER SUB-ASSY, REAR AXLE, LH
(L)
(J)
42305ABOLT (FOR REAR AXLE CARRIER LH)
(L)
(J)
42305BNUT (FOR REAR AXLE CARRIER LH)
(J)
(L)
48258BINSULATOR, REAR COIL SPRING, LOWER RH
JAPAN SOURCED PARTS
48258CINSULATOR, REAR COIL SPRING, LOWER LH
JAPAN SOURCED PARTS
48341ABUMPER, REAR SPRING, NO.1 RH
48341BBUMPER, REAR SPRING, NO.1 LH
48530ABSORBER ASSY, SHOCK, REAR RH
MARK 48530-07100
MARK 48530-07120
48540ABSORBER ASSY, SHOCK, REAR LH
MARK 48540-07100
MARK 48540-07102
MARK 48540-07140
48703CNUT(FOR REAR SUSPENSION ARM)
48703DWASHER(FOR REAR SUSPENSION ARM)
48703EBOLT(FOR REAR SUSPENSION ARM)
*14-1.50PX76-36
48730FARM ASSY, REAR SUSPENSION, NO.2 RH
48740FARM ASSY, REAR SUSPENSION, NO.2 LH
48750GNUT(FOR REAR SUSPENSION SUPPORT)
(J)
(L)
48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
(L)
(J)
48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)
48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH
48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH
48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
(L)
(J)
48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)
48780BBOLT(FOR STRUT ROD)
48780CNUT(FOR STRUT ROD)
NO.2
NO.1
48818BUSH, STABILIZER, REAR
48830ANUT(FOR REAR STABILIZER LINK)
48830DLINK ASSY, REAR STABILIZER, RH
48832ABRACKET, REAR STABILIZER BAR, NO.1
48832RBRACKET, REAR STABILIZER BAR, NO.1 RH
(L)
(J)
48833RBRACKET, REAR STABILIZER BAR, NO.1 LH
48840ALINK ASSY, REAR STABILIZER, LH
9008011232
main90080-11232
9008011268
90119A0120
main90119-A0120
45 parts on this diagram · 1 diagram in section
