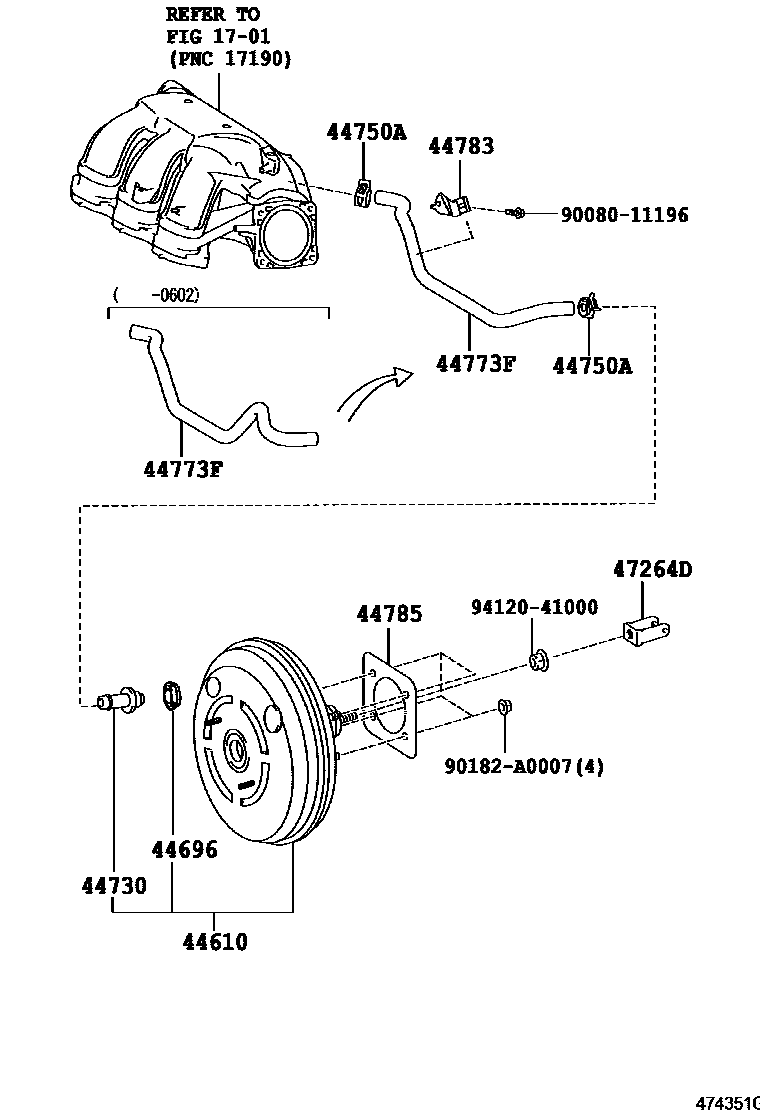

BRAKE BOOSTER & VACUUM TUBE

1701

44610BOOSTER ASSY, BRAKE

main44610-07120iGSX30200501-200707

sub44610-07121

main44610-07130iGSX30200707-200803

sub44610-07131

main44610-07131iGSX30200803-200908

main44610-07132iGSX30200908-201101

main44610-07140iGSX30201101-201210

44696GROMMET, CHECK VALVE

main90080-48071iGSX30..XL200707-201003

main90480-24439iGSX30200501-200707

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-22150iGSX30200501-201210

44750ACLIP(FOR VACUUM HOSE ASSY)

main90466-A0003iGSX30200602-201003

main96136-41801iGSX30200501-200602

44773FHOSE, UNION TO CHECK VALVE

main44773-06090iGSX30200602-201003

main44773-07060iGSX30200501-200602

44783CLAMP, VACUUM HOSE

main44783-06060iGSX30200707-201003

main44783-41010iGSX30200501-200707

44785GASKET, BRAKE BOOSTER

main44785-07010iGSX30200501-201003

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-63020iGSX30200501-201210

9008011196

main90080-11196

90182A0007

main90182-A0007

9412041000

main94120-41000

12 parts on this diagram · 1 diagram in section
