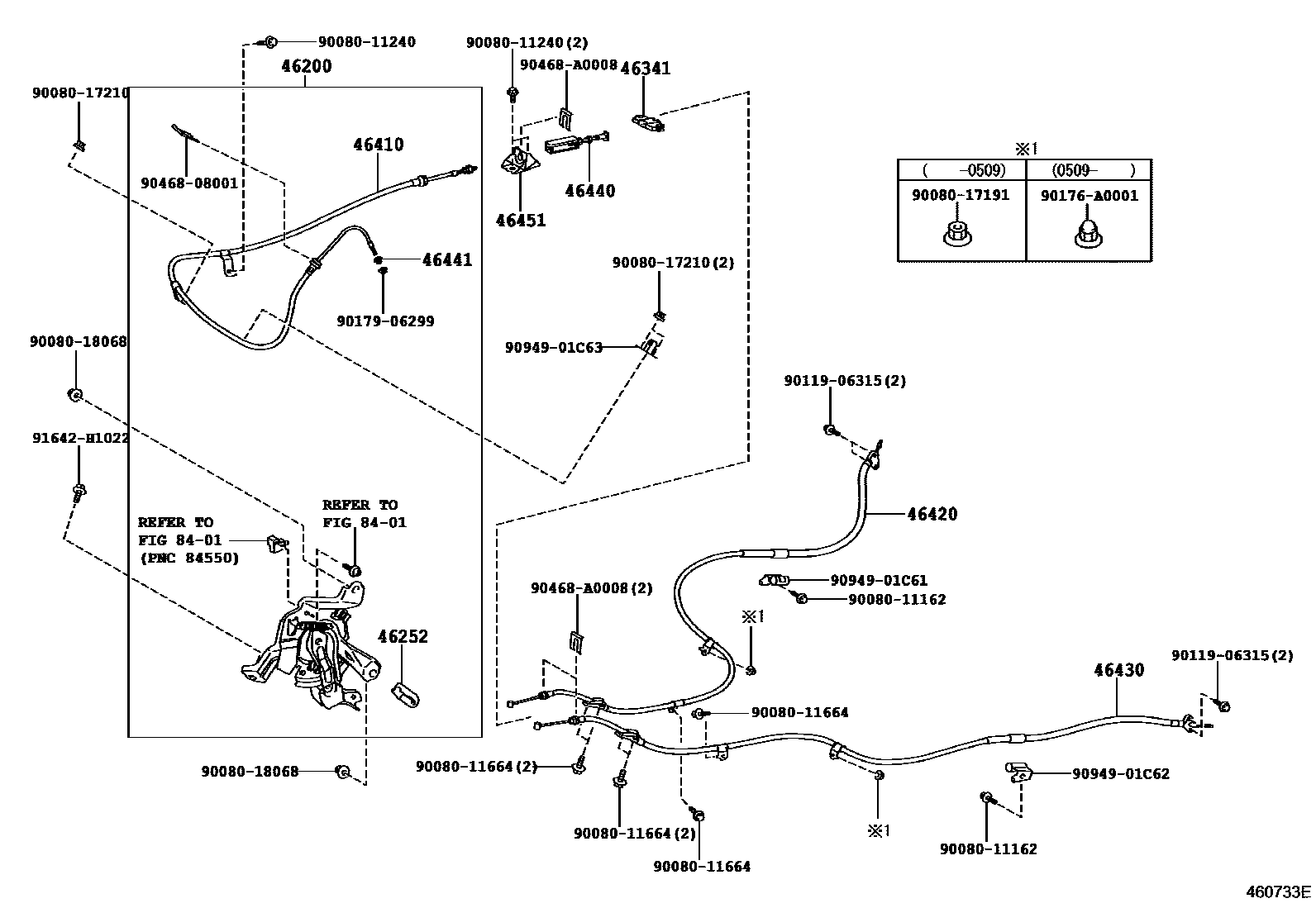

PARKING BRAKE & CABLE

0001 1 0002 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-07051iGSX30200501-201003

46252PAD, PARKING PEDAL

main46252-68010iGSX30¥440200501-201003

46341EQUALIZER, PARKING BRAKE

main46341-20070iGSX30¥360200501-201003

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-07050iGSX30200501-201003

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-07030iGSX30200501-201209

sub46420-07031

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-07030iGSX30200501-201209

sub46430-07031

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-07030iGSX30200501-200602

sub46440-07031

main46440-07031iGSX30200603-201003

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSX30¥160200501-201003

46451BRACKET, CABLE SUPPORT

main46451-07010iGSX30..LIMD,XLS¥1,080200501-201003

8401

9008011162

main90080-11162¥60

9008011240

main90080-11240¥130

9008011664

main90080-11664

9008017191

main90080-17191¥110

9008017210

main90080-17210¥100

9008018068

main90080-18068

9011906315

main90119-06315¥70

90176A0001

main90176-A0001

9017906299

main90179-06299¥70

9046808001

main90468-08001¥210

90468A0008

main90468-A0008

9094901C61

main90949-01C61¥390

9094901C62

main90949-01C62¥390

9094901C63

main90949-01C63¥320

91642H1022

main91642-H1022¥110

25 parts on this diagram · 2 diagrams in section
