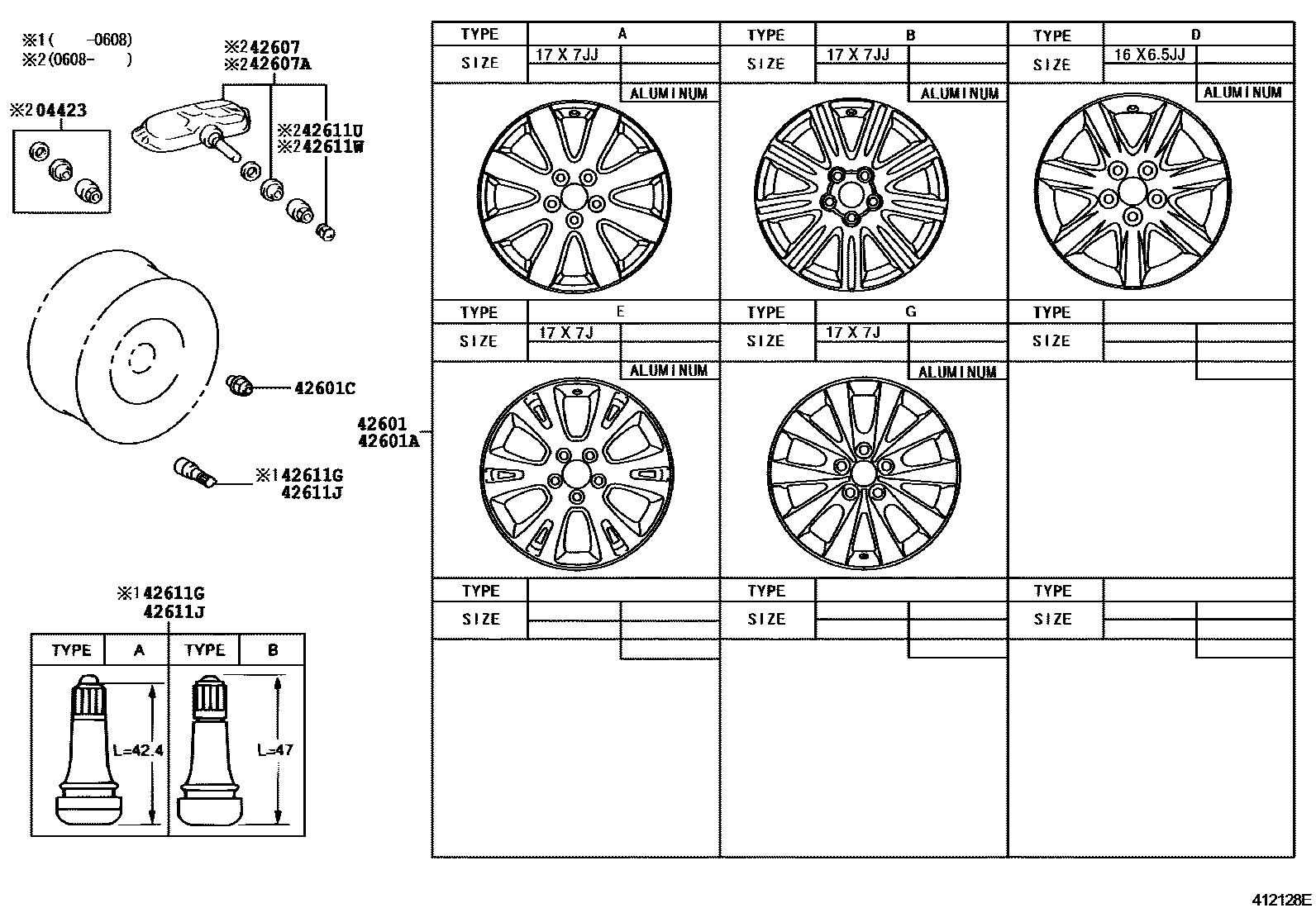

DISC WHEEL & WHEEL CAP
04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE
42601WHEEL, DISC
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,SPORTS PACKAGE,TYPE E:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
17X7JJ, #,SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST.
sub42611-AC061
17X7JJ, #,SPORTS PACKAGE,TYPE A:REFER ILLUST.
17X7JJ, #,TYPE B:REFER ILLUST.
16X6.5JJ, #,TYPE D:REFER ILLUST.
16X6.5JJ, #,DECONTENT PACKAGE,TYPE D:REFER ILLUST.
17X7JJ, #,TYPE A:REFER ILLUST.
42601AWHEEL, DISC (FOR SPARE)
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,TYPE E:REFER ILLUST.
17X7J, #,SPORTS PACKAGE,TYPE E:REFER ILLUST.
17X7J, #,TYPE G:REFER ILLUST.
17X7JJ, #,SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST.
sub42611-AC061
17X7JJ, #,SPORTS PACKAGE,TYPE A:REFER ILLUST.
17X7JJ, #,SPARE TIRE-STD TIRE ALUMINIUM 17" B,TYPE B:REFER ILLUST.
sub42611-AC071
17X7JJ, #,TYPE B:REFER ILLUST.
16X6.5JJ, #,SPARE TIRE-STD TIRE ALUMINIUM 16",TYPE D:REFER ILLUST.
sub42611-AC081
16X6.5JJ, #,DECONTENT PACKAGE,TYPE D:REFER ILLUST.
16X6.5JJ, #,TYPE D:REFER ILLUST.
17X7JJ, #,SPARE TIRE-STD TIRE ALUMINIUM 17" A,TYPE A:REFER ILLUST.
sub42611-AC091
17X7JJ, #,TYPE A:REFER ILLUST.
17X4T,TYPE C:REFER ILLUST.
42601CNUT, HUB (FOR AXLE)
sub90942-A1009
42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR
sub42607-06012
42607AVALVE SUB-ASSY, TIRE PRESSURE MONITOR (FOR SPARE)
sub42607-06012
42611GVALVE (FOR TUBELESS TIRE)
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
42611JVALVE (FOR TUBELESS TIRE SPARE)
TYPE A:REFER ILLUST.
SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
SPORTS PACKAGE&SPARE TIRE-STD TIRE ALUMINIUM 17" C,TYPE B:REFER ILLUST.
42611UCAP, TIRE VALVE
42611WCAP, TIRE VALVE (FOR SPARE)
10 parts on this diagram · 3 diagrams in section
