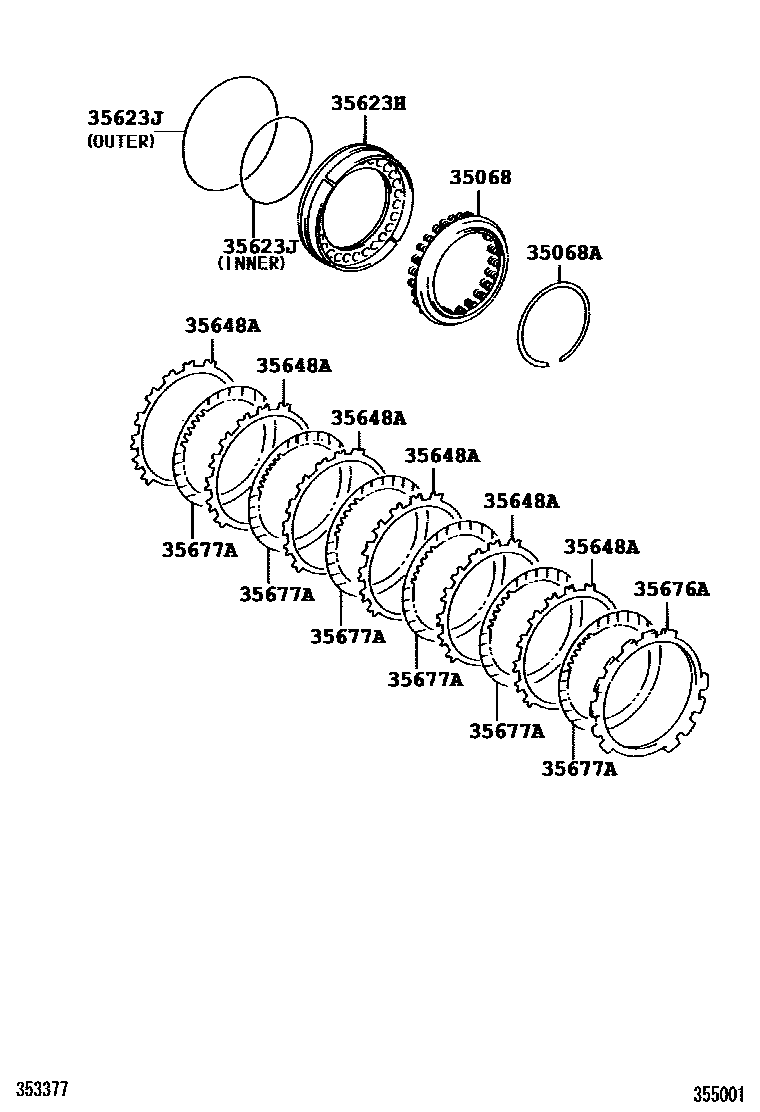

BRAKE NO.3, 1ST & REVERSE BRAKE (ATM)

0001 1U151E 0002 1U660E

35068SPRING SUB-ASSY, 1ST & REVERSE BRAKE RETURN

main35068-06010iGSX30200501-200707

35068ARING, SHAFT SNAP (FOR 1ST & REVERSE BRAKE RETURN SPRING)

main90520-99035iGSX30200501-200512

main90520-A0006iGSX30200512-200707

35623PISTON, BRAKE, NO.3

main35623-08020iGSX30201001

(L)

main35623-33060iGSX30200707

(J)

sub35623-48030

35623HPISTON, 1ST & REVERSE BRAKE

main35623-08010iGSX30200501-200707

35623JRING, O (FOR 1ST & REVERSE BRAKE)

main90080-30081iGSX30200501-200707

INNER

main90080-30083iGSX30200501-200707

OUTER

35648APLATE, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35692-06011iGSX30200501-200707

35676AFLANGE, BRAKE (FOR 1ST & REVERSE BRAKE)

main35678-06010iGSX30200501-200707

T=1.8,MARK 1

main35678-06020iGSX30200501-200707

T=1.9,MARK 2

main35678-06030iGSX30200501-200707

T=2.0,MARK 3

main35678-06040iGSX30200501-200707

T=2.1,MARK 4

main35678-06050iGSX30200501-200707

T=2.2,MARK 5

main35678-06060iGSX30200501-200707

T=2.3,MARK 6

main35678-06070iGSX30200501-200707

T=2.4,MARK 7

main35678-06080iGSX30200501-200707

T=2.5,MARK 8

35677ADISC, CLUTCH (FOR 1ST & REVERSE BRAKE)

main35682-06010iGSX30200501-200707

8 parts on this diagram · 2 diagrams in section
