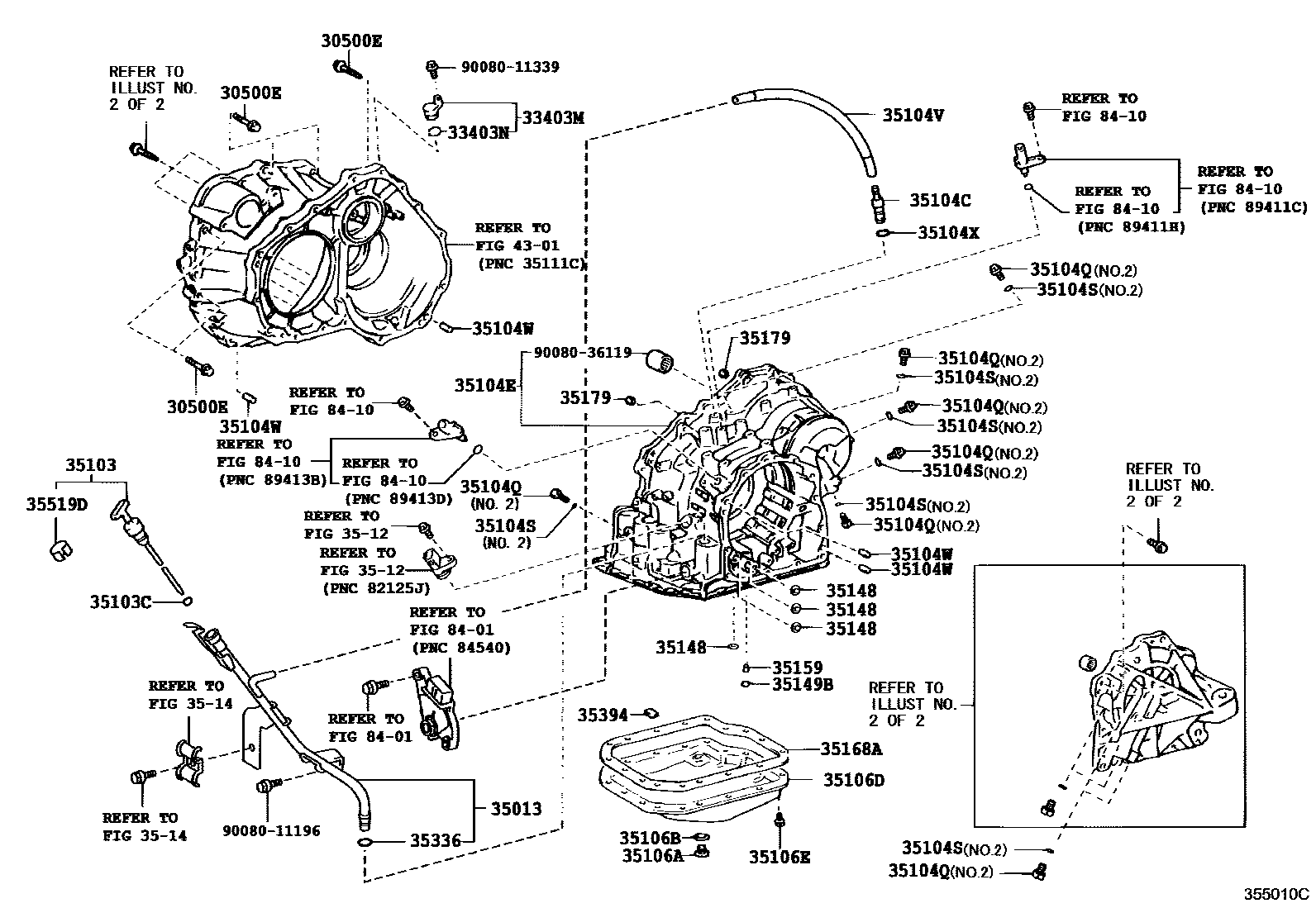

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-30
*10-1.25PX41-30,NO.3
*12-1.25PX55-30,NO.1
*12-1.25PX55-30
*12-1.25PX65-30
*12-1.25PX50-30,NO.2
*12-1.25PX50-30
33403MCOVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM)
33403NRING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL
35103CRING, O
35104CPLUG, BREATHER, NO.2 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
sub35104-08011
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
NO.1,(L)
NO.2
NO.1,(J)
(J)
(L)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
NO.1,(L)
(L)
NO.2
(J)
NO.1,(J)
35104XRING, O (FOR BREATHER PLUG)
35106APLUG SUB-ASSY, DRAIN (ATM)
(J)
35106BGASKET, DRAIN PLUG (ATM)
(J)
(L)
35106DPAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL
(L)
(L)
(J)
35106EBOLT (FOR TRANSAXLE OIL PAN)
(L),NO.2
(J),NO.1 & NO.2
(L),NO.1
3512
3514
35148GASKET, GOVERNOR APPLY, NO.1
(L)
(J)
35149BGASKET, TRANSAXLE CASE 2ND BRAKE
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
(L)
(J)
35179GASKET, OVERDRIVE BRAKE
sub35179-32010
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
(L)
(J)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
4301
8401
8410
9008011196
main90080-11196
9008011339
main90080-11339
9008036119
main90080-36119
33 parts on this diagram · 3 diagrams in section
