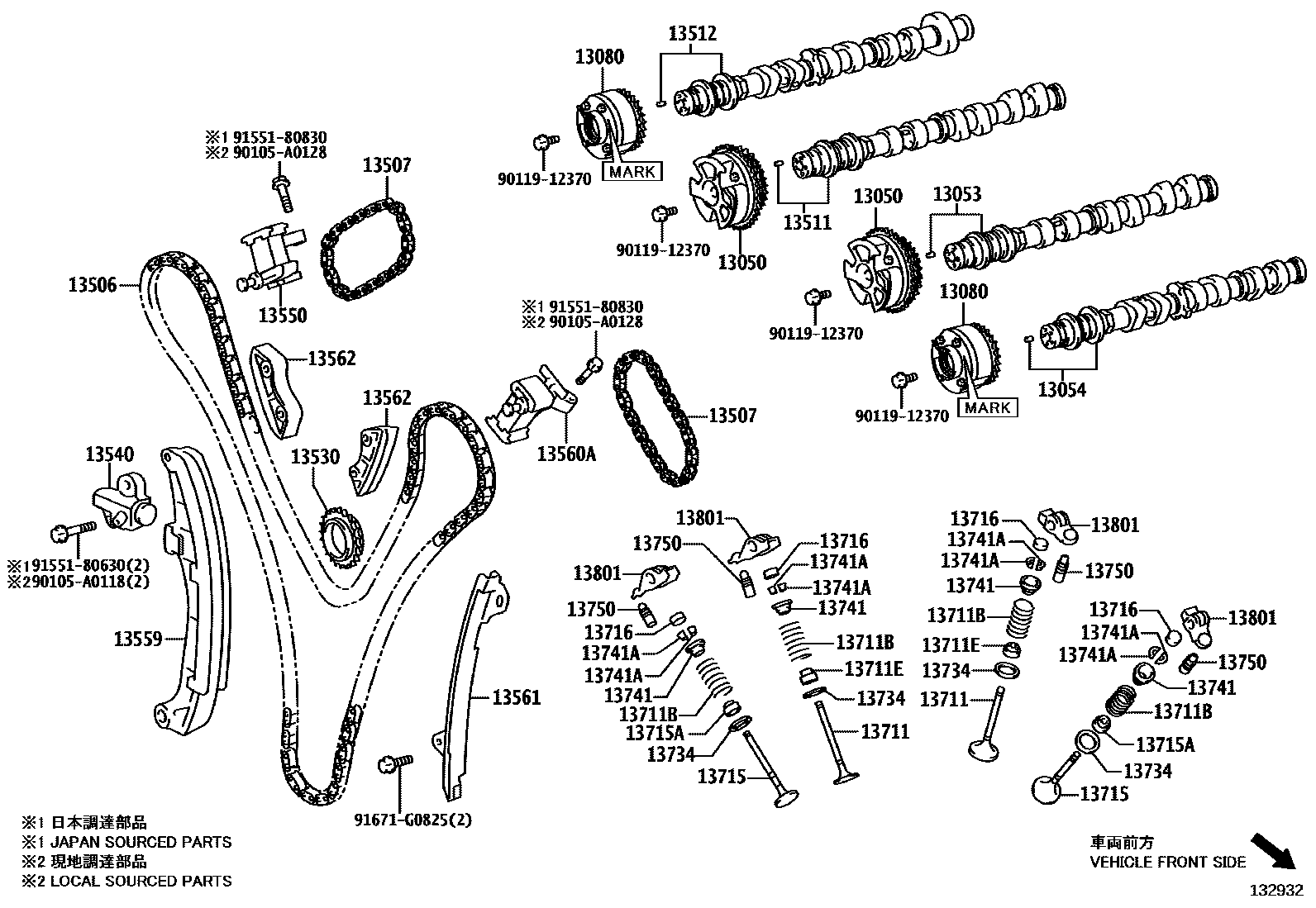

CAMSHAFT & VALVE
13053CAMSHAFT SUB-ASSY, NO.3
sub13053-31031
13054CAMSHAFT SUB-ASSY, NO.4
sub13054-31031
13080GEAR ASSY, CAMSHAFT TIMING EXHAUST, LH
(J),MARK=C
13507CHAIN SUB-ASSY, NO.2
(L)
(J)
13511CAMSHAFT
sub13501-31061
13512CAMSHAFT, NO.2
sub13502-31041
13540TENSIONER ASSY, CHAIN, NO.1
*132
13550TENSIONER ASSY, CHAIN, NO.2
(L)
(J)
13559SLIPPER, CHAIN TENSIONER
(L)
(J)
13560ATENSIONER ASSY, CHAIN, NO.3
(L)
(J)
13561DAMPER, CHAIN VIBRATION, NO.1
*133
*132
13562DAMPER, CHAIN VIBRATION, NO.2
(L)
(J)
13711VALVE, INTAKE
(L)
13711BSPRING, COMPRESSION(FOR INNER)
(J)
(L)
13711ESEAL, INTAKE VALVE STEM OIL
(L)
(J)
13715ASEAL, EXHAUST VALVE STEM OIL
(L)
(J)
13716CAP, VALVE STEM
13734SEAT, VALVE SPRING
(L)
(J)
13741RETAINER, VALVE SPRING
(L)
(J)
13741ALOCK, VALVE SPRING RETAINER
(J)
(L)
13801ARM SUB-ASSY, VALVE ROCKER, NO.1
(L)
(J)
90105A0118
main90105-A0118
90105A0128
main90105-A0128
9011912370
main90119-12370
9155180630
main91551-80630
9155180830
main91551-80830
91671G0825
main91671-G0825
32 parts on this diagram · 1 diagram in section
