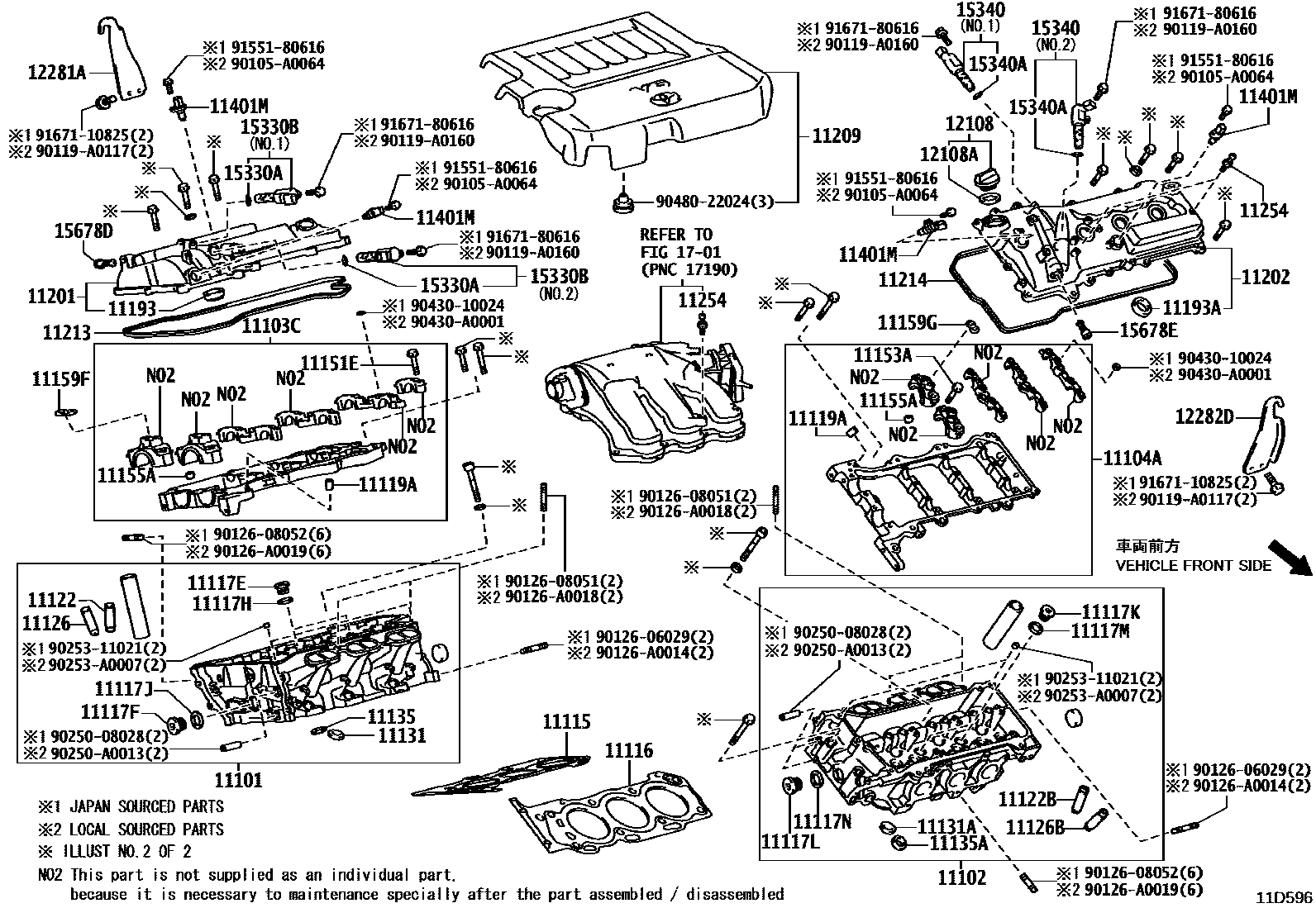

CYLINDER HEAD
11101HEAD SUB-ASSY, CYLINDER
sub11101-39536
11102HEAD, CYLINDER, LH
sub11102-39056
11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1
11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2
11117HGASKET(FOR WATER HOLE)
11117JGASKET(FOR CYLINDER HEAD SCREW PLUG)
11117KPLUG, W/HEAD STRAIGHT SCREW, LH NO.1
11117LPLUG, W/HEAD STRAIGHT SCREW, LH NO.2
11117MGASKET(FOR WATER HOLE NO.2)
11117NGASKET(FOR CYLINDER HEAD SCREW PLUG NO.2)
11119APIN, STRAIGHT, NO.1
L=13.8,OD=5.0
11122BUSH, INTAKE VALVE GUIDE
O/S 0.05
11122BBUSH, INTAKE VALVE GUIDE, NO.2
O/S 0.05
11126BUSH, EXHAUST VALVE GUIDE
11126BBUSH, EXHAUST VALVE GUIDE, NO.2
11131SEAT, INTAKE VALVE
STD,(L)
STD,(J)
O/S 0.03,(L)
O/S 0.03
O/S 0.03
11131ASEAT, INTAKE VALVE, NO.2
STD,(L)
STD,(J)
O/S 0.03,(L)
O/S 0.03
O/S 0.03
11135SEAT, EXHAUST VALVE
STD,(L)
STD,(J)
STD,(J)
O/S 0.03
O/S 0.03,(L)
O/S 0.03
O/S 0.03
O/S 0.03,(J)
11135ASEAT, EXHAUST VALVE, NO.2
STD,(L)
STD,(J)
STD,(J)
O/S 0.03,(L)
O/S 0.03
O/S 0.03
O/S 0.03,(J)
O/S 0.03
11151EBOLT(FOR CAMSHAFT BEARING CAP TO HOUSING RH, NO.1)
(J)
(L)
11153ABOLT(FOR CAMSHAFT BEARING CAP TO HOUSING LH, NO.1)
(J)
(L)
11155APIN, RING W/HEAD
(J)
11159FGASKET, CAMSHAFT BEARING CAP OIL HOLE, RH
(L)
(J)
11159GGASKET, CAMSHAFT BEARING CAP OIL HOLE, LH
(L)
(J)
11213GASKET, CYLINDER HEAD COVER
(L)
(J)
11214GASKET, CYLINDER HEAD COVER, NO.2
(L)
(J)
11254BRACKET, V-BANK COVER, NO.1
11401MSENSOR, CRANK POSITION, NO.2
12281AHANGER, ENGINE, NO.1
sub12281-31121
12282DHANGER, ENGINE, NO.2
15330BVALVE ASSY, CAM TIMING OIL CONTROL, RH
(L),NO.1
NO.1
NO.2
(L),NO.2
(J),NO.1
(J),NO.2
15340VALVE ASSY, CAM TIMING OIL CONTROL, LH
NO.1
(L),NO.1
(J),NO.1
NO.2
(L),NO.2
(J),NO.2
15678DFILTER, OIL CONTROL VALVE, RH
15678EFILTER, OIL CONTROL VALVE, LH
1701
90105A0064
main90105-A0064
90119A0117
main90119-A0117
90119A0160
main90119-A0160
9012606029
main90126-06029
9012608051
main90126-08051
9012608052
main90126-08052
90126A0014
main90126-A0014
90126A0018
main90126-A0018
90126A0019
main90126-A0019
9025008028
main90250-08028
90250A0013
main90250-A0013
9025311021
main90253-11021
90253A0007
main90253-A0007
9043010024
main90430-10024
90430A0001
main90430-A0001
9048022024
main90480-22024
9155180616
main91551-80616
9167110825
main91671-10825
9167180616
main91671-80616
67 parts on this diagram · 2 diagrams in section
