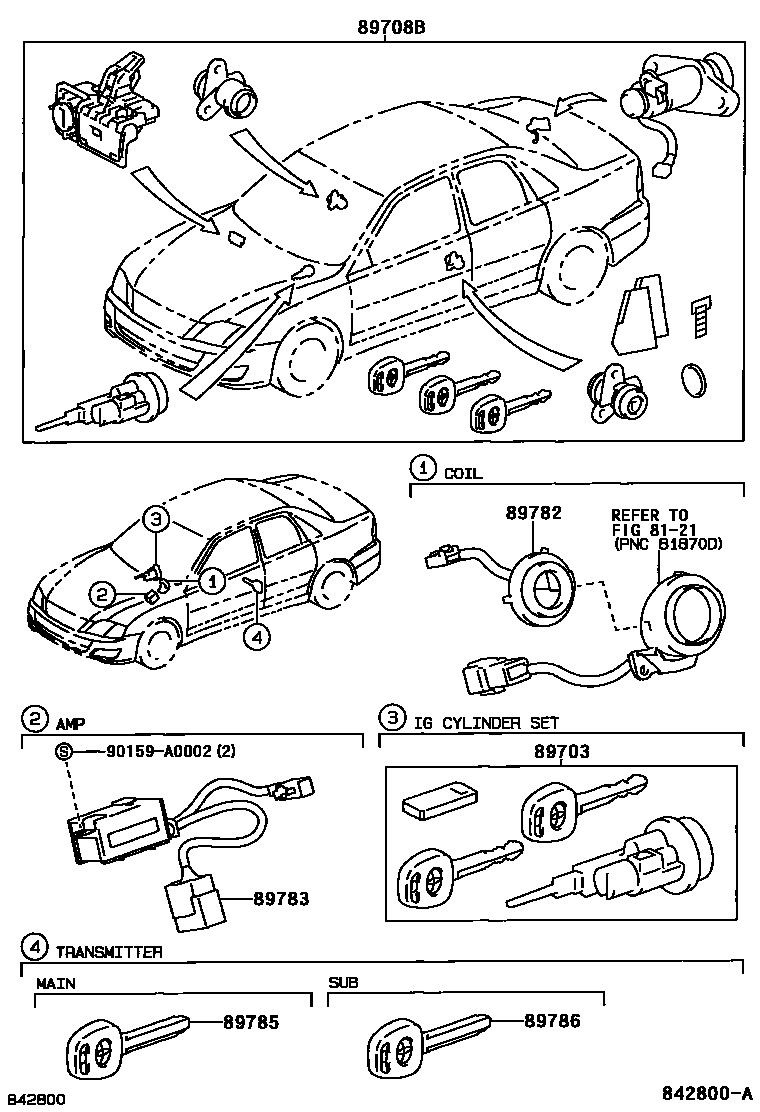

ANTI-THEFT DEVICE

0001 1IMMOBILIZER 0002 1THEFT WARNING SYSTEM

8121

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-41030iMCX20199908-200206

89708BCYLINDER & TRANSMITTER SET, WIRELESS DOOR LOCK

main89708-41050iMCX20..XLS199908-200008

sub89708-41090

sub84903-41070

main89708-41051iMCX20..XLS200008-200206

sub89708-41110

sub84903-41070

main89708-41080iMCX20..XL199908-200008

main89708-41090iMCX20..XL199908-200008

W(KEY LESS ENTRY)

sub89708-41110

main89708-41100iMCX20..XL200008-200206

main89708-41110iMCX20..XL200008-200206

W(KEY LESS ENTRY)

89782COIL, TRANSPONDER KEY

main89782-07010iMCX20199908-200206

(L)

main89782-41020iMCX20199908-200206

(J)

89783AMPLIFIER, TRANSPONDER KEY

main89783-07010iMCX20199908-200206

PART NUMBER LABEL=89783-07010

main89783-41020iMCX20199908-200206

PART NUMBER LABEL=89783-41020

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-41020iMCX20199908-200206

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-41020iMCX20199908-200206

90159A0002

main90159-A0002

8 parts on this diagram · 2 diagrams in section
