METER

0001 1 0002 1ACCESSORY METER 0003 1ACCESSORY METER 0004 1ACCESSORY METER 0005 1ACCESSORY METER 0006 1ACCESSORY METER, W(NAVIGATION

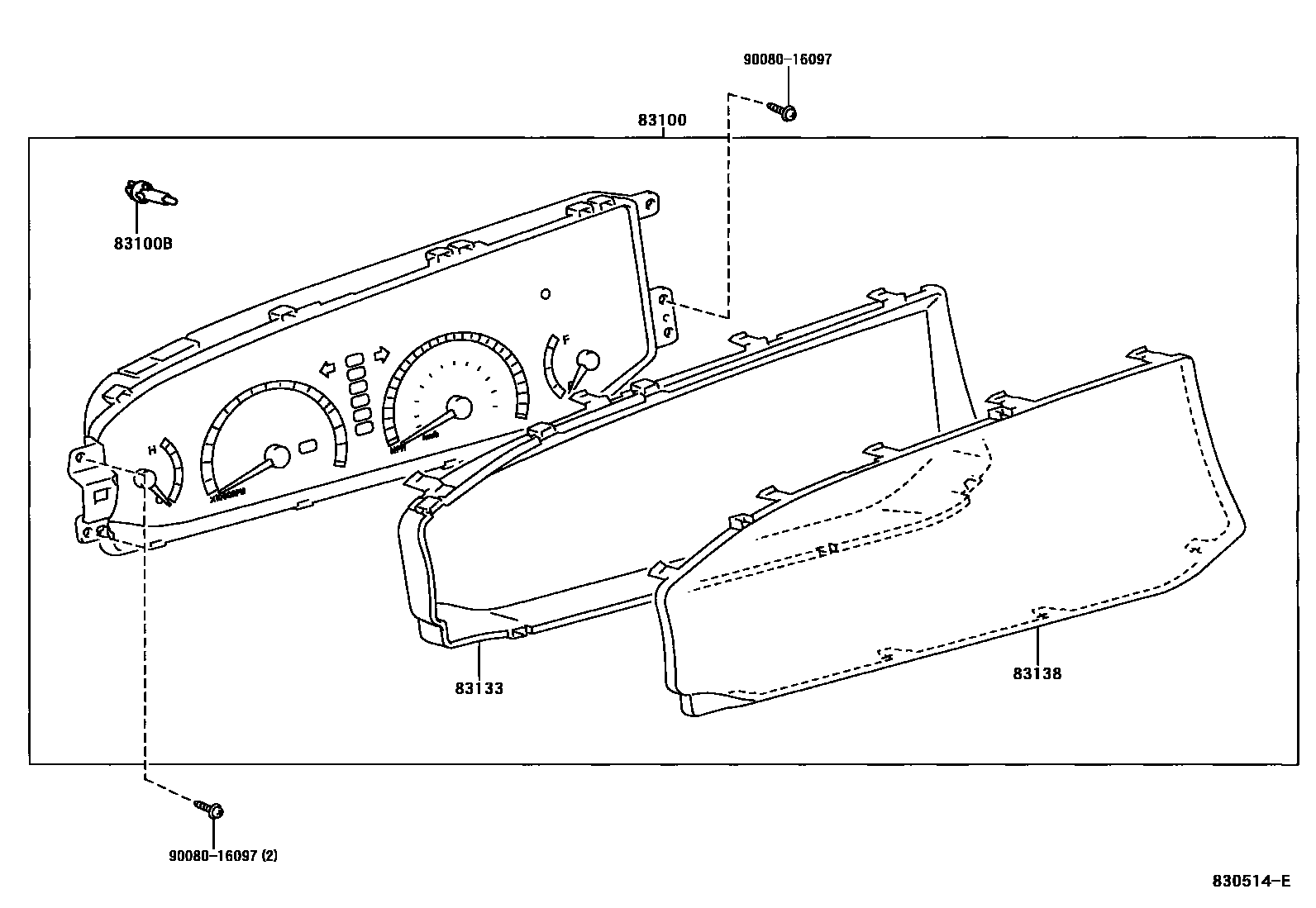

83100METER ASSY, COMBINATION

main83800-07020iMCX20..XL..USA199908-200005

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83800-07021iMCX20..USA200005-200206

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83800-07030iMCX20..XL..CND199908-200005

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83800-07031iMCX20..XL..CND200005-200206

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83800-07050iMCX20..4FC..XLS..USA199908-200005

TAIWAN SPEC

main83800-07051iMCX20..4FC..XLS..USA200005-200206

TAIWAN SPEC

main83800-07110iMCX20..XL..USA199908-200005

main83800-07111iMCX20..XL..USA200005-200206

main83800-07120iMCX20..XL..CND199908-200005

main83800-07121iMCX20..XL..CND200005-200206

main83810-07060iMCX20..USA200206

W(IMMOBILIZER)

main83810-07070iMCX20..CND200206

W(IMMOBILIZER)

main83810-07090iMCX20..XL..USA200206

main83810-07100iMCX20..XL..CND200206

83100BBULB, COMBINATION METER, NO.1

main83120-02030iMCX20199908-200206

14V 1.4W,W(SOCKET)

83133PLATE, COMBINATION METER, NO.1

main83811-07020iMCX20199908-200005

main83811-07021iMCX20200005-200206

83138GLASS, SPEEDOMETER

main83852-07020iMCX20199908-200005

main83852-07020iMCX20..XLS..CND200005-200206

W(THEFT-DETERRENT SYSTEM(IMMOBILIZER))

main83852-07021iMCX20..XL;MCX20..XLS..USA200005-200206

9008016097

main90080-16097

5 parts on this diagram · 6 diagrams in section
