E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

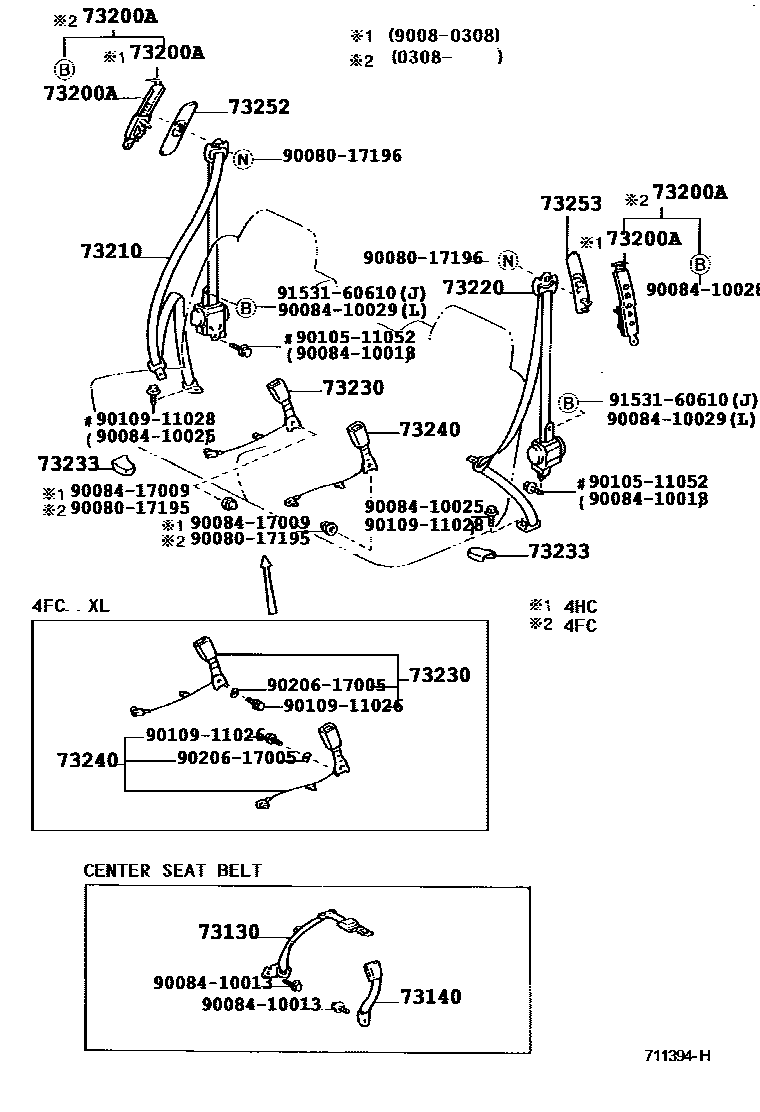

Parts diagram
73130BELT ASSY, FRONT SEAT LAP TYPE, RH
main73130-AC010-A0i199908-200501
IVORY,TRIM0#
main73130-AC010-B0i199908-200501
CHARCOAL,TRIM1#
main73130-AC010-E1i199908-200501
FAWN,TRIM4#
73140BELT ASSY, FRONT SEAT LAP TYPE, LH
main73140-AC010-A0i199908-200501
IVORY,TRIM0#
main73140-AC010-B0i199908-200501
CHARCOAL,TRIM1#
main73140-AC010-E1i199908-200501
FAWN,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-AC010i199908-200206
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-AC020-A0i199908-200112
IVORY,TRIM0#
sub73210-AC021
main73210-AC020-B0i199908-200112
CHARCOAL,TRIM1#
sub73210-AC021
main73210-AC020-E1i199908-200112
FAWN,TRIM4#
sub73210-AC021
main73210-AC021-A0i200112-200501
IVORY,TRIM0#
main73210-AC021-B0i200112-200501
CHARCOAL,TRIM1#
main73210-AC021-E1i200112-200501
FAWN,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-AC010-A0i199908-200112
IVORY,TRIM0#
sub73220-AC011
main73220-AC010-B0i199908-200112
CHARCOAL,TRIM1#
sub73220-AC011
main73220-AC010-E1i199908-200112
FAWN,TRIM4#
sub73220-AC011
main73220-AC011-A0i200112-200501
IVORY,TRIM0#
main73220-AC011-B0i200112-200501
CHARCOAL,TRIM1#
main73220-AC011-E1i200112-200501
FAWN,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-AC010-A0i199908-200501
IVORY,TRIM0#
main73230-AC010-B0i199908-200501
STONE,TRIM1#
main73230-AC010-E0i199908-200501
FAWN,TRIM4#
main73230-AC020-A0i199908-200501
W(POWER SEAT),IVORY,TRIM0#
main73230-AC020-B0i199908-200501
W(POWER SEAT),STONE,TRIM1#
main73230-AC020-E0i199908-200501
W(POWER SEAT),FAWN,TRIM4#
main73230-AC030-A0i199908-200501
IVORY,TRIM0#
main73230-AC030-B0i199908-200501
STONE,TRIM1#
main73230-AC030-E0i199908-200501
FAWN,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-A1i199908-200501
IVORY,TRIM0#
sub73233-33010
main73233-33010-B6i199908-200501
STONE,TRIM1#
sub73233-33010
main73233-33010-E3i199908-200501
FAWN,TRIM4#
sub73233-33010
73240BELT ASSY, FRONT SEAT INNER, LH
main73230-AC010-A0i199908-200206
IVORY,TRIM0#
main73230-AC010-B0i199908-200206
STONE,TRIM1#
main73230-AC010-E0i199908-200206
FAWN,TRIM4#
main73230-AC012-A0i200206-200212
IVORY,TRIM0#
sub73230-AC060
main73230-AC012-B0i200206-200212
STONE,TRIM1#
sub73230-AC060
main73230-AC012-E0i200206-200212
FAWN,TRIM4#
sub73230-AC060
main73230-AC020-A0i199908-200206
W(POWER SEAT),IVORY,TRIM0#
main73230-AC020-B0i199908-200206
W(POWER SEAT),STONE,TRIM1#
main73230-AC020-E0i199908-200206
W(POWER SEAT),FAWN,TRIM4#
main73230-AC022-A0i200206-200212
W(POWER SEAT),IVORY,TRIM0#
sub73230-AC070
main73230-AC022-B0i200206-200212
W(POWER SEAT),STONE,TRIM1#
sub73230-AC070
main73230-AC022-E0i200206-200212
W(POWER SEAT),FAWN,TRIM4#
sub73230-AC070
main73230-AC060-A0i200212-200501
IVORY,TRIM0#
main73230-AC060-B0i200212-200501
STONE,TRIM1#
main73230-AC060-E0i200212-200501
FAWN,TRIM4#
main73230-AC070-A0i200212-200501
W(POWER SEAT),IVORY,TRIM0#
main73230-AC070-B0i200212-200501
W(POWER SEAT),STONE,TRIM1#
main73230-AC070-E0i200212-200501
W(POWER SEAT),FAWN,TRIM4#
main73240-AC010-A0i199908-200206
IVORY,TRIM0#
main73240-AC010-B0i199908-200206
STONE,TRIM1#
main73240-AC010-E0i199908-200206
FAWN,TRIM4#
main73240-AC012-A0i200206-200212
IVORY,TRIM0#
sub73240-AC040
main73240-AC012-B0i200206-200212
STONE,TRIM1#
sub73240-AC040
main73240-AC012-E0i200206-200212
FAWN,TRIM4#
sub73240-AC040
main73240-AC040-A0i200212-200501
IVORY,TRIM0#
main73240-AC040-B0i200212-200501
STONE,TRIM1#
main73240-AC040-E0i200212-200501
FAWN,TRIM4#
73252COVER, SHOULDER BELT ANCHOR ADJUST, RH
main73252-AC010-A0i199908-200501
IVORY,TRIM0#
main73252-AC010-B0i199908-200501
STONE,TRIM1#
main73252-AC010-E0i199908-200501
FAWN,TRIM4#
73253COVER, SHOULDER BELT ANCHOR ADJUST, LH
main73253-AC010-A0i199908-200501
IVORY,TRIM0#
main73253-AC010-B0i199908-200501
STONE,TRIM1#
main73253-AC010-E0i199908-200501
FAWN,TRIM4#
9008017195
main90080-17195
9008017196
main90080-17196
9008410013
main90084-10013
9008410025
main90084-10025
9008410028
main90084-10028
9008410029
main90084-10029
9008417009
main90084-17009
9010511052
main90105-11052
9010911026
main90109-11026
9010911028
main90109-11028
9020617005
main90206-17005
9153160610
main91531-60610

22 parts on this diagram · 2 diagrams in section
