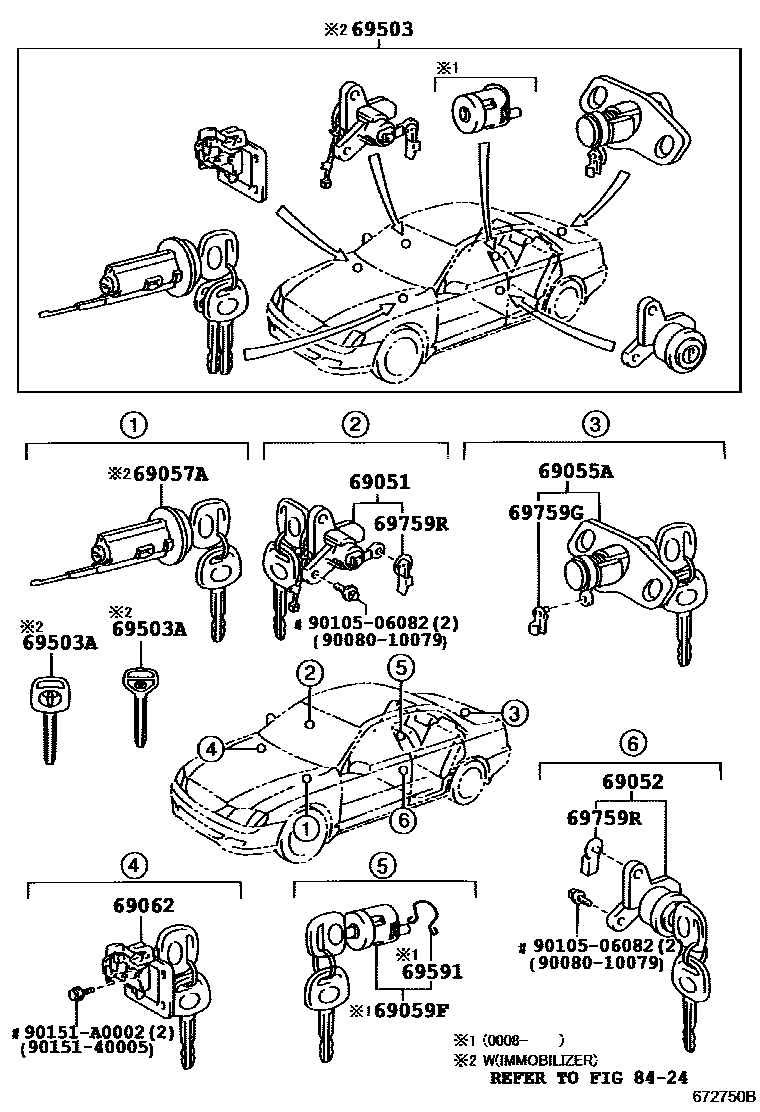

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
W(KEY LESS ENTRY)
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
69059FCYLINDER & KEY SET, REAR SEAT ARMREST LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
SUB KEY
69591RING, REAR SEAT ARMREST DOOR KEY CYLINDER
69759GSNAP, LUGGAGE DOOR LOCK CYLINDER
69759RSNAP, FRONT DOOR LOCK CYLINDER
WHITE
YELLOW
8424
9008010079
main90080-10079
9010506082
main90105-06082
9015140005
main90151-40005
90151A0002
main90151-A0002
16 parts on this diagram · 1 diagram in section
