REAR DOOR PANEL & GLASS

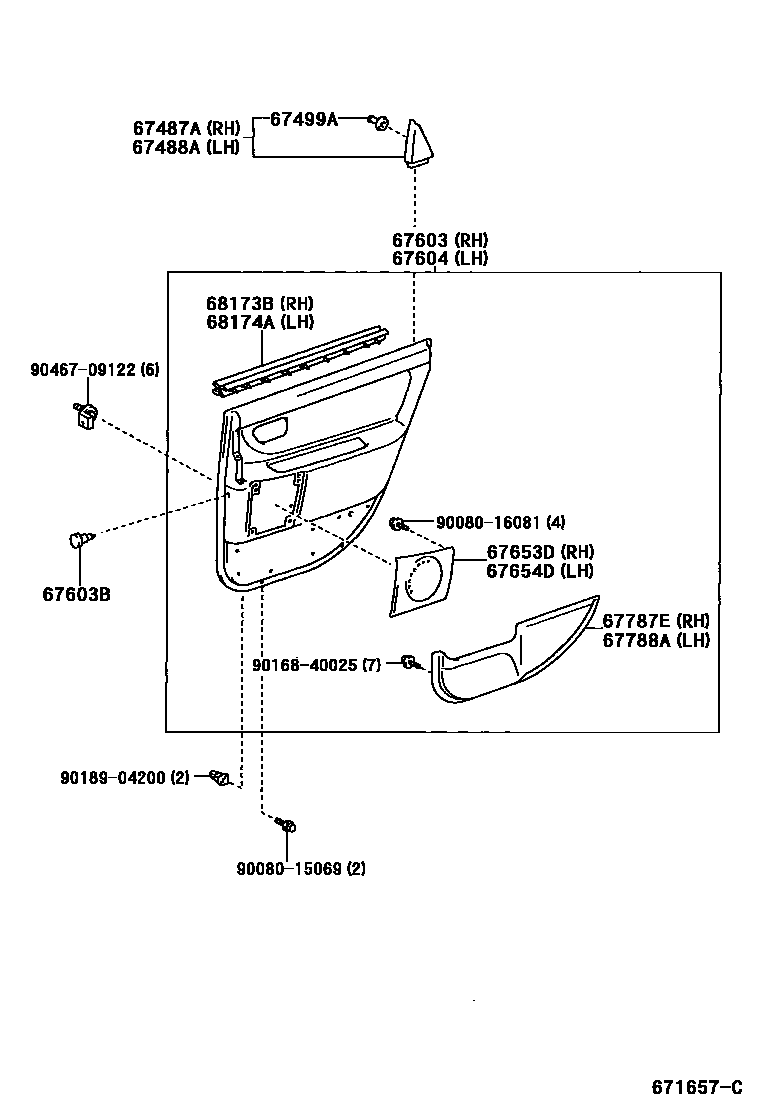

Parts diagram
67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH
main67487-AC010i199908-200004
sub67487-AC011
main67487-AC011i200004-200206
67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH
main67488-AC010i199908-200004
sub67488-AC011
main67488-AC011i200004-200206
67499ARETAINER, REAR DOOR LOWER FRAME BRACKET GARNISH
main67499-06010i199908-200206
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
main67630-AC070-A0i199908-200206
DOOR TRIM=TYPE B-*104,IVORY,TRIM0#
sub67630-AC070
main67630-AC070-A2i200206-200501
DOOR TRIM=TYPE B-*104,IVORY,TRIM0#
sub67630-AC070
main67630-AC070-B0i199908-200206
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
sub67630-AC070
main67630-AC070-B2i200206-200501
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
sub67630-AC070
main67630-AC070-E0i199908-200206
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
sub67630-AC070
main67630-AC070-E2i200206-200501
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
sub67630-AC070
main67630-AC080-A0i199908-200206
DOOR TRIM=TYPE A-*104,IVORY,TRIM0#
sub67630-AC080
main67630-AC080-A1i200206-200501
DOOR TRIM=TYPE A-*104,IVORY,TRIM0#
sub67630-AC080
main67630-AC080-B0i199908-200206
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
sub67630-AC080
main67630-AC080-B1i200206-200501
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
sub67630-AC080
main67630-AC080-E0i199908-200206
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
sub67630-AC080
main67630-AC080-E1i200206-200501
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
sub67630-AC080
main67630-AC090-A0i199908-200206
DOOR TRIM=TYPE C OR TYPE D-*104,IVORY,TRIM0#
sub67630-AC090
main67630-AC090-A2i199908-200501
DOOR TRIM=TYPE C OR TYPE D-*104,IVORY,TRIM0#
sub67630-AC090
main67630-AC090-B0i199908-200206
DOOR TRIM=TYPE C OR TYPE D-*104,STONE,TRIM1#
sub67630-AC090
main67630-AC090-B2i199908-200501
DOOR TRIM=TYPE C OR TYPE D-*104,STONE,TRIM1#
sub67630-AC090
main67630-AC090-E0i199908-200206
DOOR TRIM=TYPE C OR TYPE D-*104,FAWN,TRIM4#
sub67630-AC090
main67630-AC090-E2i199908-200501
DOOR TRIM=TYPE C OR TYPE D-*104,FAWN,TRIM4#
sub67630-AC090
main67630-AC100-A0i200004-200206
DOOR TRIM=TYPE C-*104 & W(ASH TRAY),IVORY,TRIM0#
sub67630-AC100
main67630-AC100-B0i200004-200206
DOOR TRIM=TYPE C-*104 & W(ASH TRAY),STONE,TRIM1#
sub67630-AC100
main67630-AC100-E0i200004-200206
DOOR TRIM=TYPE C-*104 & W(ASH TRAY),FAWN,TRIM4#
sub67630-AC100
main67630-AC110-A0i200004-200206
DOOR TRIM=TYPE A-*104 & W(ASH TRAY),IVORY,TRIM0#
sub67630-AC110
main67630-AC110-B0i200004-200206
DOOR TRIM=TYPE A-*104 & W(ASH TRAY),STONE,TRIM1#
sub67630-AC110
main67630-AC110-E0i200004-200206
DOOR TRIM=TYPE A-*104 & W(ASH TRAY),FAWN,TRIM4#
sub67630-AC110
67603BCLIP(FOR REAR DOOR TRIM BOARD)
main90467-07066-A0i199908-200501
IVORY,TRIM0#
sub90467-07066
main90467-07066-E8i199908-200501
FAWN,TRIM4#
sub90467-07066
main90467-07066-P4i199908-200501
STONE,TRIM1#
sub90467-07066
67604BOARD SUB-ASSY, REAR DOOR TRIM, LH
main67640-AC070-A0i199908-200206
DOOR TRIM=TYPE B-*104,IVORY,TRIM0#
sub67640-AC070
main67640-AC070-A2i200206-200501
DOOR TRIM=TYPE B-*104,IVORY,TRIM0#
sub67640-AC070
main67640-AC070-B0i199908-200206
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
sub67640-AC070
main67640-AC070-B2i200206-200501
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
sub67640-AC070
main67640-AC070-E0i199908-200206
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
sub67640-AC070
main67640-AC070-E2i200206-200501
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
sub67640-AC070
main67640-AC080-A0i199908-200206
DOOR TRIM=TYPE A-*104,IVORY,TRIM0#
sub67640-AC080
main67640-AC080-A1i200206-200501
DOOR TRIM=TYPE A-*104,IVORY,TRIM0#
sub67640-AC080
main67640-AC080-B0i199908-200206
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
sub67640-AC080
main67640-AC080-B1i200206-200501
DOOR TRIM=TYPE A-*104,STONE,TRIM1#
sub67640-AC080
main67640-AC080-E0i199908-200206
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
sub67640-AC080
main67640-AC080-E1i200206-200501
DOOR TRIM=TYPE A-*104,FAWN,TRIM4#
sub67640-AC080
main67640-AC090-A0i199908-200206
DOOR TRIM=TYPE C OR TYPE D-*104,IVORY,TRIM0#
sub67640-AC090
main67640-AC090-A2i199908-200501
DOOR TRIM=TYPE C OR TYPE D-*104,IVORY,TRIM0#
sub67640-AC090
main67640-AC090-B0i199908-200206
DOOR TRIM=TYPE C OR TYPE D-*104,STONE,TRIM1#
sub67640-AC090
main67640-AC090-B2i199908-200501
DOOR TRIM=TYPE C OR TYPE D-*104,STONE,TRIM1#
sub67640-AC090
main67640-AC090-E0i199908-200206
DOOR TRIM=TYPE C OR TYPE D-*104,FAWN,TRIM4#
sub67640-AC090
main67640-AC090-E2i199908-200501
DOOR TRIM=TYPE C OR TYPE D-*104,FAWN,TRIM4#
sub67640-AC090
main67640-AC100-A0i200004-200206
DOOR TRIM=TYPE C-*104 & W(ASH TRAY),IVORY,TRIM0#
sub67640-AC100
main67640-AC100-B0i200004-200206
DOOR TRIM=TYPE C-*104 & W(ASH TRAY),STONE,TRIM1#
sub67640-AC100
main67640-AC100-E0i200004-200206
DOOR TRIM=TYPE C-*104 & W(ASH TRAY),FAWN,TRIM4#
sub67640-AC100
main67640-AC110-A0i200004-200206
DOOR TRIM=TYPE A-*104 & W(ASH TRAY),IVORY,TRIM0#
sub67640-AC110
main67640-AC110-B0i200004-200206
DOOR TRIM=TYPE A-*104 & W(ASH TRAY),STONE,TRIM1#
sub67640-AC110
main67640-AC110-E0i200004-200206
DOOR TRIM=TYPE A-*104 & W(ASH TRAY),FAWN,TRIM4#
sub67640-AC110
67653DGRILLE SUB-ASSY, REAR DOOR SPEAKER, RH
main67653-AC030-A0i199908-200501
IVORY,TRIM0#
main67653-AC030-B0i199908-200501
STONE,TRIM1#
main67653-AC030-E0i199908-200501
FAWN,TRIM4#
67654DGRILLE SUB-ASSY, REAR DOOR SPEAKER, LH
main67654-AC030-A0i199908-200501
IVORY,TRIM0#
main67654-AC030-B0i199908-200501
STONE,TRIM1#
main67654-AC030-E0i199908-200501
FAWN,TRIM4#
67787EPOCKET, REAR DOOR TRIM, RH
main67787-AC010-A0i199908-200501
DOOR TRIM=TYPE B-*104,IVORY,TRIM0#
main67787-AC010-B0i199908-200501
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
main67787-AC010-E0i199908-200501
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67787-AC020-A0i199908-200501
DOOR TRIM=TYPE A OR TYPE C OR TYPE D-*104,IVORY,TRIM0#
main67787-AC020-B0i199908-200501
DOOR TRIM=TYPE A OR TYPE C OR TYPE D-*104,STONE,TRIM1#
main67787-AC020-E0i199908-200501
DOOR TRIM=TYPE A OR TYPE C OR TYPE D-*104,FAWN,TRIM4#
67788APOCKET, REAR DOOR TRIM, LH
main67788-AC010-A0i199908-200501
DOOR TRIM=TYPE B-*104,IVORY,TRIM0#
main67788-AC010-B0i199908-200501
DOOR TRIM=TYPE B-*104,STONE,TRIM1#
main67788-AC010-E0i199908-200501
DOOR TRIM=TYPE B-*104,FAWN,TRIM4#
main67788-AC020-A0i199908-200501
DOOR TRIM=TYPE A OR TYPE C OR TYPE D-*104,IVORY,TRIM0#
main67788-AC020-B0i199908-200501
DOOR TRIM=TYPE A OR TYPE C OR TYPE D-*104,STONE,TRIM1#
main67788-AC020-E0i199908-200501
DOOR TRIM=TYPE A OR TYPE C OR TYPE D-*104,FAWN,TRIM4#
68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH
main68173-AC010i199908-200501
68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH
main68173-AC010i199908-200501
9008015069
main90080-15069
9008016081
main90080-16081
9016840025
main90168-40025
9018904200
main90189-04200
9046709122
main90467-09122

17 parts on this diagram · 2 diagrams in section
