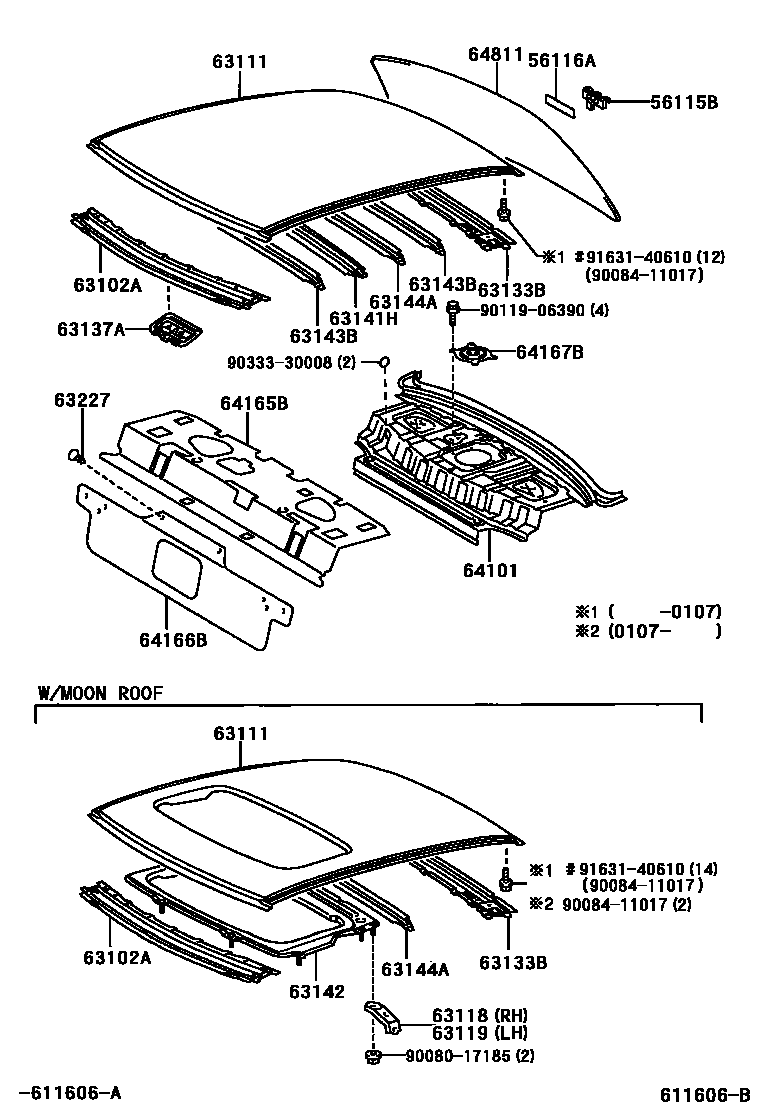

ROOF PANEL & BACK WINDOW GLASS
56115BSTOPPER, BACK WINDOW GLASS, NO.1
56116ASPACER, WINDSHIELD GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
63111PANEL, ROOF
W(MOON ROOF)
63118SUPPORT, ROOF PANEL, RH
63119SUPPORT, ROOF PANEL, LH
63137ABRACKET, DOME LAMP, NO.1
63141HREINFORCEMENT, ROOF PANEL, CENTER
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
W(MOON ROOF)
63227CLIP, ROOF WIND DEFLECTOR PANEL
64101PANEL SUB-ASSY, UPPER BACK
64165BCOVER, UPPER BACK PANEL HOLE, NO.1
W(SPEAKER)
64166BCOVER, UPPER BACK PANEL HOLE, NO.2
64167BCOVER, UPPER BACK PANEL HOLE, NO.3
64811GLASS, BACK WINDOW
*UVCEHTT,T=3.5,GREEN
*UVCEHTT,T=3.5,GREEN
*UVCEHTT,T=3.5,GREEN,W(AM/FM ETR CST CD 7 SPEAKER)
9008017185
main90080-17185
9008411017
9011906390
9033330008
9163140610
23 parts on this diagram · 2 diagrams in section
