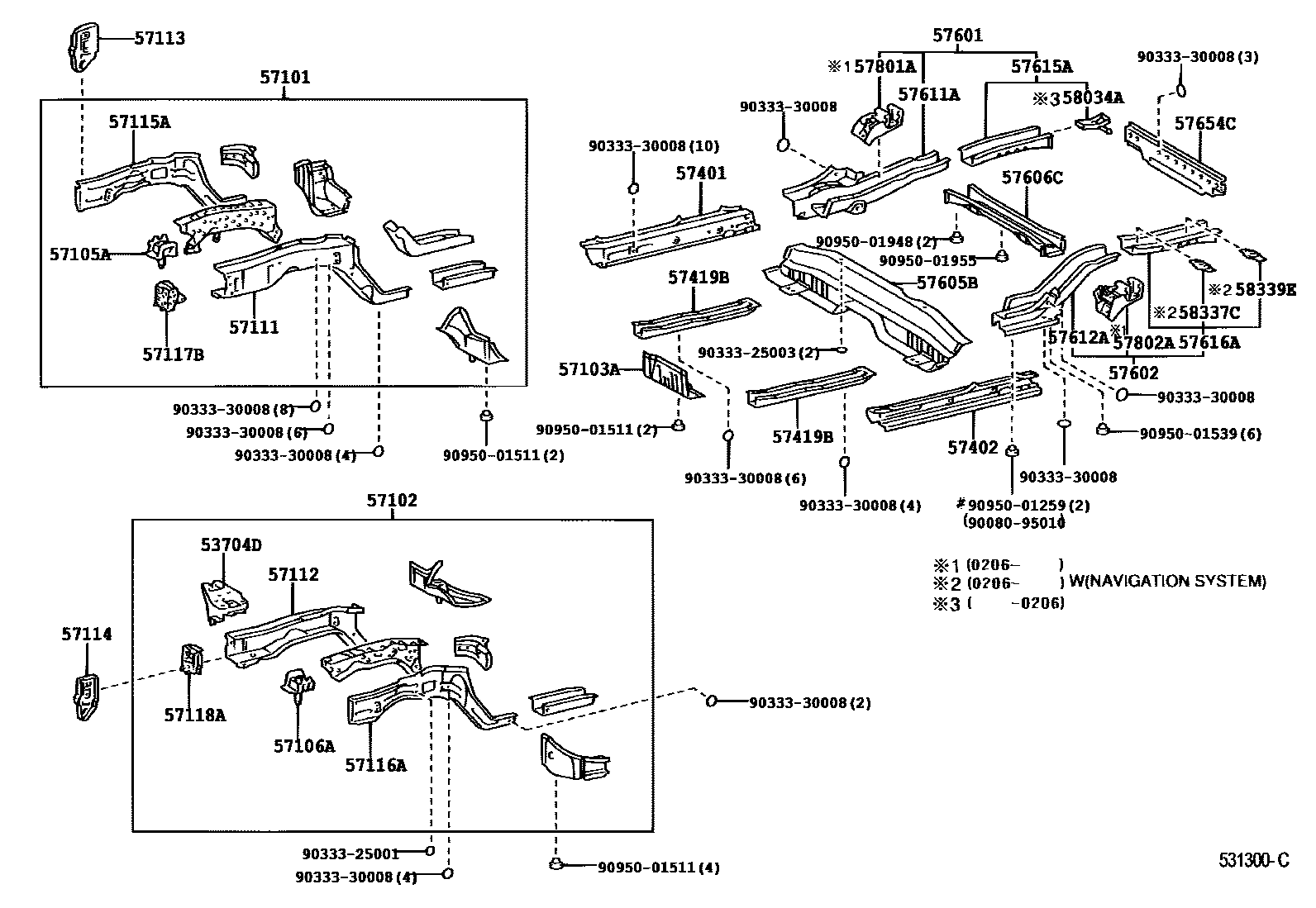

FLOOR SIDE MEMBER
53704DSUPPORT SUB-ASSY, BATTERY, LH
57101MEMBER SUB-ASSY, FRONT SIDE, RH
57102MEMBER SUB-ASSY, FRONT SIDE, LH
57103ACROSSMENBER SUB-ASSY, FLOOR, NO.3
57105APLATE SUB-ASSY, FRONT SIDE MEMBER, RH
57106APLATE SUB-ASSY, FRONT SIDE MEMBER, LH
57111MEMBER, FRONT SIDE, RH
57112MEMBER, FRONT SIDE, LH
57113EXTENSION, FRONT SIDE MEMBER, RH
57114EXTENSION, FRONT SIDE MEMBER, LH
57115APLATE, FRONT SIDE MEMBER, OUTER RH
57116APLATE, FRONT SIDE MEMBER, OUTER LH
(L)
(J)
57117BREINFORCEMENT, FRONT BUMPER MOUNTING, RH
57118AREINFORCEMENT, FRONT BUMPER MOUNTING, LH
57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH
57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH
57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR
57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH
57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH
W(NAVIGATION SYSTEM)
57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1
57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57611AMEMBER, REAR FLOOR SIDE, RH
57612AMEMBER, REAR FLOOR SIDE, LH
57615AMEMBER, REAR FLOOR SIDE, REAR RH
sub57615-06931
57616AMEMBER, REAR FLOOR SIDE, REAR LH
W(NAVIGATION SYSTEM)
57654CMEMBER, REAR FLOOR CROSS, NO.3
57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH
57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH
58034ABRACKET SUB-ASSY, EXHAUST PIPE SUPPORT, REAR
58337CREINFORCEMENT, REAR FLOOR PAN, NO.1 LH
58339EREINFORCEMENT, REAR FLOOR PAN, NO.2 LH
9008095010
main90080-95010
9033325001
9033325003
9033330008
9095001259
9095001511
9095001539
9095001948
9095001955
40 parts on this diagram · 1 diagram in section
