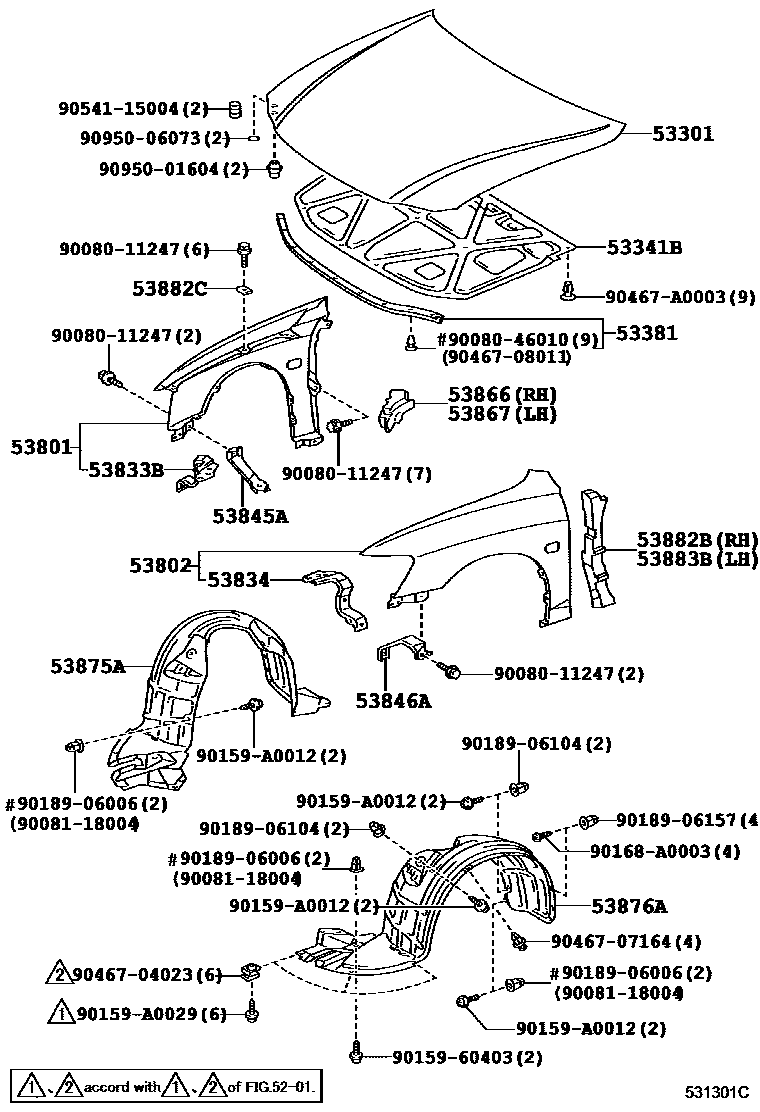

HOOD & FRONT FENDER
53301HOOD SUB-ASSY
53341BINSULATOR, HOOD
53381SEAL, HOOD TO RADIATOR SUPPORT
53801FENDER SUB-ASSY, FRONT RH
53802FENDER SUB-ASSY, FRONT LH
53833BPANEL, FRONT FENDER SIDE, RH
53834PANEL, FRONT FENDER SIDE, LOWER LH
53845ABRACE, FRONT WHEEL OPENING APRON, RH
53846ABRACE, FRONT WHEEL OPENING APRON, LH
53866SEAL, FRONT FENDER TO COWL SIDE, RH
53867SEAL, FRONT FENDER TO COWL SIDE, LH
53875ALINER, FRONT FENDER, RH
53876ALINER, FRONT FENDER, LH
53882BSEAL, FRONT FENDER, RH
53882CSEAL, FRONT FENDER MAIN
53883BSEAL, FRONT FENDER, LH
9008011247
main90080-11247
9008046010
main90080-46010
9008118004
main90081-18004
9015960403
main90159-60403
90159A0012
main90159-A0012
90159A0029
main90159-A0029
90168A0003
main90168-A0003
9018906006
main90189-06006
9018906104
main90189-06104
9018906157
main90189-06157
9046704023
main90467-04023
9046707164
main90467-07164
9046708011
main90467-08011
90467A0003
main90467-A0003
9054115004
main90541-15004
9095001604
main90950-01604
9095006073
main90950-06073
33 parts on this diagram · 1 diagram in section
