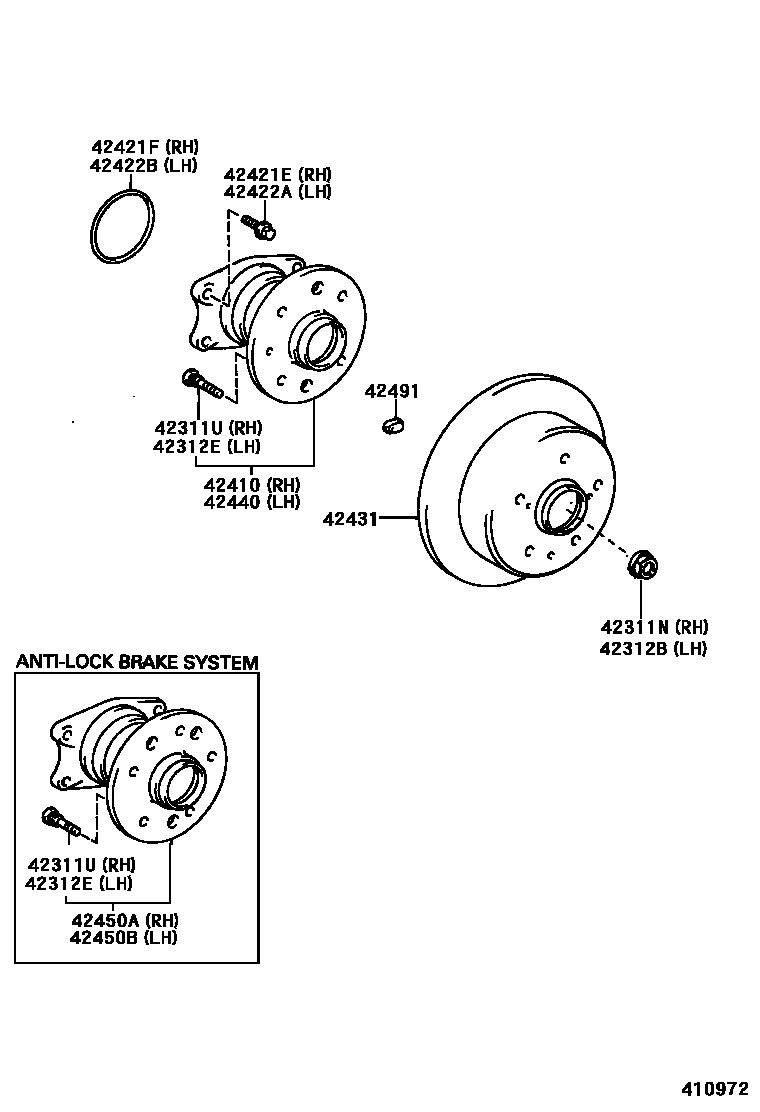

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-A0005iMCX20200306

main90179-20017iMCX20199908-200306

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02047iMCX20199908-200206

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-A0005iMCX20200306

main90179-20017iMCX20199908-200306

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02047iMCX20199908-200206

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-07010iMCX20199908-200206

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-10124iMCX20199908-200306

main90105-A0054iMCX20200306

42421FRING, O (FOR REAR AXLE BEARING CASE RH)

main90301-63003iMCX20199908-200108

sub90301-63006

main90301-63006iMCX20200108-200206

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-10124iMCX20199908-200306

main90105-A0054iMCX20200306

42422BRING, O (FOR REAR AXLE BEARING CASE LH)

main90301-63003iMCX20199908-200108

sub90301-63006

main90301-63006iMCX20200108-200206

42431DISC, REAR

main42431-07030iMCX20199908-200501

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-07010iMCX20199908-200206

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-07010iMCX20199908-200206

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-07010iMCX20199908-200501

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iMCX20199908-200501

14 parts on this diagram · 1 diagram in section
