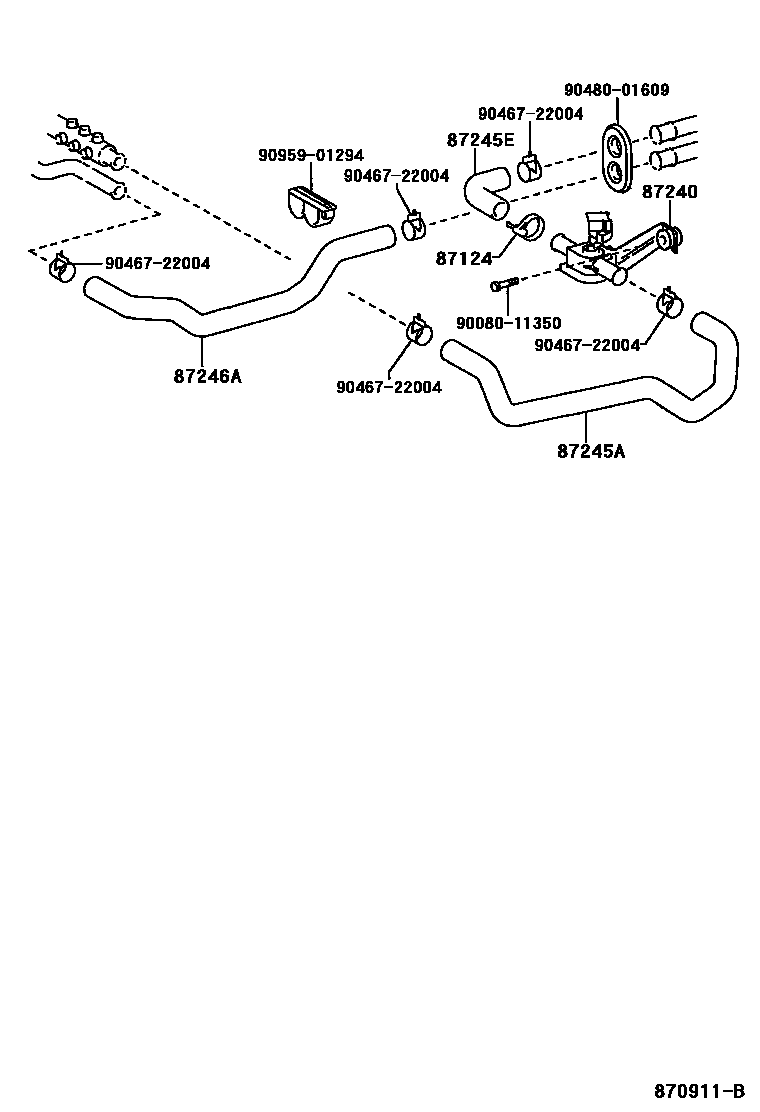

HEATING & AIR CONDITIONING - WATER PIPING

87124CLAMP, HEATER

main87124-28030iMCX10199409-199511

87240VALVE ASSY, HEATER WATER

main87240-06010iMCX10199409

87245AHOSE, HEATER WATER, INLET A

main87245-06060iMCX10199409

87245EHOSE, HEATER WATER, INLET E

main87245-06050iMCX10199409

87246AHOSE, HEATER WATER, OUTLET A

main87245-06070iMCX10199409

9008011350

main90080-11350

9046722004

main90467-22004

9048001609

main90480-01609

9095901294

main90959-01294

9 parts on this diagram · 1 diagram in section
