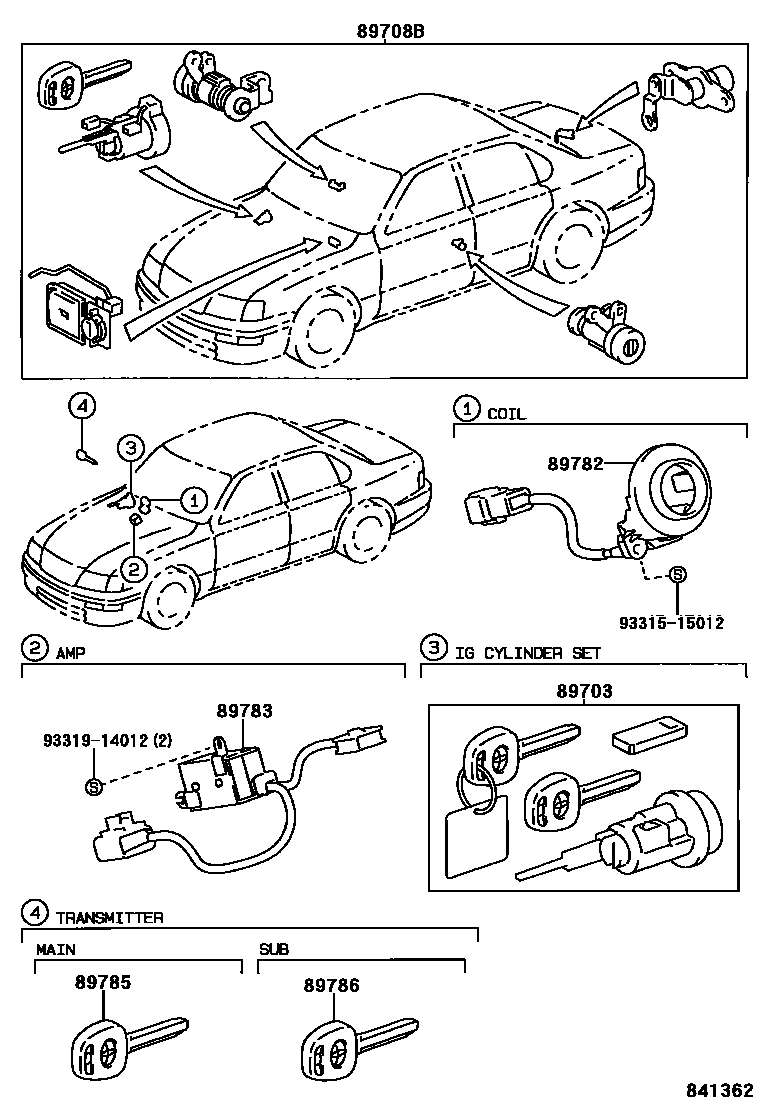

ANTI-THEFT DEVICE

89703CYLINDER & KEY SET, IGNITION W/TRANSPONDER

main89703-41010iMCX10..XLS;MCX10..XL..USA199709

sub89703-33030

89708BCYLINDER & TRANSMITTER SET, WIRELESS DOOR LOCK

main89708-41020iMCX10..XLS199709

main89708-41030iMCX10..XL..USA199709

89782COIL, TRANSPONDER KEY

main89782-41010iMCX10..XLS;MCX10..XL..USA199709

89783AMPLIFIER, TRANSPONDER KEY

main89783-41010iMCX10..XLS;MCX10..XL..USA199709

89785TRANSMITTER, TRANSPONDER KEY MASTER

main89785-41020iMCX10..XLS;MCX10..XL..USA199709

89786TRANSMITTER, TRANSPONDER KEY SUB

main89786-41020iMCX10..XLS;MCX10..XL..USA199709

9331515012

main93315-15012

9331914012

main93319-14012

8 parts on this diagram · 1 diagram in section
