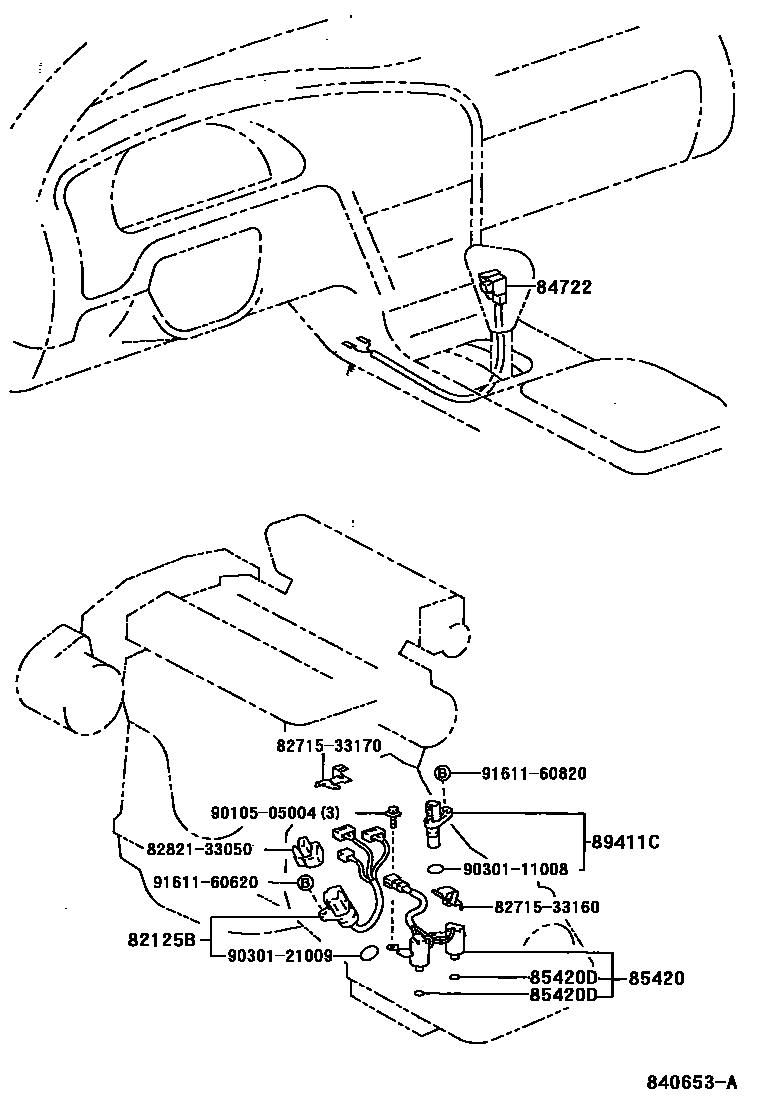

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

82125BWIRE, TRANSMISSION

main82125-33010iMCX10199409

84722SWITCH, TRANSMISSION CONTROL

main84722-07010-C0iMCX10..4FC199409-199808

BLACK,TRIM2#

sub84722-07011

main84722-07010-E0iMCX10..4FC199409-199608

DK. ROSE,TRIM41

sub84722-07011

main84722-07010-E1iMCX10..4FC199409-199709

ADOBE,TRIM42

sub84722-07011

main84722-07010-E2iMCX10..4FC199608-199808

ROSE STONE,TRIM43

sub84722-07011

main84722-07010-E3iMCX10..4FC199709-199808

SANDAL WOOD,TRIM44

sub84722-07011

main84722-07011-C0iMCX10..4FC199808

BLACK,TRIM2#

main84722-07011-E2iMCX10..4FC..XLS..USA199808

ROSE STONE,TRIM4#

main84722-07011-E2iMCX10..4FC..XLS..USA199808

ROSE STONE,TRIM43

main84722-07011-E3iMCX10..CND;MCX10..4FC..XL..USA199808

SANDAL WOOD,TRIM44

main84722-07011-E3iMCX10..CND;MCX10..4FC..XL..USA199808

SANDAL WOOD,TRIM4#

85420SOLENOID ASSY, TRANSMISSION

main85420-33010iMCX10199409

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-06004iMCX10199409

89411CSENSOR, SPEED

main89411-33010iMCX10199409-199908

TOYOTA

sub89413-24010

main89413-24010iMCX10199409-199908

AISIN

8271533160BRACKET,WIRING HARNESS CLAMP

main82715-33160

8271533170BRACKET,WIRING HARNESS CLAMP

main82715-33170

8282133050RETAINER, HEADLAMP HARNESS

main82821-33050

9010505004

main90105-05004

9030111008

main90301-11008

9030121009

main90301-21009

9161160620

main91611-60620

9161160820

main91611-60820

13 parts on this diagram · 1 diagram in section
