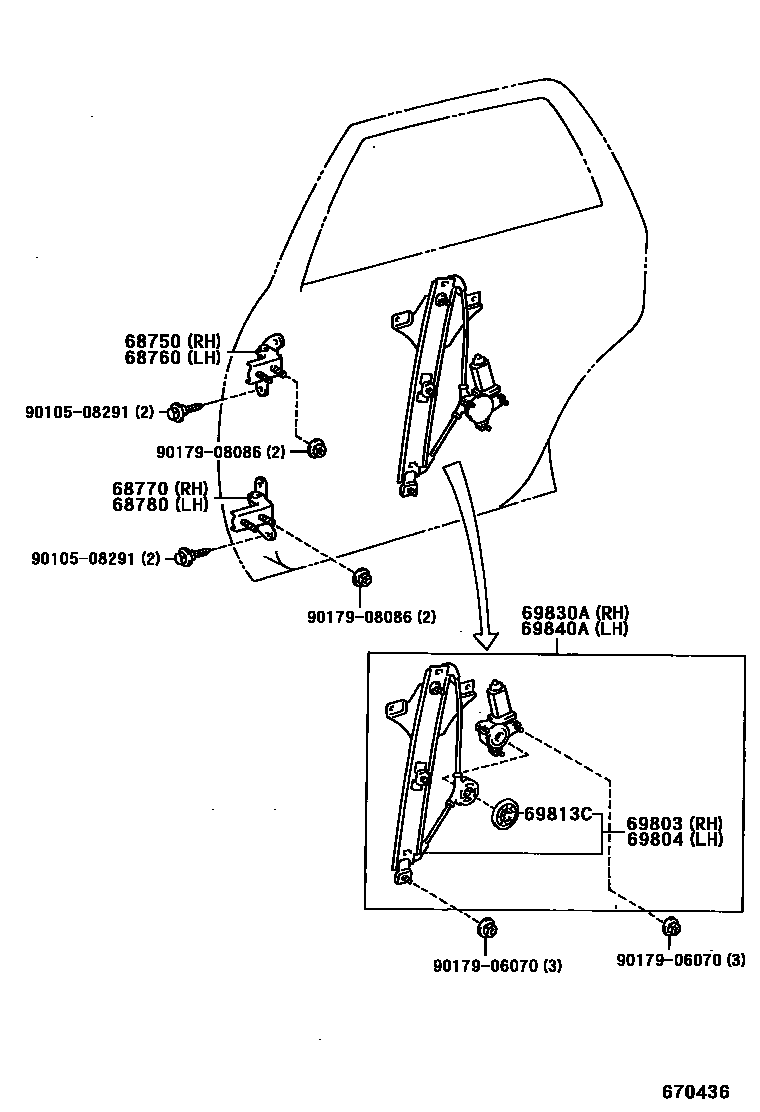

REAR DOOR WINDOW REGULATOR & HINGE

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-07010iMCX10199409

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-07010iMCX10199409

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-07010iMCX10199409

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-07010iMCX10199409

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-07010iMCX10199409

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-07010iMCX10199409

69813CPLATE, REAR DOOR POWER WINDOW REGULATOR BASE

main69811-06020iMCX10199409

RH

main69812-06010iMCX10199409

LH

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-07010iMCX10199409

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-07010iMCX10199409

9010508291

main90105-08291

9017906070

main90179-06070

9017908086

main90179-08086

12 parts on this diagram · 1 diagram in section
