PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

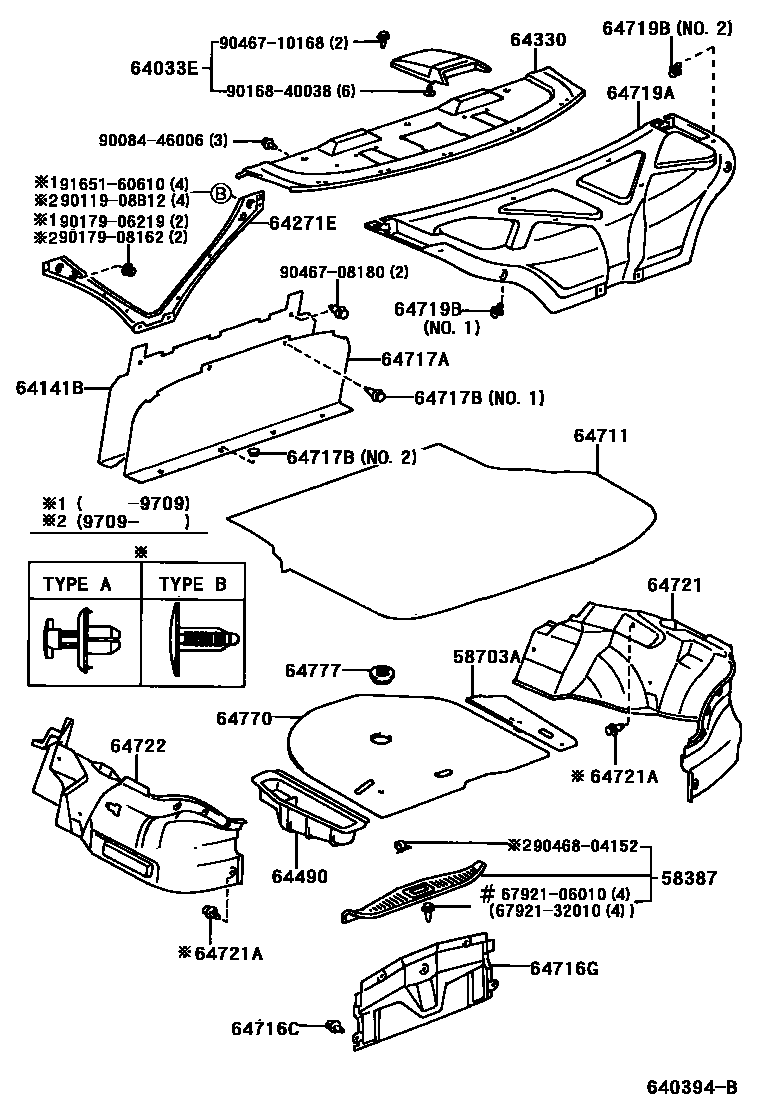

Parts diagram
58387PLATE, REAR FLOOR FINISH
main58387-AC010i199409-199709
main58387-AC020i199709
58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH
main58703-06010i199409
64033EGRILLE SUB-ASSY, REAR SPEAKER
main64033-AC010-C1i199409-199608
BLACK,TRIM2#
sub64033-AC010
main64033-AC010-C2i199608-199908
BLACK,TRIM2#
sub64033-AC010
main64033-AC010-E2i199409-199608
DK. ROSE,TRIM41
sub64033-AC010
main64033-AC010-E3i199409-199608
ADOBE,TRIM42
sub64033-AC010
main64033-AC010-E4i199608-199709
DK. ROSE,TRIM43
sub64033-AC010
main64033-AC010-E5i199608-199709
DK. ADOBE,TRIM42
sub64033-AC010
main64033-AC010-E6i199709-199908
ROSE STONE,TRIM43
sub64033-AC010
main64033-AC010-E6i199709-199908
ROSE STONE,TRIM4#
sub64033-AC010
main64033-AC010-E7i199709-199908
SANDALWOOD,TRIM44
sub64033-AC010
main64033-AC010-E7i199709-199908
SANDALWOOD,TRIM4#
sub64033-AC010
64141BSILENCER, BACK PANEL, NO.1
main64141-07010i199704
64271EPANEL, ROOM PARTITION
main64241-07010i199709
main64241-AC010i199409-199709
64330PANEL ASSY, PACKAGE TRAY TRIM
main64330-AC010-C0i199409-199709
BLACK,TRIM2#
sub64330-AC010
main64330-AC010-E0i199409-199608
DK. ROSE,TRIM41
sub64330-AC010
main64330-AC010-E0i199608-199709
DK. ROSE,TRIM43
sub64330-AC010
main64330-AC010-E1i199409-199709
ADOBE,TRIM42
sub64330-AC010
main64330-AC011-C0i199709-199908
BLACK,TRIM2#
main64330-AC011-E2i199709-199908
ROSE STONE,TRIM43
main64330-AC011-E2i199709-199908
ROSE STONE,TRIM4#
main64330-AC011-E3i199709-199908
SANDAL WOOD,TRIM44
main64330-AC011-E3i199709-199908
SANDAL WOOD,TRIM4#
main64330-AC020-C0i199409-199709
W(7 SPEAKER),BLACK,TRIM2#
sub64330-AC020
main64330-AC020-E0i199409-199608
W(7 SPEAKER),DK. ROSE,TRIM41
sub64330-AC020
main64330-AC020-E0i199608-199709
W(7 SPEAKER),DK. ROSE,TRIM43
sub64330-AC020
main64330-AC020-E1i199409-199709
W(7 SPEAKER),ADOBE,TRIM42
sub64330-AC020
main64330-AC021-C0i199709-199908
W(7 SPEAKER),BLACK,TRIM2#
main64330-AC021-E2i199709-199908
W(7 SPEAKER),ROSE STONE,TRIM4#
main64330-AC021-E2i199709-199908
W(7 SPEAKER),ROSE STONE,TRIM43
main64330-AC021-E3i199709-199908
W(7 SPEAKER),SANDAL WOOD,TRIM44
main64330-AC021-E3i199709-199908
W(7 SPEAKER),SANDAL WOOD,TRIM4#
64490TRAY ASSY, LUGGAGE COMPARTMENT SIDE
main64490-06010-C0i199409-199608
BLACK,TRIM2#,41,42
main64490-06010-C0i199608-199709
BLACK,TRIM2#,42,43
main64490-06010-C0i199709-199908
BLACK,TRIM2#,43,44
main64490-06010-C0i199811-199908
BLACK,TRIM2#,4#,43,44
64711MAT, LUGGAGE COMPARTMENT FLOOR
main64711-AC010-C1i199409-199608
BLACK,TRIM2#,41,42
sub64711-AC050
main64711-AC010-C1i199608-199709
BLACK,TRIM2#,42,43
sub64711-AC050
main64711-AC020-C1i199608-199709
W(7 SPEAKER),BLACK,TRIM2#,42,43
main64711-AC020-C1i199409-199608
W(7 SPEAKER),BLACK,TRIM2#,41,42
main64711-AC050-C0i199811-199908
BLACK,TRIM2#,4#,43,44
main64711-AC050-C0i199709-199908
BLACK,TRIM2#,43,44
64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)
main90467-07138i199801
main90467-07146i199409-199801
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
main64716-AC010-C1i199608-199709
BLACK,TRIM2#,42,43
main64716-AC010-C1i199409-199608
BLACK,TRIM2#,41,42
64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT
main64717-AC010-C1i199608-199709
BLACK,TRIM2#,42,43
main64717-AC010-C1i199409-199608
BLACK,TRIM2#,41,42
main64717-AC030-C0i199709-199908
BLACK,TRIM2#,43,44
main64717-AC030-C0i199811-199908
BLACK,TRIM2#,4#,43,44
64717BCLIP(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
main90467-08150i199409-199908
NO.1
main90467-09156-C0i199608-199709
BLACK,TRIM2#,42,43,NO.2
main90467-09156-C0i199709-199808
BLACK,TRIM2#,43,44
main90467-09156-C0i199709-199908
BLACK,TRIM2#,43,44,NO.2
main90467-09156-C0i199811-199908
BLACK,TRIM2#,4#,43,44,NO.2
main90467-09156-C0i199409-199608
BLACK,TRIM2#,41,42
64719ACOVER, LUGGAGE COMPARTMENT DOOR
main64719-AC010-C1i199409-199608
BLACK,TRIM2#,41,42
main64719-AC010-C1i199608-199709
BLACK,TRIM2#,42,43
main64719-AC020-C0i199811-199908
BLACK,TRIM2#,4#,43,44
main64719-AC020-C0i199709-199908
BLACK,TRIM2#,43,44
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
main90467-07117i199709-199801
NO.2
main90467-07138i199801
NO.2
main90467-07146i199409-199801
NO.1 & NO.2
64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH
main64721-AC010-C1i199409-199608
BLACK,TRIM2#,41,42
main64721-AC010-C1i199608-199709
BLACK,TRIM2#,42,43
main64721-AC020-C0i199709-199908
BLACK,TRIM2#,43,44
main64721-AC020-C0i199811-199908
BLACK,TRIM2#,4#,43,44
64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
main90467-07042-C0i199811-199908
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#,4#,43,44
sub90467-07042
sub90467-06175
main90467-07042-C0i199409-199608
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#,41,42
sub90467-07042
sub90467-06175
main90467-07042-C0i199608-199709
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#,42,43
sub90467-07042
sub90467-06175
main90467-07042-C0i199709-199908
TYPE B:REFER TO ILLUSTRATION,BLACK,TRIM2#,43,44
sub90467-07042
sub90467-06175
main90467-07146i199409-199908
TYPE A:REFER TO ILLUSTRATION
64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH
main64722-AC010-C1i199608-199709
BLACK,TRIM2#,42,43
main64722-AC010-C1i199409-199608
BLACK,TRIM2#,41,42
main64722-AC020-C1i199608-199709
W(7 SPEAKER),BLACK,TRIM2#,42,43
main64722-AC020-C1i199409-199608
W(7 SPEAKER),BLACK,TRIM2#,41,42
main64722-AC030-C0i199709-199908
BLACK,TRIM2#,43,44
main64722-AC030-C0i199811-199908
BLACK,TRIM2#,4#,43,44
64770COVER ASSY, SPARE WHEEL
main64770-06020i199409
64777CLAMP, SPARE WHEEL COVER
main64777-32030i199409
6792106010RETAINER, FRONT DOOR SCUFF PLATE
main67921-06010
6792132010RETAINER, FRONT DOOR SCUFF PLATE
main67921-32010
9008446006
main90084-46006
9011908B12
main90119-08B12
9016840038
main90168-40038
9017906219
main90179-06219
9017908162
main90179-08162
9046708180
main90467-08180
9046710168
main90467-10168
9046804152
main90468-04152
9165160610
main91651-60610

30 parts on this diagram · 1 diagram in section
