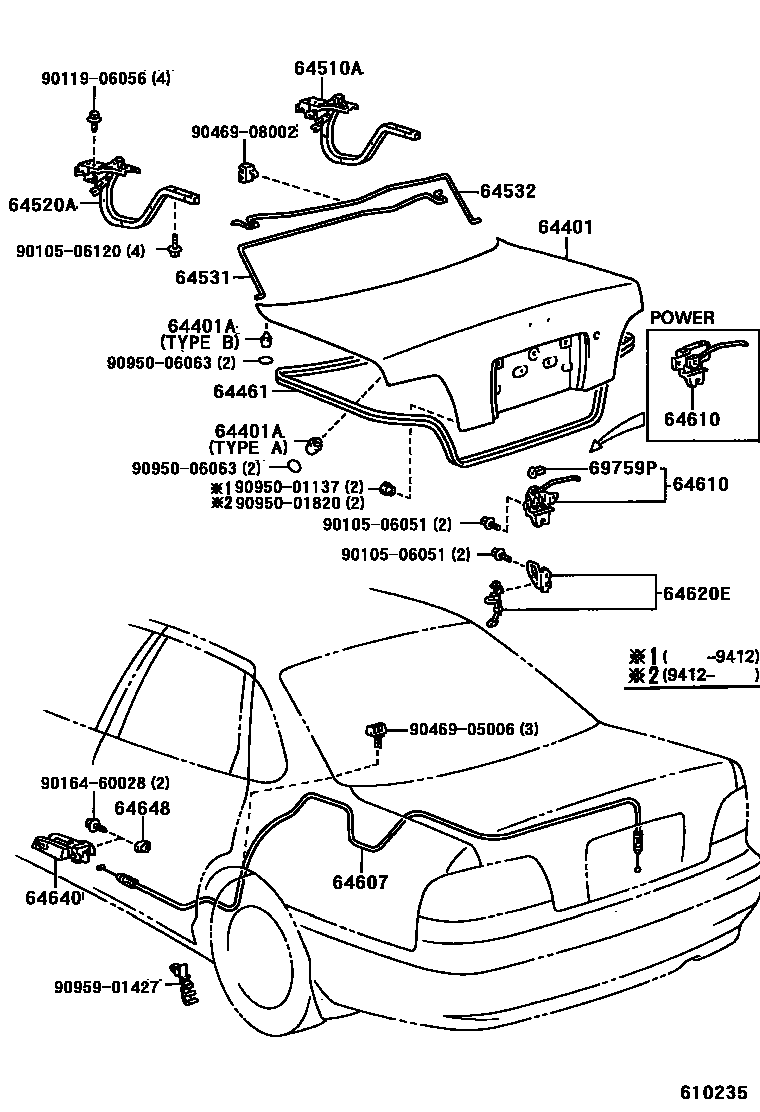

LUGGAGE COMPARTMENT DOOR & LOCK
64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR
64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)
TYPE A:REFER TO ILLUSTRATION
TYPE B:REFER TO ILLUSTRATION
64510AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH
64520AHINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH
64531BAR, LUGGAGE DOOR HINGE TORSION, RH
64532BAR, LUGGAGE DOOR HINGE TORSION, LH
64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL
64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR
64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR
64640OPENER ASSY, LUGGAGE DOOR LOCK
IVORY,TRIM44
BLUISH GRAY/BLACK,TRIM2#
QUARTZ/BLACK,TRIM41
LT.ADOBE/BLACK,TRIM42
64648GROMMET, LUGGAGE DOOR LOCK OPENER
69759PSNAP, DOOR LOCK CONTROL LINK
9010506051
main90105-06051
9010506120
main90105-06120
9011906056
main90119-06056
9016460028
main90164-60028
9046905006
main90469-05006
9046908002
main90469-08002
9095001137
main90950-01137
9095001820
main90950-01820
9095006063
main90950-06063
9095901427
main90959-01427
23 parts on this diagram · 1 diagram in section
