EPC Data

SIDE MEMBER

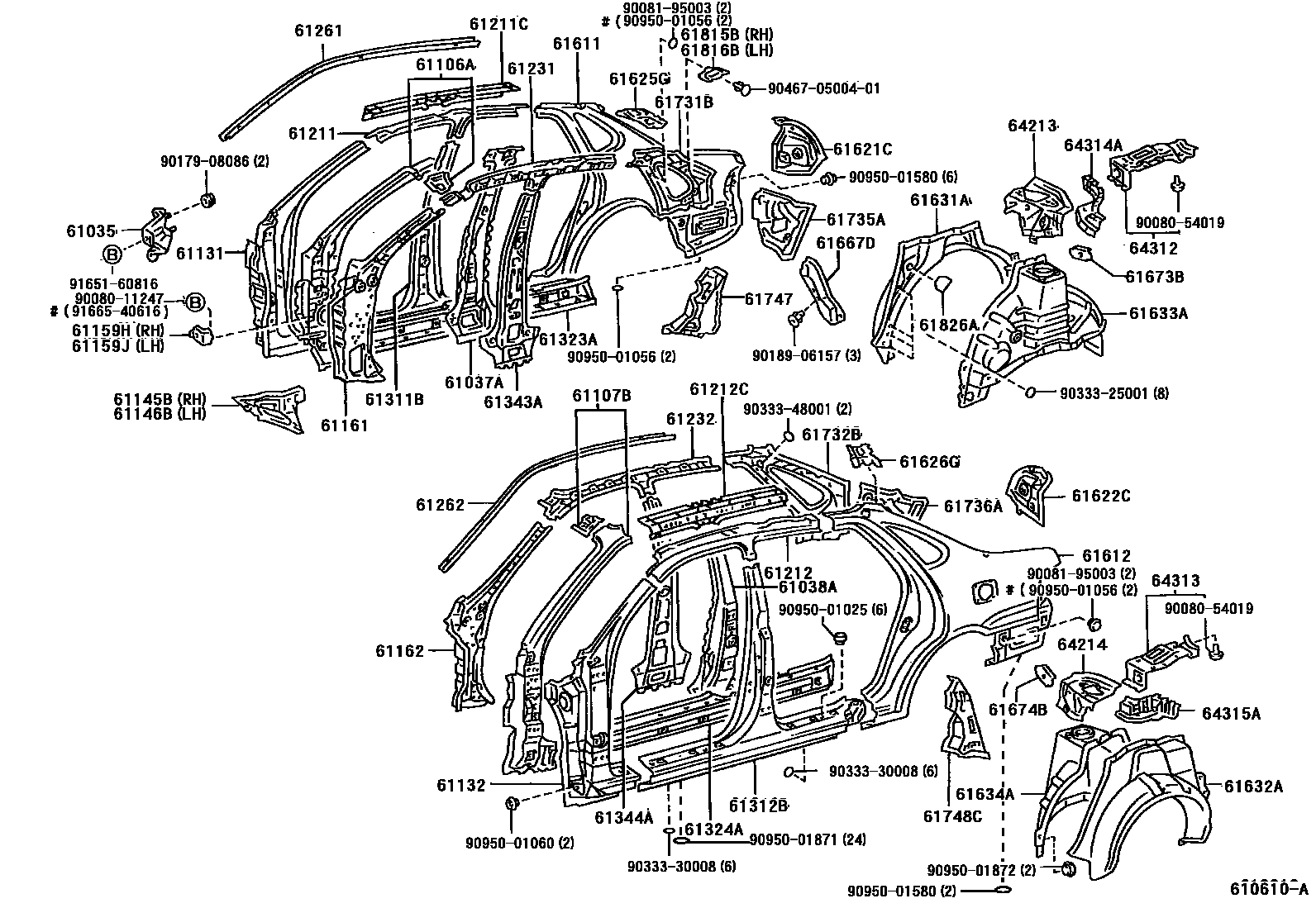

Parts diagram
61035BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, RH
main61165-33010i199409
61037AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, RH
main61037-07010i199409-199709
sub61037-07900
main61037-07900i199709
61038AREINFORCEMENT SUB-ASSY, CENTER BODY PILLAR, LH
main61038-07010i199409-199709
sub61038-07900
main61038-07900i199709
61106AREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH
main61106-07901i199409-199709
main61106-07903i199709
61107BREINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH
main61107-07900i199409-199709
main61107-07902i199709
61131PILLAR, FRONT BODY, UPPER OUTER RH
main61131-07010i199409-199709
sub61131-07011
sub90950-01871
main61131-07011i199709
61132PILLAR, FRONT BODY, UPPER OUTER LH
main61132-07010i199409-199709
sub61132-07011
sub90950-01871
main61132-07011i199709
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
main61145-41010i199409
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
main61146-41010i199409
61159HBRACKET, COWL SIDE PANEL TO FENDER APRON, RH
main61159-07010i199409
61159JBRACKET, COWL SIDE PANEL TO FENDER APRON, LH
main61159-07010i199409
61161PILLAR, FRONT BODY, UPPER INNER RH
main61161-07010i199409-199709
sub61161-07011
main61161-07011i199709
61162PILLAR, FRONT BODY, UPPER INNER LH
main61162-07010i199409-199709
sub61162-07011
main61162-07011i199709
61211RAIL, ROOF SIDE, OUTER RH
main61211-07010i199409-199709
sub61211-07011
main61211-07011i199709
61211CRAIL, ROOF SIDE, RH
main61211-07020i199709
61212RAIL, ROOF SIDE, OUTER LH
main61212-07010i199409-199709
sub61212-07011
main61212-07011i199709
61212CRAIL, ROOF SIDE, LH
main61212-07020i199709
61231RAIL, ROOF SIDE, INNER RH
main61231-07010i199409-199709
sub61231-07011
main61231-07011i199709
61232RAIL, ROOF SIDE, INNER LH
main61232-07010i199409-199709
sub61232-07011
main61232-07011i199709
61261CHANNEL, ROOF DRIP, RH
main61261-07010i199409
61262CHANNEL, ROOF DRIP, LH
main61262-07010i199409
61311BPILLAR, CENTER BODY, OUTER RH
main61311-07010i199409-199709
sub61311-07011
sub90950-01871
main61311-07011i199709
61312BPILLAR, CENTER BODY, OUTER LH
main61312-07010i199409-199709
sub61312-07011
sub90950-01871
main61312-07011i199709
61323AREINFORCEMENT, CENTER BODY PILLAR, LOWER RH
main61323-07900i199709-199808
sub61323-07901
main61323-07901i199808
61324AREINFORCEMENT, CENTER BODY PILLAR, LOWER LH
main61324-07900i199709-199808
sub61324-07901
main61324-07901i199808
61343APILLAR, CENTER BODY, INNER RH
main61343-07010i199409-199709
sub61343-07011
main61343-07011i199709
61344APILLAR, CENTER BODY, INNER LH
main61344-07010i199409-199709
sub61344-07011
main61344-07011i199709
61611PANEL, QUARTER, RH
main61601-07900i199409-199608
W(ANTENNA HOLE)
sub61601-07901
main61601-07902i199608-199709
sub61601-07903
main61601-07903i199709
main61601-07904i199709
KOREA SPEC OR TAIWAN SPEC
61612PANEL, QUARTER, LH
main61602-07900i199409-199709
sub61602-07902
main61602-07902i199709
61621CTROUGH, LUGGAGE COMPARTMENT OPENING, RH
main61621-07901i199409-199709
main61621-07902i199709
61622CTROUGH, LUGGAGE COMPARTMENT OPENING, LH
main61622-07901i199409-199709
main61622-07902i199709
61625GEXTENSION, QUARTER PANEL, REAR RH
main61625-07010i199409
61626GEXTENSION, QUARTER PANEL, REAR LH
main61626-07010i199409
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
main61631-07010i199409
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
main61632-07010i199409
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
main61607-07900i199409-199608
sub61607-07902
sub90950-01872
main61607-07901i199409-199608
W(4-ABS)
sub61607-07903
sub90950-01872
main61607-07902i199608-199709
main61607-07903i199608
W(4-ABS)
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
main61608-07900i199409-199608
sub61608-07902
sub90950-01872
main61608-07901i199409-199608
W(4-ABS)
sub61608-07903
sub90950-01872
main61608-07902i199608-199709
main61608-07903i199608
W(4-ABS)
61667DSEAL, QUARTER PANEL
main61667-AC010i199409
61673BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER RH
main61674-41010i199709
61674BREINFORCEMENT, QUARTER WHEEL HOUSE, INNER LH
main61674-41010i199709
61731BPANEL, ROOF SIDE, INNER RH
main61731-07010i199409-199709
sub61731-07020
main61731-07020i199709
sub61731-07021
61732BPANEL, ROOF SIDE, INNER LH
main61732-07010i199409-199709
sub61732-07020
main61732-07020i199709
sub61732-07021
61735APANEL, ROOF SIDE, INNER REAR RH
main61735-07011i199409-199709
sub61735-07020
main61735-07020i199709
61736APANEL, ROOF SIDE, INNER REAR LH
main61736-07011i199409-199709
sub61736-07020
main61736-07020i199709
61747BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH
main61747-41010i199409
61748CBRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH
main61748-41010i199409
61815BCOVER, ROOF SIDE, INNER UPPER RH
main61815-AC010i199409-199601
sub61815-AC020
main61815-AC020i199601
61816BCOVER, ROOF SIDE, INNER UPPER LH
main61815-AC020i199601
main61816-AC010i199409-199601
sub61815-AC010
61826APLATE, NOISE CONTROL, NO.3
main61826-06010i199409
64213EXTENSION, PACKAGE TRAY STRAINER, RH
main64213-07010i199409-199709
sub64213-07020
main64213-07020i199709
64214EXTENSION, PACKAGE TRAY STRAINER, LH
main64214-07010i199409-199709
sub64214-07020
main64214-07020i199709
64312BRACKET, PACKAGE TRAY, RH
main64301-07010i199409
64313BRACKET, PACKAGE TRAY, LH
main64302-07010i199409
64314AREINFORCEMENT, PACKAGE TRAY BRACKET, RH
main64314-07010i199409-199709
sub64314-07020
main64314-07020i199709
64315AREINFORCEMENT, PACKAGE TRAY BRACKET, LH
main64315-07010i199409-199709
sub64315-07020
main64315-07020i199709
9008011247
main90080-11247
9008054019
main90080-54019
9008195003
main90081-95003
9017908086
main90179-08086
9018906157
main90189-06157
9033325001
main90333-25001
9033330008
main90333-30008
9033348001
main90333-48001
904670500401
main90467-0500401
9095001025
main90950-01025
9095001056
main90950-01056
9095001060
main90950-01060
9095001580
main90950-01580
9095001871
main90950-01871
9095001872
main90950-01872
9165160816
main91651-60816
9166540616
main91665-40616

72 parts on this diagram · 1 diagram in section
