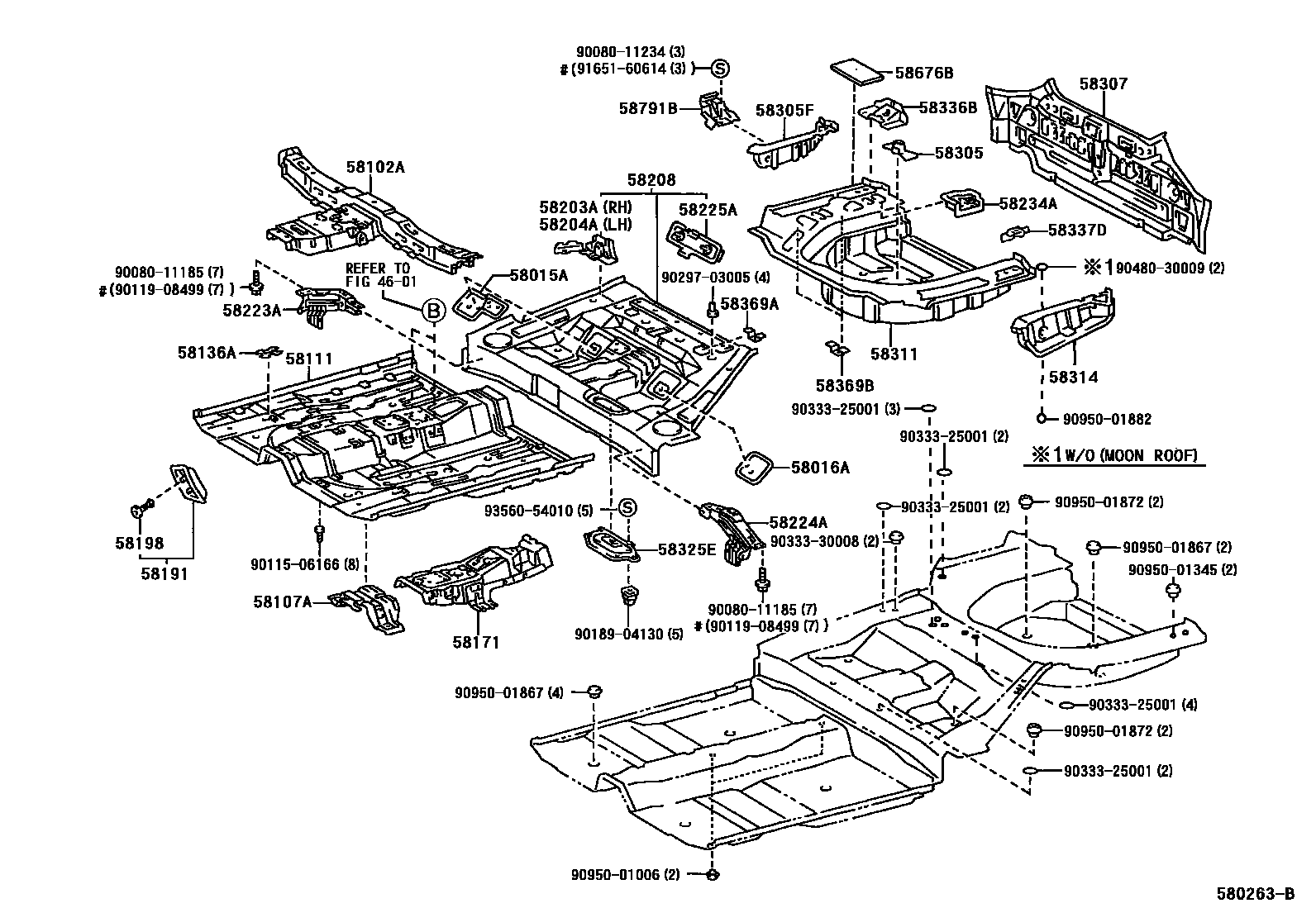

FLOOR PAN & LOWER BACK PANEL

4601

58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH

main58015-06010iMCX10199709

main58015-33010iMCX10199409-199709

58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH

main58015-06010iMCX10199612

main58016-33010iMCX10199409-199612

58102AREINFORCEMENT SUB-ASSY, FRONT FLOOR

main58102-07010iMCX10..4HC199409-199709

sub58102-07030

main58102-07020iMCX10..4FC199409-199709

sub58102-07040

main58102-07030iMCX10..4HC199709

main58102-07040iMCX10..4FC199709

58107ABRACKET SUB-ASSY, CLAMP SET, NO.1

main58107-07010iMCX10199409

58111PAN, FRONT FLOOR

main58111-07010iMCX10199409-199608

sub58111-07011

main58111-07011iMCX10199608-199709

sub58111-07020

main58111-07020iMCX10199709-199807

main58111-07021iMCX10199807

58136ACOVER, FRONT FLOOR SERVICE HOLE

main58136-33010iMCX10199409

58171REINFORCEMENT, PARKING BRAKE BASE

main58171-07010iMCX10..4HC199409

main58171-07020iMCX10..4FC199409

58191FOOTREST, FRONT FLOOR

main58192-06010iMCX10199409

58198CLIP, FOOTREST

main58198-06010iMCX10199409

58203AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH

main58213-33010iMCX10199409

58204AREINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH

main58214-33010iMCX10199409

58208PAN, CENTER FLOOR

main58211-06050iMCX10199409-199709

main58211-07020iMCX10199709-199808

sub58211-07021

sub90950-01179

main58211-07021iMCX10199808

58223AREINFORCEMENT, FLOOR SIDE PANEL, RH

main58223-33010iMCX10199409

58224AREINFORCEMENT, FLOOR SIDE PANEL, LH

main58224-33010iMCX10199409

58225ABRACKET, CENTER MOUNTING

main58225-07010iMCX10199409-199709

main58225-41010iMCX10199709

58234ABRACKET, EXHAUST PIPE MOUNTING, INNER

main58234-41010iMCX10199409-199611

58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP

main58351-33010iMCX10199409

58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH

main58305-06010iMCX10199409-199709

main58305-07010iMCX10199709

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-07010iMCX10199409-199709

main58307-07020iMCX10199709

58311PAN, REAR FLOOR

main58311-06010iMCX10199409-199709

main58311-06040iMCX10..CND199709

main58311-33010iMCX10199409-199605

W(7 SPEAKER)

sub58311-06010

58314PANEL, REAR FLOOR SIDE, LH

main58314-06010iMCX10199409-199709

main58314-07010iMCX10199709

58325ECOVER, REAR FLOOR SERVICE HOLE

main58325-06010iMCX10199409-199608

sub58325-06011

main58325-06011iMCX10199608-199709

main58325-06020iMCX10199709

58336BREINFORCEMENT, REAR FLOOR PAN

main58336-33010iMCX10199709

58337DREINFORCEMENT, REAR FLOOR PAN, LH

main58337-33020iMCX10..CND199709

58369ABRACKET, FUEL TUBE, NO.3

main58369-06010iMCX10199409

58369BBRACKET, FUEL TUBE, NO.3

main58369-06010iMCX10199409-199709

58676BPAD, REAR FLOOR SILENCER, NO.1 RH

main58676-33010iMCX10199409

58791BCARRIER, JACK

main58791-32060iMCX10199409

9008011185

main90080-11185

9008011234

main90080-11234

9011506166

main90115-06166

9011908499

main90119-08499

9018904130

main90189-04130

9029703005

main90297-03005

9033325001

main90333-25001

9033330008

main90333-30008

9048030009

main90480-30009

9095001006

main90950-01006

9095001345

main90950-01345

9095001867

main90950-01867

9095001872

main90950-01872

9095001882

main90950-01882

9165160614

main91651-60614

9356054010

main93560-54010

45 parts on this diagram · 1 diagram in section
