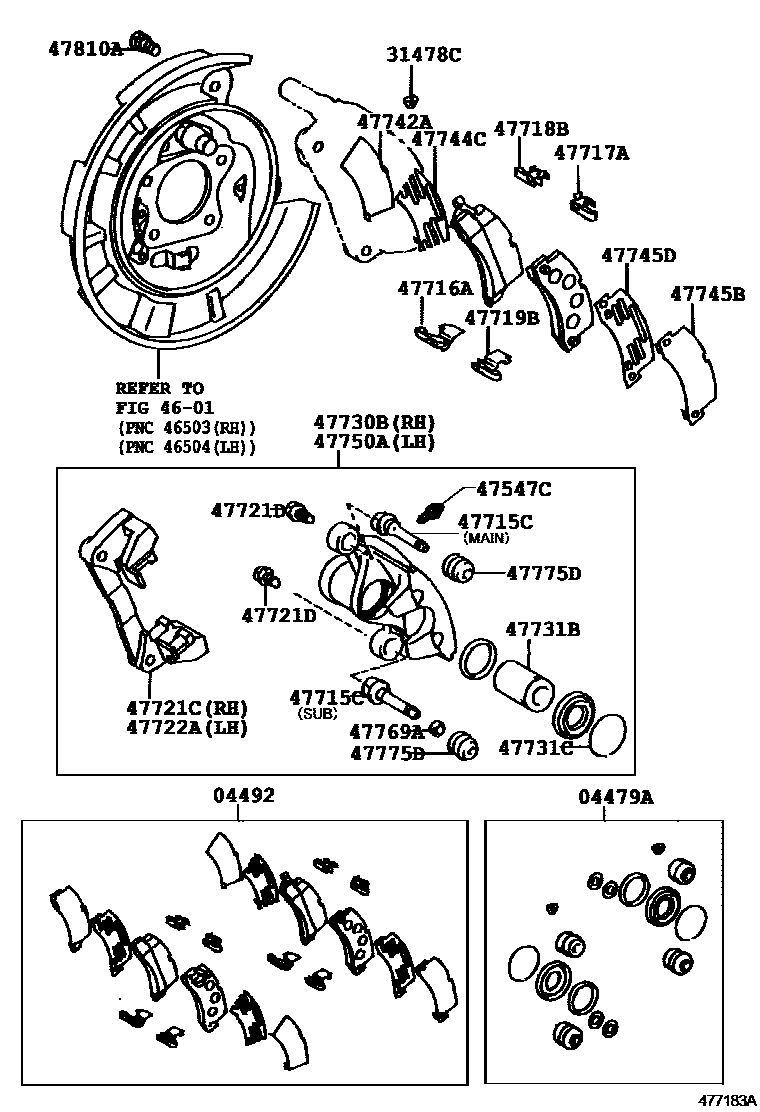

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-07020iMCX10199409-199609

sub04479-07021

main04479-07021iMCX10199609

04492PAD KIT, DISC BRAKE, REAR

main04492-07010iMCX10199409-199505

sub04466-07010

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iMCX10199409

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-06010iMCX10199608

main47547-20010iMCX10199409-199608

47715CPIN, CYLINDER SLIDE(FOR REAR DISC BRAKE)

main47715-07010iMCX10199409-199510

main47715-07010iMCX10199510

SUB

main47715-07020iMCX10199510

MAIN

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-07010iMCX10199608

sub47716-07011

main47716-41010iMCX10199409-199608

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-07010iMCX10199608

sub47717-07011

main47717-41010iMCX10199409-199608

47718BPLATE, PAD SUPPORT, NO.3(FOR REAR DISK BRAKE)

main47718-07010iMCX10199608

main47718-41010iMCX10199409-199608

47719BPLATE, PAD SUPPORT, NO.4(FOR REAR DISK BRAKE)

main47719-07010iMCX10199608

main47719-41010iMCX10199409-199608

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-07020iMCX10199409-199602

main47721-07021iMCX10199602

sub47721-07022

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90080-10043iMCX10199409

*8-1.25PX23-20.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47722-07020iMCX10199409-199602

main47722-07021iMCX10199602

sub47722-07022

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-07030iMCX10199409-199602

main47730-07031iMCX10199602

sub47730-07032

47731BPISTON, REAR DISC BRAKE

main47731-07030iMCX10199409

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90080-52066iMCX10199409

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-07010iMCX10199409-199709

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-07020iMCX10199409-199709

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47744-07030iMCX10199409-199709

47745DSHIM, ANTI-SQUEAL, NO.4(FOR REAR DISC BRAKE)

main47742-07020iMCX10199409-199709

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-07030iMCX10199409-199602

main47750-07031iMCX10199602

sub47750-07032

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-07020iMCX10199608

main47769-41010iMCX10199409-199608

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47775-07020iMCX10199608

main47775-41010iMCX10199409-199608

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iMCX10199409

24 parts on this diagram · 2 diagrams in section
