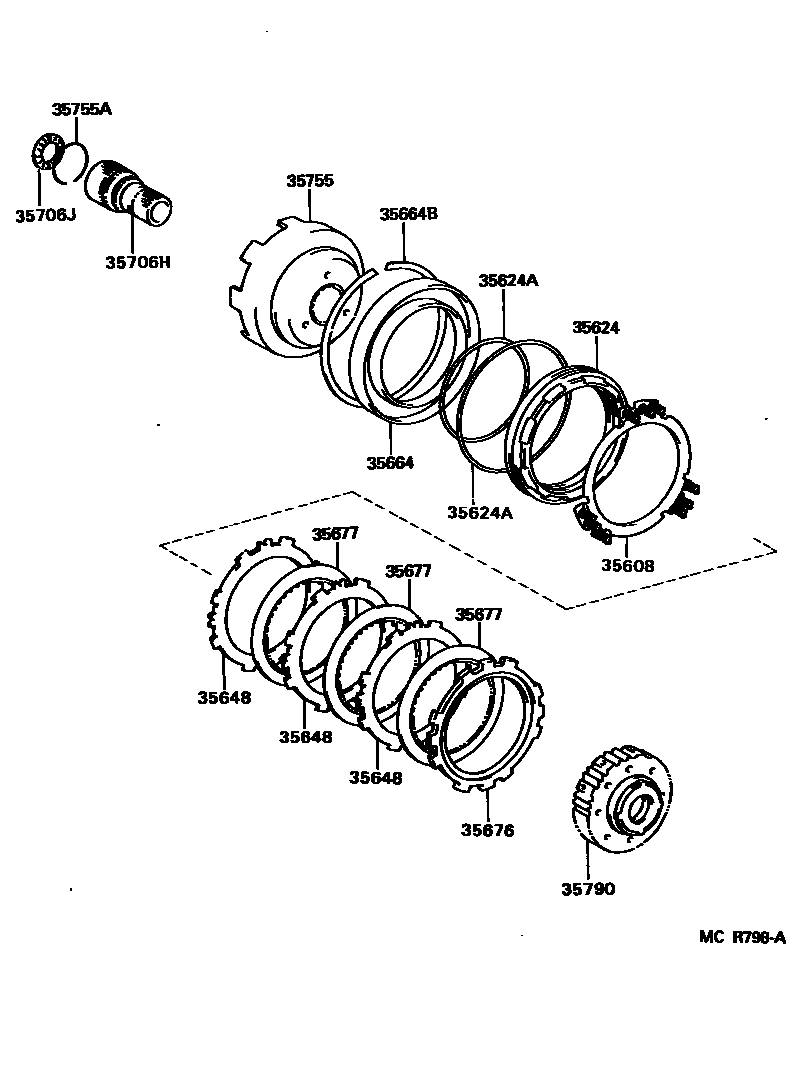

CENTER SUPPORT & PLANETARY SUN GEAR (ATM)

35608SPRING SUB-ASSY, 2ND BRAKE PISTON RETURN

main35608-33010iMCX10199409

35624PISTON, 2ND BRAKE

main35624-33010iMCX10199409

35624ARING, O (FOR 2ND BRAKE PISTON)

main90301-99021iMCX10199409

INNER

main90301-99023iMCX10199409

OUTER

35648PLATE, CLUTCH (FOR 2ND BRAKE)

main35648-33010iMCX10199409

T=1.8

35664CYLINDER, 2ND BRAKE

main35664-32010iMCX10199409

35664BRING, HOLE SNAP (FOR 2ND BRAKE CYLINDER)

main90521-99013iMCX10199409

35676FLANGE, BRAKE (FOR 2ND BRAKE)

main35676-33010iMCX10199409

T=3.6

35677DISC, CLUTCH (FOR 2ND BRAKE)

main35677-33050iMCX10199409

35706HGEAR SUB-ASSY, PLANETARY SUN

main35706-33011iMCX10199409-199707

sub35706-33012

main35706-33012iMCX10199707

35706JBEARING, THRUST NEEDLE ROLLER (FOR PLANETARY SUN GEAR)

main90374-30008iMCX10199409-199609

sub90374-30014

main90374-30014iMCX10199609

35755DRUM, SUN GEAR INPUT

main35755-33010iMCX10199409

35755ARING, SHAFT SNAP (FOR SUN GEAR INPUT DRUM)

main90520-36017iMCX10199409

T=1.4,ID=36

35790CLUTCH ASSY, 1 WAY

main35790-33010iMCX10199409

13 parts on this diagram · 1 diagram in section
