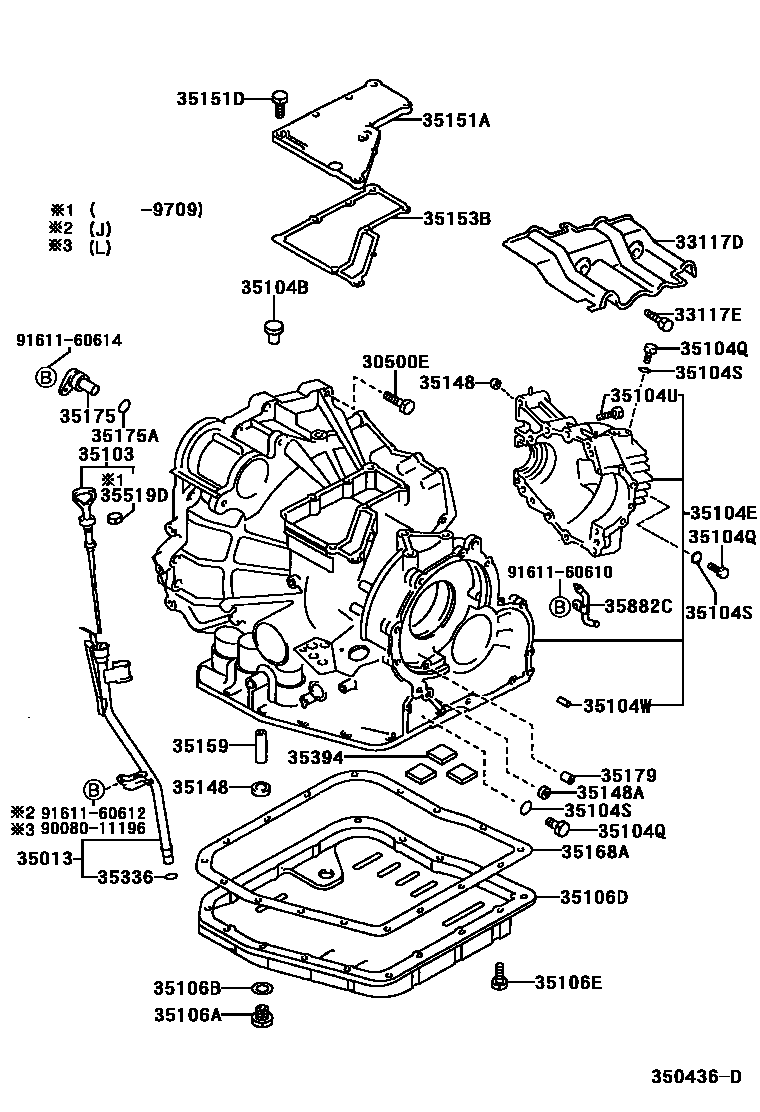

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*12-1.25PX55-30,(L)
*12-1.25PX65-30,(L)
*12-1.25PX55-30,(J)
*12-1.25PX55-30
*12-1.25PX65-30,(J)
*12-1.25PX65-30
*10-1.25PX55-30
33117DPROTECTOR, AUTOMATIC TRANSMISSION CASE
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35104BPLUG, BREATHER, NO.1 (ATM)
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104UBOLT (FOR TRANSAXLE CASE)
*10-1.25PX65-30
*10-1.25PX75-30
*10-1.25PX100-30
35104WPIN, STRAIGHT (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35148GASKET, GOVERNOR APPLY, NO.1
35148AGASKET, GOVERNOR APPLY, NO.2
35151DBOLT (FOR TRANSAXLE CASE UPPER COVER)
*10-1.25PX30-22
35153BGASKET, TRANSAXLE CASE UPPER COVER
35159GASKET, BRAKE DRUM
35175CAP, TRANSAXLE CASE, NO.2
35175ARING, O (FOR TRANSAXLE CASE CAP)
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
35519DLABEL, AUTOMATIC TRANSMISSION INFORMATION
35882CTUBE, DIFFERENTIAL GEAR LUBE APPLY
9008011196
main90080-11196
9161160610
main91611-60610
9161160612
main91611-60612
9161160614
main91611-60614
33 parts on this diagram · 1 diagram in section
