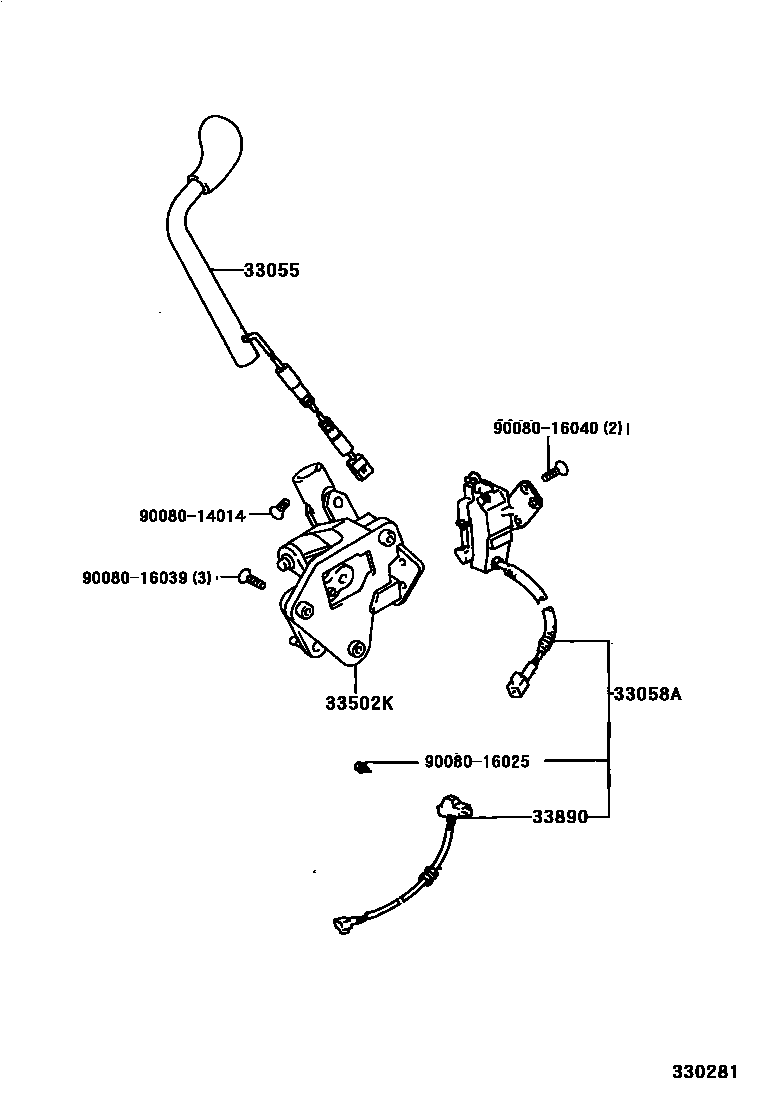

CONTROL SHAFT & CROSSSHAFT

0001 1 0002 1

33055LEVER SUB-ASSY, COLUMN SHIFT

main33055-41011iMCX10..4HC199409-199709

sub33055-41012

main33055-41012iMCX10..4HC199709

33058ABRACKET SUB-ASSY, SHIFT LOCK SOLENOID

main33058-07020iMCX10..4HC199409-199608

sub33058-07021

main33058-07021iMCX10..4HC199608

33502KHOUSING SUB-ASSY, SHIFT LEVER (FOR COLUMN SHIFT)

main33502-07050iMCX10..4HC199409

33890GUIDE ASSY, SHIFT LOCK SWITCH

main33890-07010iMCX10..4HC199409

9008014014

main90080-14014

9008016025

main90080-16025

9008016039

main90080-16039

9008016040

main90080-16040

8 parts on this diagram · 2 diagrams in section
