SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM RELAY BLOCK 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1CONSOLE BOX 0006 1STEERING 0007 1SEAT 0008 1DOOR & ROOF 0009 1FLOOR & LUGGAGE

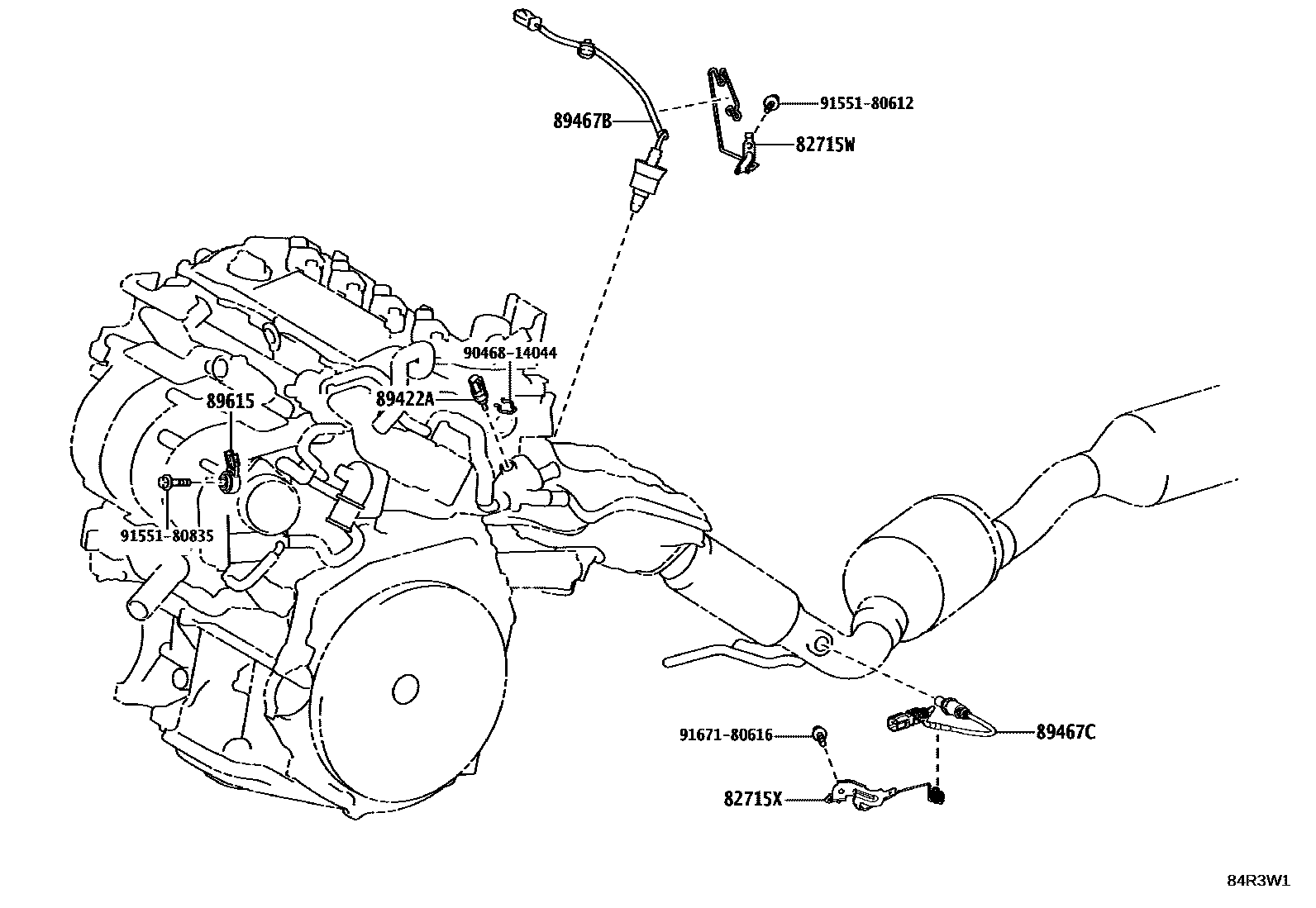

82715WBRACKET, WIRING HARNESS CLAMP

main82715-33V10iAZSH38202406

82715XBRACKET, WIRING HARNESS CLAMP, NO.2

main82715-42K60iAZSH38202406

89422ASENSOR, WATER TEMPERATURE

main89422-33040iAZSH38202406

89467BSENSOR, AIR FUEL RATIO

main89467-33310iAZSH38202406

89467CSENSOR, AIR FUEL RATIO, NO.2

main89467-42170iAZSH38202406

89615SENSOR, KNOCK CONTROL

main89615-20090iAZSH38202406

9046814044

main90468-14044

9155180612

main91551-80612

9155180835

main91551-80835

9167180616

main91671-80616

10 parts on this diagram · 9 diagrams in section
