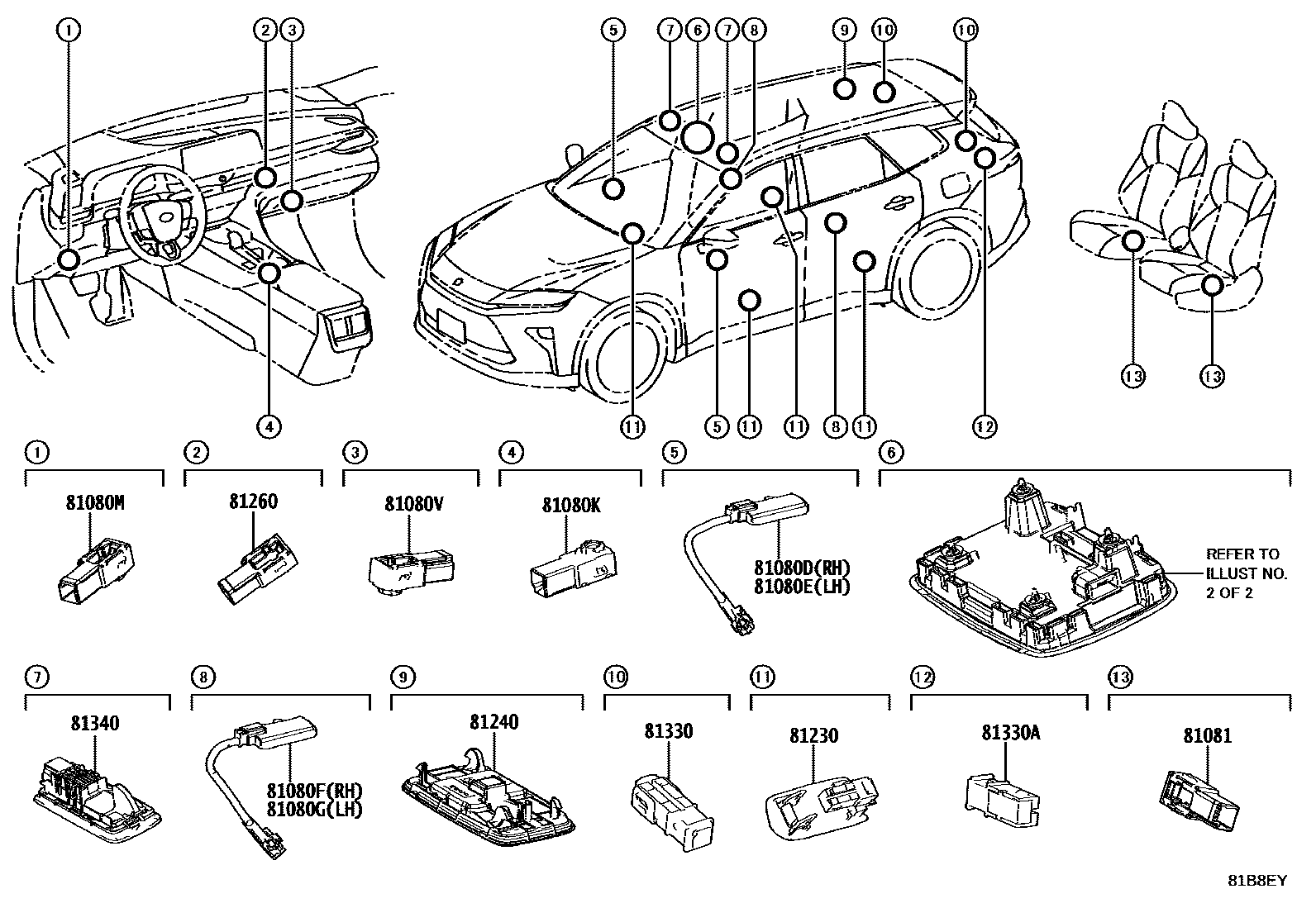

INTERIOR LAMP

81080DLAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, RH

81080ELAMP ASSY, FRONT DOOR INSIDE HANDLE ILLUMINATION, LH

81080FLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, RH

81080GLAMP ASSY, REAR DOOR INSIDE HANDLE ILLUMINATION, LH

81080KLAMP ASSY, CONSOLE BOX ILLUMINATION

81080MLAMP ASSY, INTERIOR ILLUMINATION, NO.1

81080VLAMP ASSY, INTERIOR ILLUMINATION, NO.2

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

81230LAMP ASSY, COURTESY

81240LAMP ASSY, ROOM, NO.1

BLACK,TRIM2#,4#

81260LAMP ASSY, GLOVE BOX

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

81330ALAMP ASSY, LUGGAGE COMPARTMENT, NO.2

81340LAMP ASSY, VANITY

14 parts on this diagram · 2 diagrams in section
