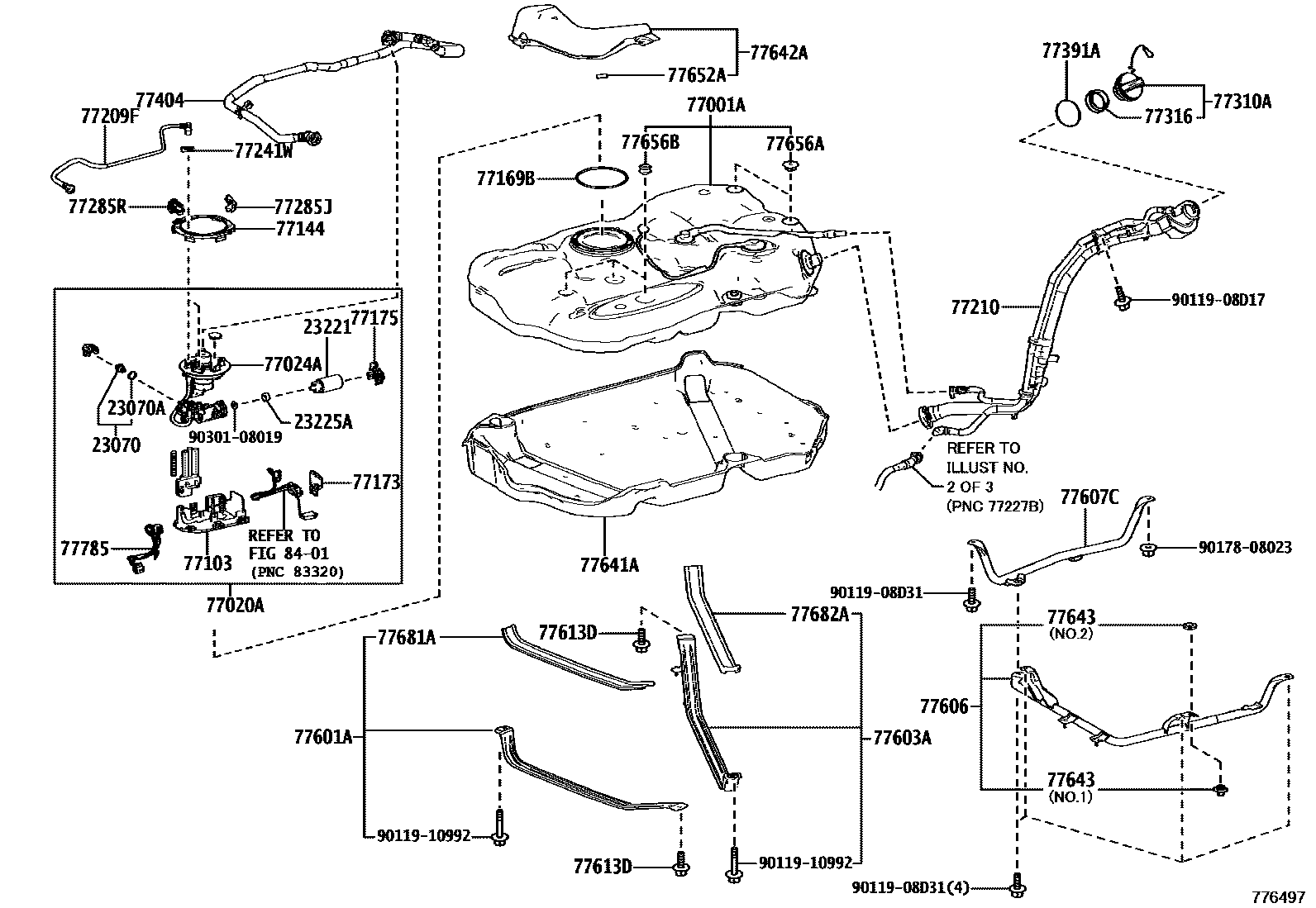

FUEL TANK & TUBE
23070VALVE ASSY, FUEL MAIN
23070ARING, O, NO.1(FOR FUEL MAIN VALVE)
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
77001ATANK SUB-ASSY, FUEL
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77103SUB-TANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169BGASKET, FUEL SUCTION TUBE SET, NO.1
77173BRACKET, FUEL GAGE
77175SUPPORT, FUEL SUCTION, NO.2
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77241WCLIP, TUBE JOINT
77285JCLAMP, FUEL TUBE, NO.1
77285RCLAMP, FUEL TUBE, NO.1
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77601ABAND SUB-ASSY, FUEL TANK, NO.1
77603ABAND SUB-ASSY, FUEL TANK, NO.2
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77607CPROTECTOR SUB-ASSY, FUEL TANK, NO.2
77613DBOLT, FUEL TANK BAND SET, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77642APROTECTOR, FUEL TANK, NO.2
77643RETAINER, FUEL TANK PROTECTOR
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77652ACUSHION, FUEL TANK, NO.2
77656ACUSHION, FUEL TANK, NO.4
77656BCUSHION, FUEL TANK, NO.6
77681ASEAT, FUEL TANK BAND
77682ASEAT, FUEL TANK BAND, NO.2
77785HARNESS, FUEL PUMP
8401
9011908D17
main90119-08D17
9011908D31
main90119-08D31
9011910992
main90119-10992
9017808023
main90178-08023
9030108019
main90301-08019
41 parts on this diagram · 3 diagrams in section
