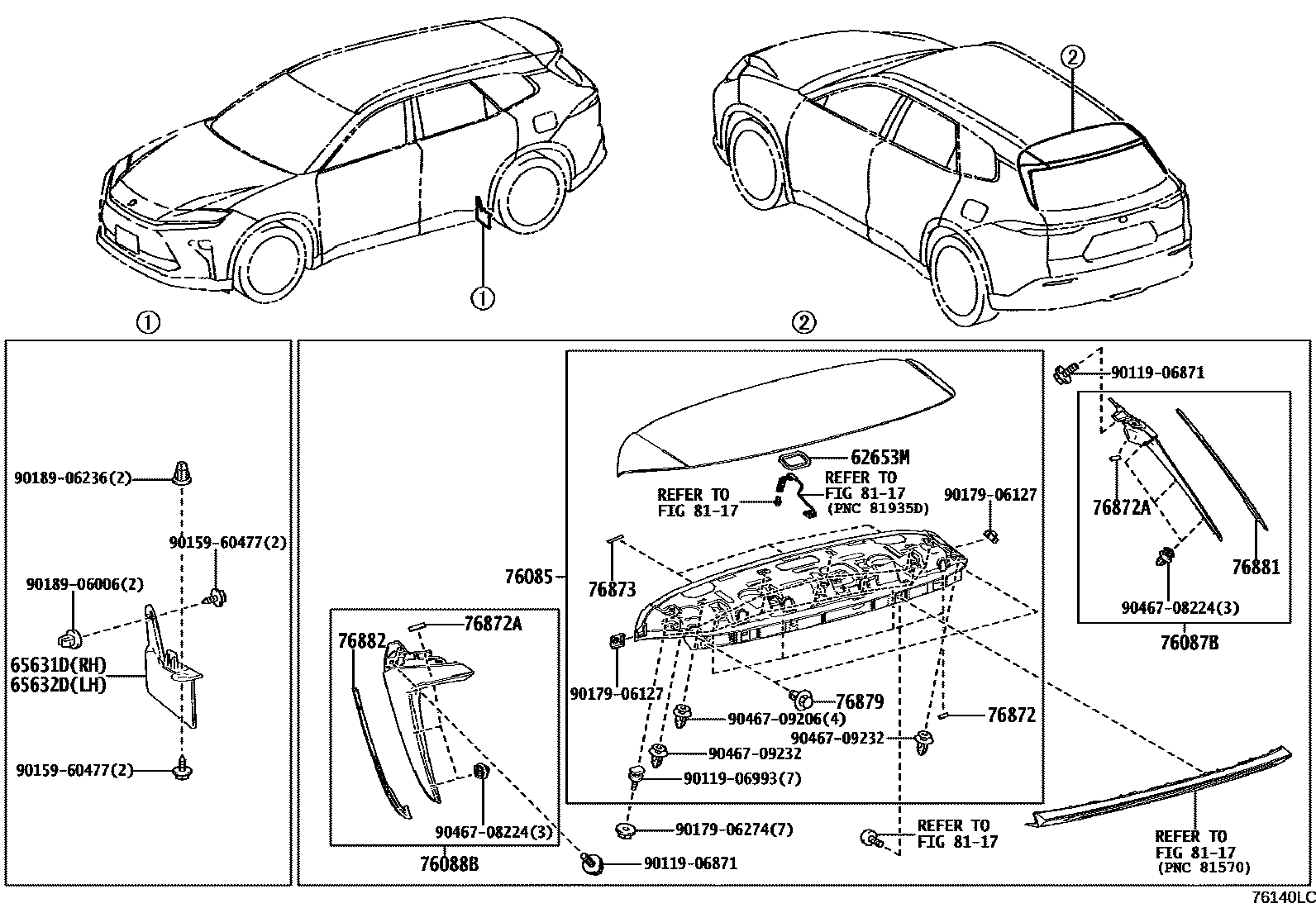

MUDGUARD & SPOILER
62653MPACKING
65631DPLATE, REAR WHEEL HOUSE, FRONT RH
65632DPLATE, REAR WHEEL HOUSE, FRONT LH
76085SPOILER SUB-ASSY, REAR
PAINT REQ.
76087BSPOILER SUB-ASSY, REAR SIDE, RH
76088BSPOILER SUB-ASSY, REAR SIDE, LH
76872PROTECTOR, REAR SPOILER, NO.1
76872APROTECTOR, REAR SPOILER, NO.1
76873PROTECTOR, REAR SPOILER, NO.2
76879CLIP, REAR SPOILER, NO.1
76881PROTECTOR, REAR SPOILER SIDE, NO.1 RH
76882PROTECTOR, REAR SPOILER SIDE, NO.1 LH
8117
9011906871
main90119-06871
9011906993
main90119-06993
9015960477
main90159-60477
9017906127
main90179-06127
9017906274
main90179-06274
9018906006
main90189-06006
9018906236
main90189-06236
9046708224
main90467-08224
9046709206
main90467-09206
9046709232
main90467-09232
23 parts on this diagram · 1 diagram in section
